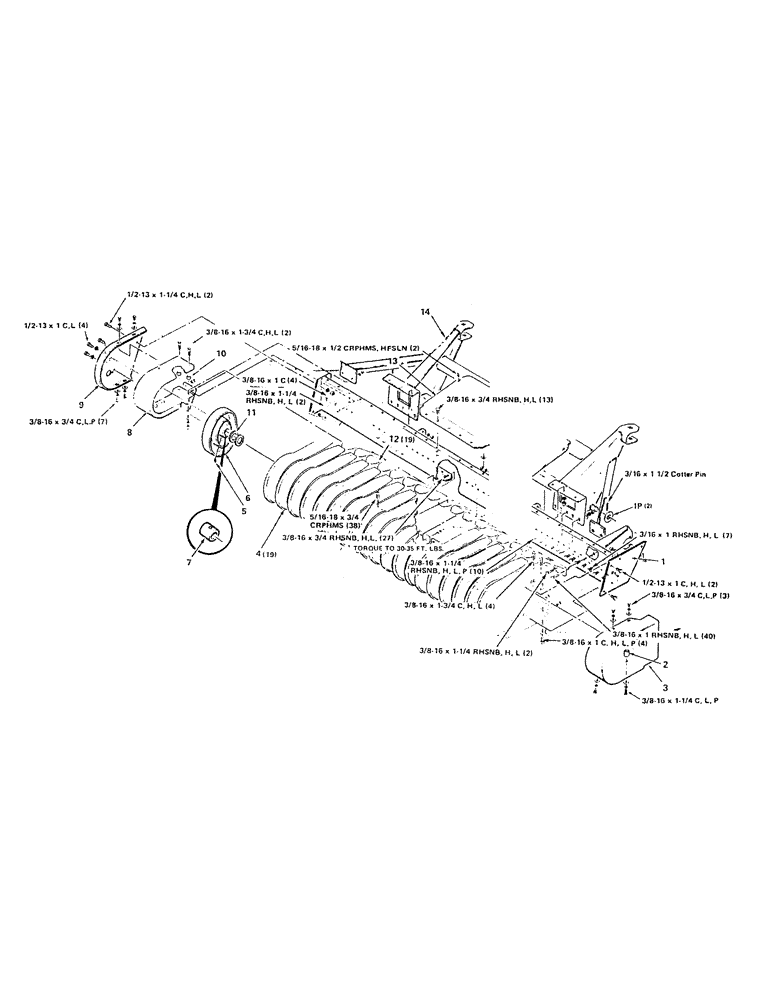

Запчасти Case IH 6 (12) - HEAD ASSEMBLY, PICKUP

1

6225916

CHANNEL

- mounting, wrapper

1шт.

2

158444

SPACER

- 9/16 long

1шт.

3

6183339

SHIELD

- left

1шт.

4

6288765

GUARD

WRAPPER - tine

19шт.

5

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1/4-28 x 90 zerk

1шт.

6

6225866

TRACK CHAIN

CAM TRACK

1шт.

7

6144422

BUSHING

1шт.

8

6288732

MOUNTING PARTS

WRAPPER - right

1шт.

9

6146799

COVER

- right

1шт.

10

6146492

SPACER

- 13/16 long

4шт.

11

52266

WASHER

1-1/4 x 14 gauge machinery bushing

2шт.

12

6225874

SUPPORT

- wrapper

19шт.

13

6183529

PANEL

- center

1шт.

14

6621338

SLIDE

FRAME - support arm

1шт.

703199

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C

7шт.

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

4шт.

702035

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

3/8-16 x 1-1/4

1шт.

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3/8-16 x 1-3/4 C

4шт.

703959

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1/2-13 x 1 C

4шт.

7701188

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 C

2шт.

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 x 3/4 RHSNB

40шт.

700047

BOLT

3/8-16 x 1 RHSNB

40шт.

700054

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 RHSNB

10шт.

700701068

SCREW

5/16-18 x 1/2 CRPHMS

2шт.

700701069

SCREW,Cross Pan Hd, 5/16"-18 x 3/4"

5/16-18 x 3/4 CRPHMS

38шт.

705574

WASHER,1 1/8" x 2" x .156", HDN

2шт.
