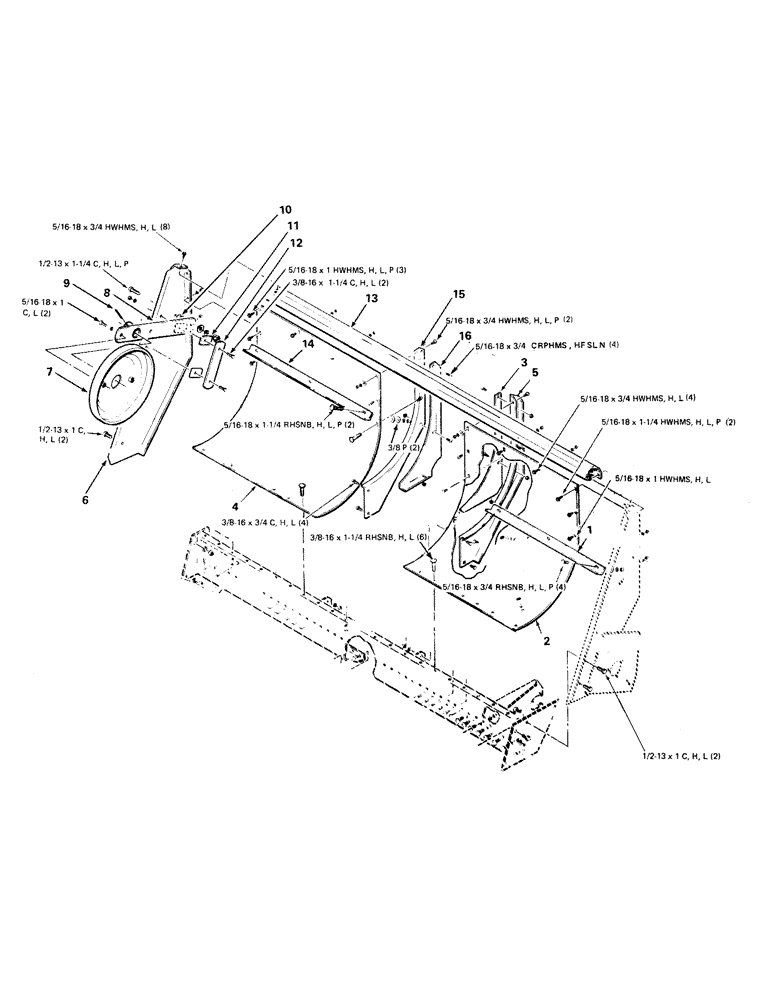

Запчасти Case IH 6 (10) - PICKUP AND FRAME ASSEMBLY

1

6572978

STRIPPER

- left, rear

1шт.

2

6183511

PANEL

- left, back

1шт.

3

6183602

DEFLECTOR

- left

1шт.

4

6183537

PANEL

- right, back

1шт.

5

6146674

SUPPORT

- left

1шт.

6

6147680

PANEL

- auger mounting, right

1шт.

7

6572937

RING

- grass

1шт.

8

6572952

ARM ASSY.

ARM - auger, right

1шт.

9

38-12424

LOCK PIN,3/8" x 1 1/2", Slotted

3/8 x 1-1/2 roll pin

1шт.

10

324269

BUSHING

SPACER, 3/8 long

1шт.

11

6157945

PAD

2шт.

12

6146500

STRAP

1шт.

13

6183503

COVER

- upper

1шт.

14

6572986

STRIPPER

- right, back

1шт.

15

6146682

SUPPORT

- right

1шт.

16

6183610

DEFLECTOR

- right

1шт.

703579

BOLT,Hex, 5/16" - 18 x 1", Gr 5, Full Thd

5/16-18 x 1 C

2шт.

703199

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 C

4шт.

702035

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

3/8-16 x 1-1/4 C

2шт.

703959

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1/2-13 x 1 C

2шт.

7701188

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 C

1шт.

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 RHSNB

2шт.

7700107

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/4", Gr 5, Full Thd

5/16-18 x 1-1/4 RHSNB

8шт.

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 x 3/4 HWHMS

8шт.

7883333

BOLT,Hex, 5/16" - 18 x 1", Gr 120M

5/16-18 x 1 HWHMS

4шт.

7883341

SCREW,Hex Washer, 5/16" - 18 x 1 1/4"

5/16-18 x 1-1/4 HWHMS

2шт.

700701069

SCREW,Cross Pan Hd, 5/16"-18 x 3/4"

5/16-18 x 3/4 CRPHMS

8шт.

700054

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 RHSNB

6шт.
