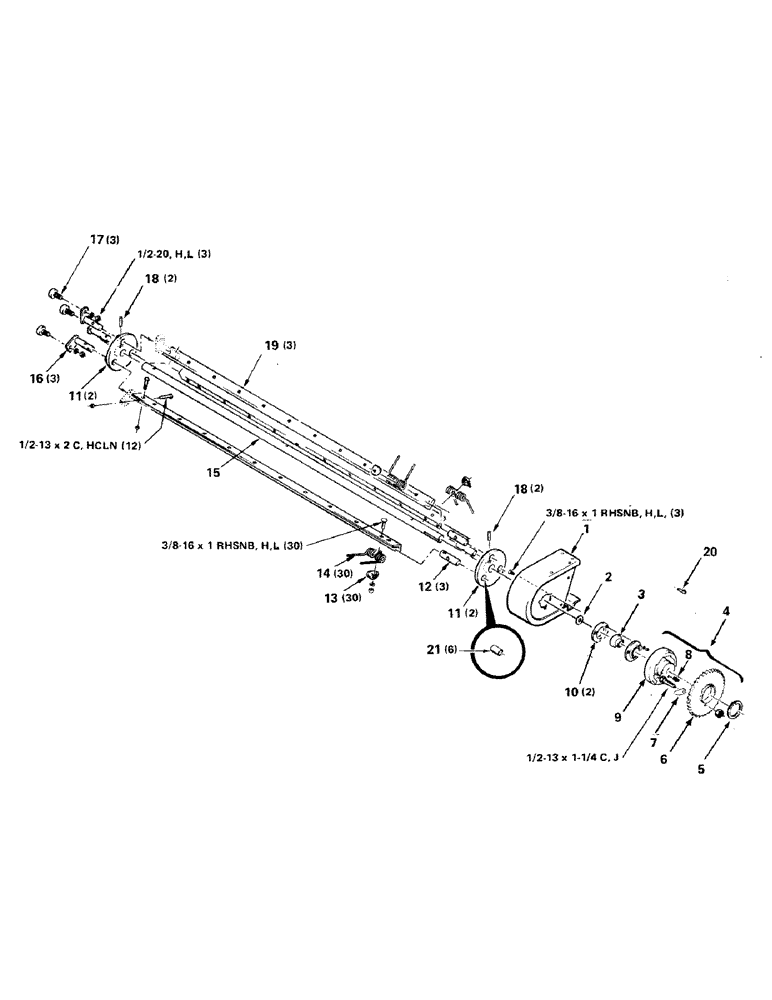

Запчасти Case IH 6 (08) - PICKUP ASSEMBLY, TINE

1

6288724

MOUNTING PARTS

MOUNTING - pickup, left

1шт.

2

52324

BUSHING

1-1/4 x 10 - gauge machinery bushing

1шт.

3

700708094

SPHERICAL BEARING,1.25" ID x 62 mm OD x 35.71 mm

BEARING - spherical

1шт.

4

6225734

SPROCKET ASSY.

SPROCKET AND RATCHET ASSEMBLY

1шт.

5

052027

RING, SNAP

SNAP RING - spirolox

1шт.

6

6225767

SPROCKET ASSY.

SPROCKET, 50-P, 36-tooth

1шт.

7

6225759

PAWL

1шт.

8

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

9

6225742

HUB

- ratchet

1шт.

10

50534

FLANGED BEARING

- bearing

2шт.

11

6141345

SUPPORT

BULKHEAD

2шт.

12

6233639

SHAFT

- stub

3шт.

13

261024

CLIP

- tine

30шт.

14

7751621

TINE

- double

30шт.

15

6171110

SHAFT

- drive

1шт.

16

6256382

CRANK

- tine

3шт.

17

700705612

CAM FOLLOWER

BEARING - cam follower

3шт.

18

38-32436

PIN,3/8" x 2 1/4", Coiled

3/8" x 2 1/4", Coiled

2шт.

19

6256424

ANGLE

- tine

3шт.

20

61952

KEY

1/4 x 1/4 x 1-3/4 gib key

1шт.

21

712869

BUSHING

BEARING - bronze

6шт.

7701188

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 C

1шт.

7701675

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2-13 x 2 C

12шт.

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 x 3/4 RHSNB

3шт.

700047

BOLT

3/8-16 x 1 RHSNB

30шт.

704288

LOCK NUT

1/2-13 x HCLN

12шт.
