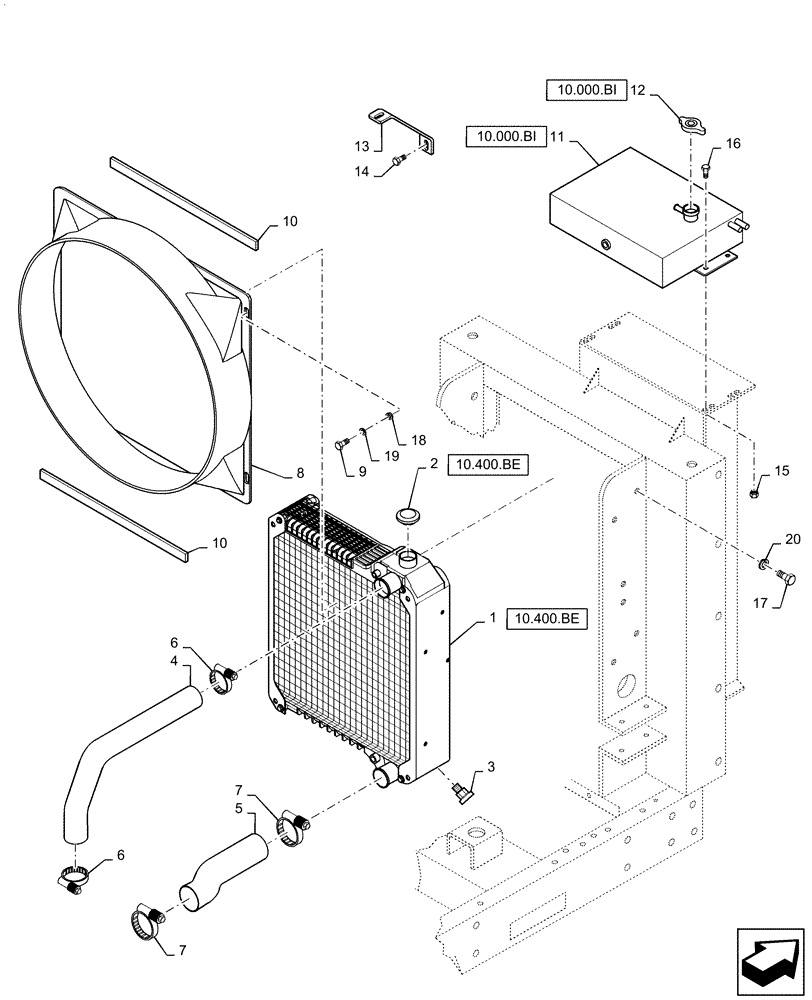

Запчасти Case IH RPZ85 (10.400.BF) - RADIATOR, DEAERATION TANK AND MOUNTING (10) - ENGINE

1

234876A2

RADIATOR

Engine Coolant

1шт.

2

253858A1

PLUG

Cap, Radiator, Non-Opening

1шт.

3

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

Drain

1шт.

4

307861A1

RADIATOR HOSE,300.00 mm

Upper

1шт.

5

296624A1

RADIATOR HOSE

Lower

1шт.

6

254026A1

HOSE CLAMP,44.45mm - 66.67mm

Adjustable, 1 3/4" - 2 5/8"

2шт.

7

L115548

CLAMP,57.15mm - 79.38mm

Adjustable, 2 1/4" - 3 1/8"

2шт.

8

186433A1

SHROUD

Fan

1шт.

9

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

10

190562A2

SEALING STRIP,30mm W x 546mm L x 12.7mm Thk

Adhesive

2шт.

11

47705958

TANK

Deaeration

1шт.

12

A170241

RADIATOR CAP

15 PSI, Deaeration Tank

1шт.

13

279618A1

BRACKET

Deaeration Tank Support

1шт.

14

523292

BOLT,1/4" - 20 x 1.03" OAL

Hole in Brace to Radiator Support

1шт.

15

247780

SERRATED NUT,Flg, USR, 3/8"-16

4шт.

16

9706726

BOLT,Hex Flg, 3/8" - 16 x 1"

4шт.

17

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

Radiator Support to Radiator

4шт.

18

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

4шт.

19

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

20

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

Lock

4шт.
