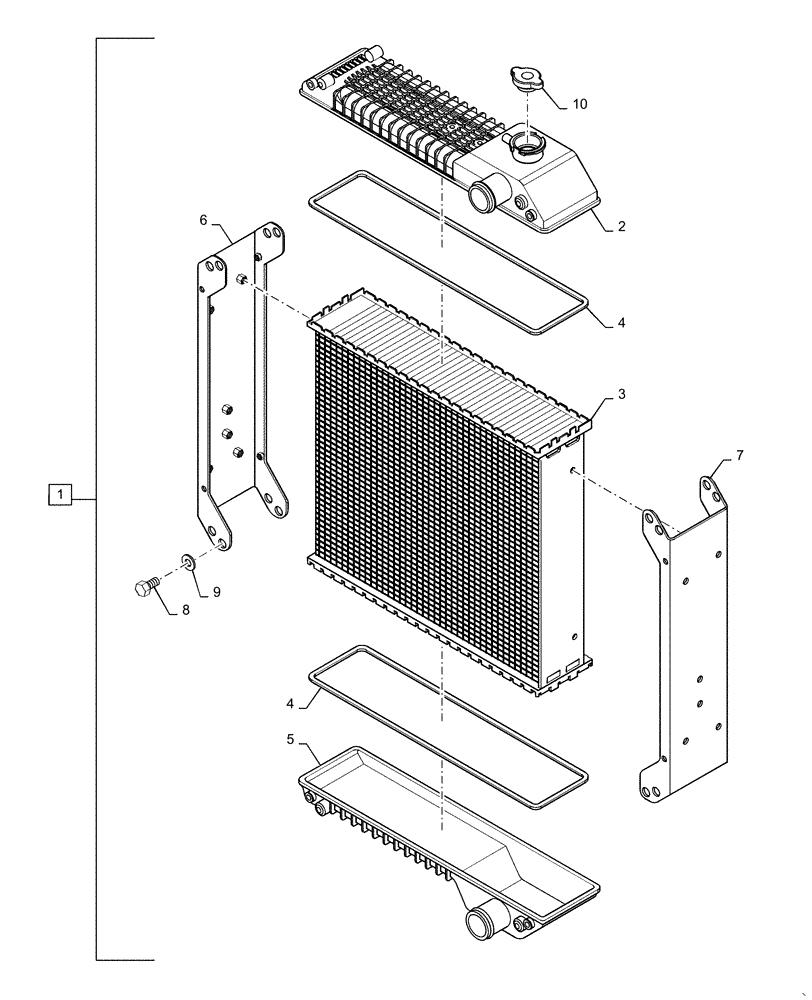

Запчасти Case IH RPZ85 (10.400.BE) - RADIATOR, ASSY (10) - ENGINE

1

234876A2

RADIATOR

Engine Coolant, 7 Fins per Inch, Incl 2 - 9

1шт.

2

175161A1

TANK

Tank, Upper, Incl with 1

1шт.

3

181148A1

CORE

Radiator, 4 Row, Incl with 1

1шт.

4

175163A1

GASKET,3.3mm Thk

Core, Upper & Lower, Incl with 1

2шт.

5

175162A1

RESERVOIR

Tank, Lower, Incl with 1

1шт.

6

175164A1

SUPPORT

LH, Radiator, Incl with 1

1шт.

7

175165A2

SUPPORT

RH, Radiator, Incl with 1

1шт.

8

16043024

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

Incl with 1

8шт.

9

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

Incl with 1

8шт.

10

253858A1

PLUG

Cap, Radiator, Non-Opening

1шт.
