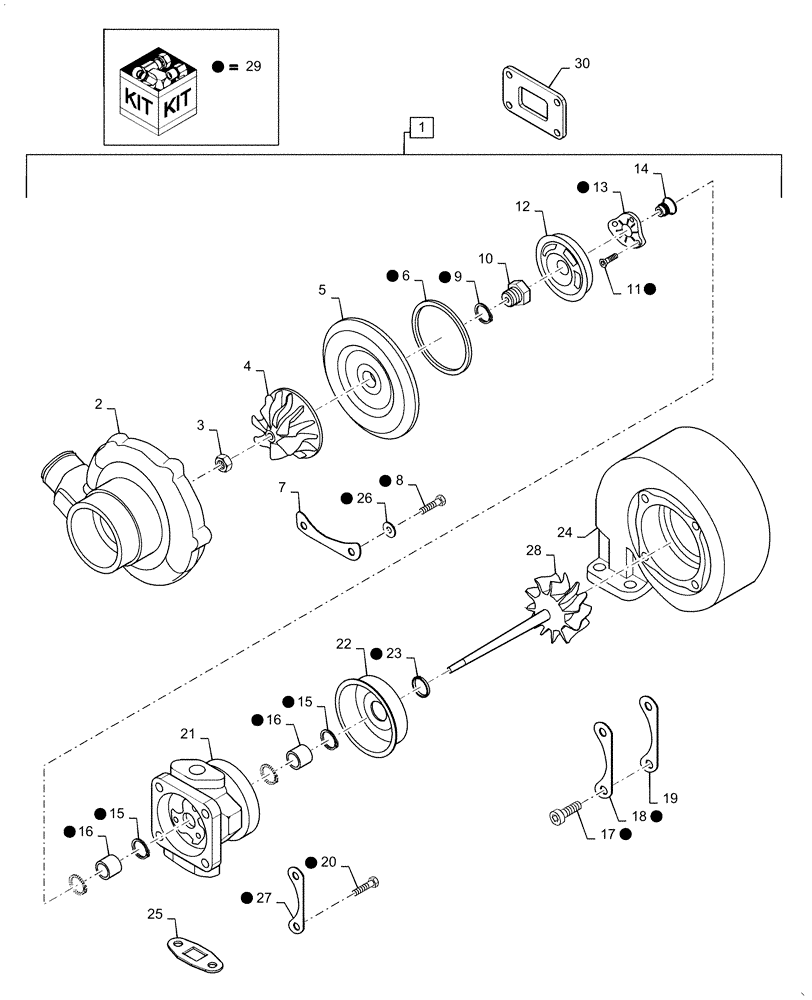

Запчасти Case IH RPZ85 (10.250.AC) - TURBOCHARGER (10) - ENGINE
№
Артикул
Название
Примечание
Количество
1
JR802290
REMAN-TURBOCHARGER
Engine, Incl 2 - 28
1шт.
1
JC535381
CORE-TURBOCHARGER
Return Part Number
1шт.
2
NSS
NOT SOLD SEPARAT
Compressor Housing, Incl with 1
1шт.
3
NSS
NOT SOLD SEPARAT
Hex Lock Nut, Incl with 1, 29
1шт.
4
NSS
NOT SOLD SEPARAT
Impeller, Incl with 1
1шт.
5
NSS
NOT SOLD SEPARAT
Compressor Diffuser, Incl with 1
1шт.
6
NSS
NOT SOLD SEPARAT
Diffuser Seal, Incl with 1, 29
1шт.
7
NSS
NOT SOLD SEPARAT
Diffuser Clamping Plate, Incl with 1
3шт.
8
NSS
NOT SOLD SEPARAT
Hex Lock Bolt and Washer Assembly, Incl with 1, 29
6шт.
9
NSS
NOT SOLD SEPARAT
Compressor Split Ring Seal, Incl with 1, 29
1шт.
10
NSS
NOT SOLD SEPARAT
Oil Slinger, Incl with 1
1шт.
11
NSS
NOT SOLD SEPARAT
Flat Torx Head Screw, Incl with 1, 29
3шт.
12
NSS
NOT SOLD SEPARAT
Oil Baffle, Incl with 1
1шт.
13
NSS
NOT SOLD SEPARAT
Thrust Bearing, Incl with 1, 29
1шт.
14
NSS
NOT SOLD SEPARAT
Thrust Collar, Incl with 1
1шт.
15
NSS
NOT SOLD SEPARAT
Snap Ring, Incl with 1, 29
4шт.
16
NSS
NOT SOLD SEPARAT
Impeller Shaft Bearing, Incl with 1, 29
2шт.
17
NSS
NOT SOLD SEPARAT
Cap Bolt, Incl with 1, 29
4шт.
18
NSS
NOT SOLD SEPARAT
Turbine Housing Lock Plate, Incl with 1, 29
2шт.
19
NSS
NOT SOLD SEPARAT
Turbine Housing Clamping Plate, Incl with 1
2шт.
20
NSS
NOT SOLD SEPARAT
Hex Lock Bolt and Washer Assembly, Incl with 1, 29
4шт.
21
NSS
NOT SOLD SEPARAT
Turbine Bearing Housing, Incl with 1
1шт.
22
NSS
NOT SOLD SEPARAT
Turbine Heat Shield, Incl with 1
1шт.
23
NSS
NOT SOLD SEPARAT
Turbine Piston Ring Seal, Incl with 1, 29
1шт.
24
NSS
NOT SOLD SEPARAT
Turbine Housing, Incl with 1
1шт.
26
NSS
NOT SOLD SEPARAT
Lock Washer, Incl with 1, 29
6шт.
27
NSS
NOT SOLD SEPARAT
Turbine Lock Plate, Incl with 1, 29
2шт.
28
NSS
NOT SOLD SEPARAT
Rotor Assembly, Incl with 1
1шт.
29
J4027309
PACKAGE, REPAIR
Turbocharger Overhaul, Incl 3, 6, 8 - 9, 11, 13, 15 - 18, 20, 23, 26 - 27
1шт.
Выбрано товаров: 31
