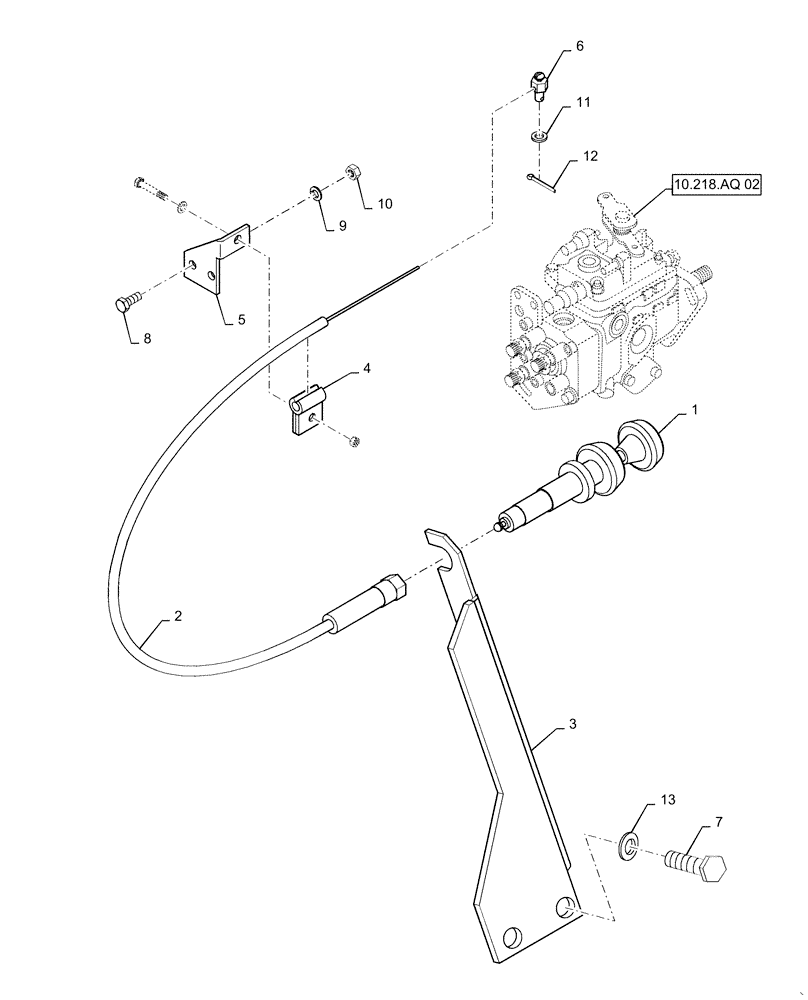

Запчасти Case IH RPZ85 (10.220.AA[02]) - THROTTLE CONTROL (10) - ENGINE

1

84421272

THROTTLE CONTROL

Handle

1шт.

2

47689138

CABLE

Cable, Throttle, 15.5"

1шт.

3

47689141

BRACKET

Bracket, Throttle Cable Mounting

1шт.

4

87441698

CLAMP

Cable Head

1шт.

5

87441695

BRACKET

Thottle Cable End Mounting

1шт.

6

309762A1

PIVOT

Throttle Cable

1шт.

7

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

2шт.

8

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

9

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

2шт.

10

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.

11

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

12

280250

COTTER PIN,3/32" OD x 3/4" L

1шт.

13

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

2шт.
