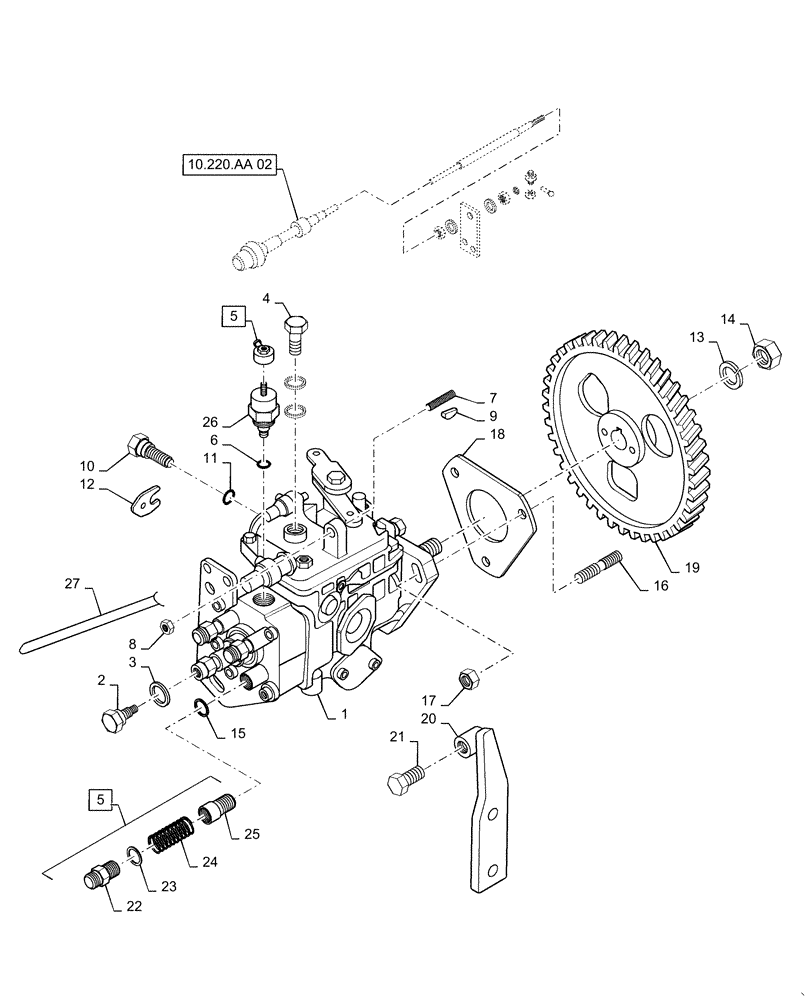

Запчасти Case IH RPZ85 (10.218.AQ[02]) - FUEL INJECTION PUMP AND DRIVE (10) - ENGINE

1

JR917528

REMAN-INJECTION PUMP

Fuel

1шт.

1

JC917528

CORE-INJECTION PUMP

Return Number

1шт.

2

79071308

SCREW

Vent

1шт.

3

190003098008

GASKET

Vent Screw

1шт.

4

J905465

BANJO BOLT

Overflow

1шт.

5

A77753

SOLENOID

Shut Down, 12 Volt, Incl 22 - 25

1шт.

6

9008558

RUBBER RING

Solenoid

1шт.

7

J904782

SET SCREW,Sl, M6 x 40mm, Half Dog Pt

Low Idle Stop

1шт.

8

J904783

NUT

Idle Screw

1шт.

9

10205820

WOODRUFF KEY,4mm x 6.50mm x 15.72mm

Pump Gear Retainer

1шт.

10

J904784

SCREW,Hex Skt, M10 x 1 x 35mm

Timing Lock

1шт.

11

J904785

O-RING,8 mm ID x 2.5 mm

TIming Lock Screw

1шт.

12

J904786

PLATE

Timing Lock

1шт.

13

80280248

LOCK WASHER

9/16"

1шт.

14

12164021

NUT,Thick Hex, M14, 1.50mm Pitch, 11.00mm High, Cl 10, ZND

1шт.

15

J903570

GASKET,5.4mm ID x 12mm OD x 1mm Thk

Delivery Valve

4шт.

16

J902501

STUD

Mounting, 8mm x 1.25mm x 48mm

3шт.

17

86507066

FLANGE NUT,M8 x 1.25, Cl 10

3шт.

18

87413428

GASKET,1.2mm Thk

Pump Mounting

1шт.

19

87590645

GEAR

Pump Drive

1шт.

20

J905313

LEVER

Fuel Pump Brace

1шт.

21

86511479

BOLT,Hex Flg, M8 x 20mm

3шт.

22

NSS

NOT SOLD SEPARAT

Fitting, Delivery Valve, Incl with 5

4шт.

23

NSS

NOT SOLD SEPARAT

Washer, Delivery Valve, Incl with 5

4шт.

24

NSS

NOT SOLD SEPARAT

Spring, Delivery Valve, Incl with 5

4шт.

25

NSS

NOT SOLD SEPARAT

Bypass Valve, Delivery, Incl with 5

4шт.

26

A187990

TERMINAL CONNECTOR,Tin, 0.254 - 1.520mm

Solenoid

1шт.

27

J918640AM

HOSE

Tube, Fuel Supply

1шт.
