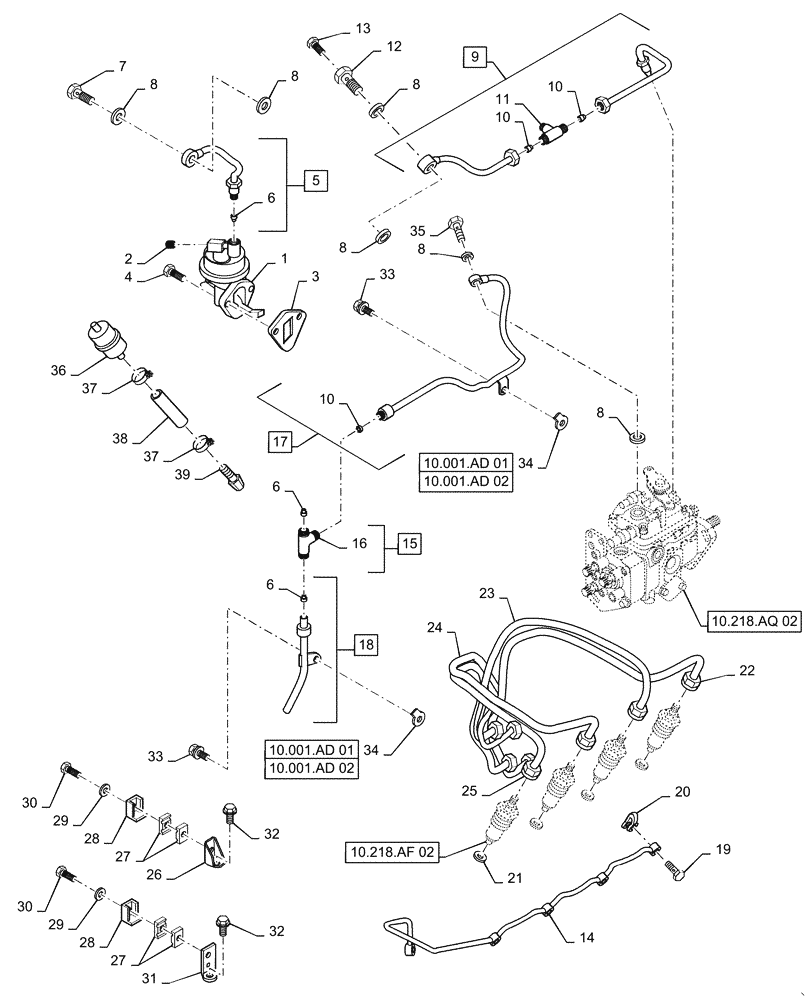

Запчасти Case IH RPZ85 (10.218.AE[02]) - FUEL INJECTOR, LINES (10) - ENGINE

1

84142216

FUEL PUMP

Lift

1шт.

2

9617020

PLUG,1/4" - 18 x 0.48"

1шт.

3

J939258

GASKET,1.21mm Thk

Fuel Lift Pump

1шт.

4

86511479

BOLT,Hex Flg, M8 x 20mm

2шт.

5

J905649

FUEL TUBE,8 mm OD x 233.5 mm L

Lift Pump to Filter, Incl 6

1шт.

6

222-101

SLEEVE,3/16" Tube

Incl with 5, 18

3шт.

7

J903035

BANJO BOLT

M12 x 1.5mm x 24mm

1шт.

8

87415913

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

Banjo Bolt

6шт.

9

J918640AM

HOSE

Fuel Supply Tube, Filter to Tee, Incl 10 - 11

1шт.

10

222-103

SLEEVE,5/16" Tube

Incl with 9, 17

3шт.

11

222-4

FITTING,9/16"-24, Flex Tube

Straight, Incl with 9

1шт.

12

J911446

BANJO BOLT,M12 x 1.5 x 24mm

1шт.

13

J939570AM

CAPTIVE WASHER SCREW

Special Vent Screw

1шт.

14

J909695

FUEL TUBE

Return Manifold

1шт.

15

222-121

TEE,3/16", Flex Tubing

Incl 16

1шт.

16

114612A1

TUBE NUT

Incl with 15

3шт.

17

J905699

FUEL TUBE,4.76 mm OD

Return, Tee to Pump, Incl 10

1шт.

18

J905692

FUEL TUBE

Return, Tee to Fuel Tank, Incl 6

1шт.

19

J905307

BANJO BOLT,M6 x 1 x 14.30mm

Drain, Special

4шт.

20

J903380

SEAL

Connector

4шт.

21

J900808

SEAL

Injector

4шт.

22

J903480

FUEL TUBE,21 mm ID x 64 mm OD

Injector, Number 1 Cylinder

1шт.

23

J903481

FUEL TUBE,21 mm ID x 64 mm OD

Injector, Number 2 Cylinder

1шт.

24

J903482

FUEL TUBE,21 mm ID x 64 mm OD

Injector, Number 3 Cylinder

1шт.

25

J903483

FUEL TUBE,21 mm ID x 64 mm OD

Injector, Number 4 Cylinder

1шт.

26

J930689

SUPPORT

Fuel Tube Bracket, Number 1 and 2 Cylinders

1шт.

27

J917746

CLAMP

Fuel Tube Isolator

4шт.

28

CASJ904711

SUPPORT

Fuel Tube Clamp

2шт.

29

86625261

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

30

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

2шт.

31

J930688

SUPPORT

Fuel Tube Bracket, Number 3 and 4 Cylinders

1шт.

32

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

Special

2шт.

33

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

34

J928759

SEALING WASHER

Cover Bolt

2шт.

35

J905465

BANJO BOLT

Overflow

1шт.

36

D139225

FILTER, FUEL

In-Line

1шт.

37

1348264C1

HOSE CLAMP

3/8"

2шт.

38

1348239C1

FUEL HOSE,9.52 mm ID x 78.00 mm, SAE 30R7

1шт.

Cut From Bulk Hose - 364357C2, 7620mm (300") Long

1шт.

39

86509027

FITTING,3/8" Hose x 1/4" NPTF, Barbed

Straight

1шт.
