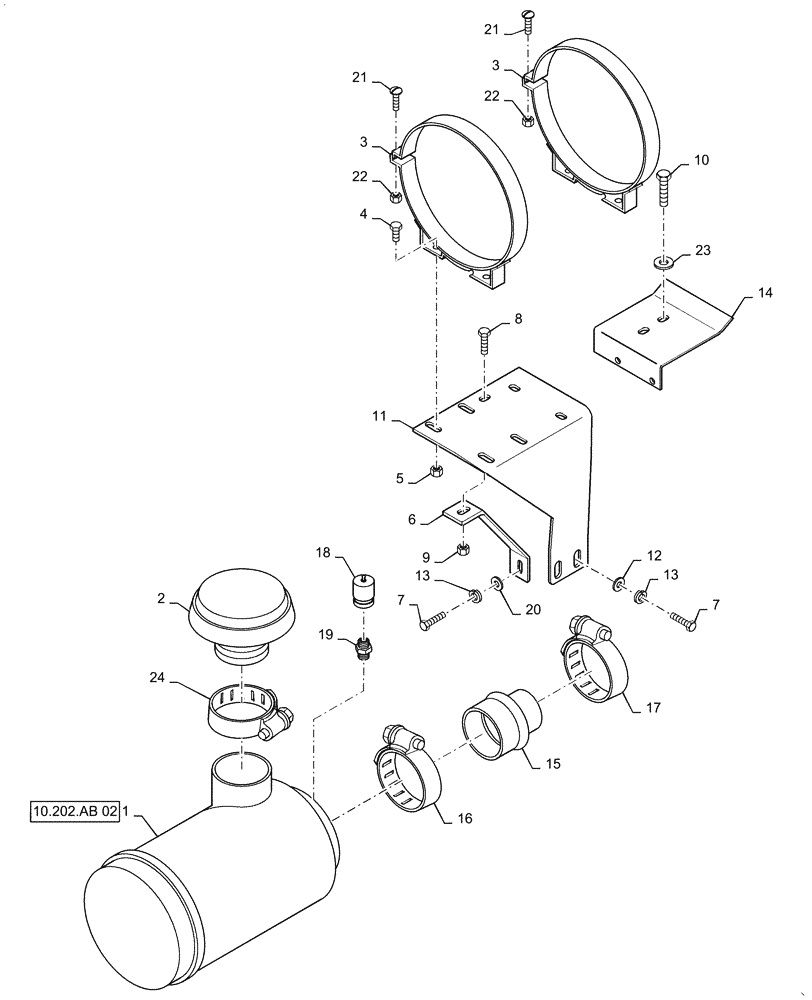

Запчасти Case IH RPZ85 (10.202.BD[02]) - AIR INDUCTION SYSTEM (10) - ENGINE

1

47610229

AIR CLEANER

Cleaner Assy, Air, PL See Figure 10.202.AB

1шт.

2

S512971

CAP

Air Inlet Tube, Incl 24 Clamp

1шт.

3

A16574

BAND

Air Cleaner, Incl Hardware

2шт.

4

9628510

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

5

247780

SERRATED NUT,Flg, USR, 3/8"-16

5шт.

6

277898A1

BRACE

Air Cleaner Support

1шт.

7

398792

SCREW,Hex, M12 x 25mm, Cl 10.9

Air Cleaner Support Bracket to Cylinder Head

3шт.

8

9706726

BOLT,Hex Flg, 3/8" - 16 x 1"

3/8 NC X 1 IN, Air Cleaner Support Bracket to Air Cleaner Mounting Bracket

1шт.

9

247780

SERRATED NUT,Flg, USR, 3/8"-16

3/8 NC X 1 IN, Air Cleaner Support Bracket to Air Cleaner Mounting Bracket

1шт.

10

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

2шт.

11

277901A1

BRACKET

Mounting, Air Cleaner to Flywheel Housing

1шт.

12

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

Flat

2шт.

13

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

3шт.

14

277892A1

SHIELD

Heat, Air Cleaner

1шт.

15

A56094

HOSE

Adapter Air Cleaner

1шт.

16

9706924

HOSE CLAMP,103.1mm - 127mm

Air Cleaner End of Reducer Hose

1шт.

17

87040758

HOSE CLAMP,71.4mm - 95.2mm

Adj, 2-13/16 - 3-3/4 IN Dia, Turbo End of Reducer Hose

1шт.

18

A59569

INDICATOR

Air Restriction

1шт.

19

D36264

FITTING

Indicator, 1/8 NPT X 1/8 NPT

1шт.

20

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

Flat

1шт.

21

477-73124

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/2"

2шт.

22

280967

SQUARE NUT,Sq, 5/16"-18, G2

2шт.

23

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

M10

2шт.

24

87019670

HOSE CLAMP,#80, 4.62/5.50 Type F Worm

Adjustable 60 mm - 133 mm

1шт.
