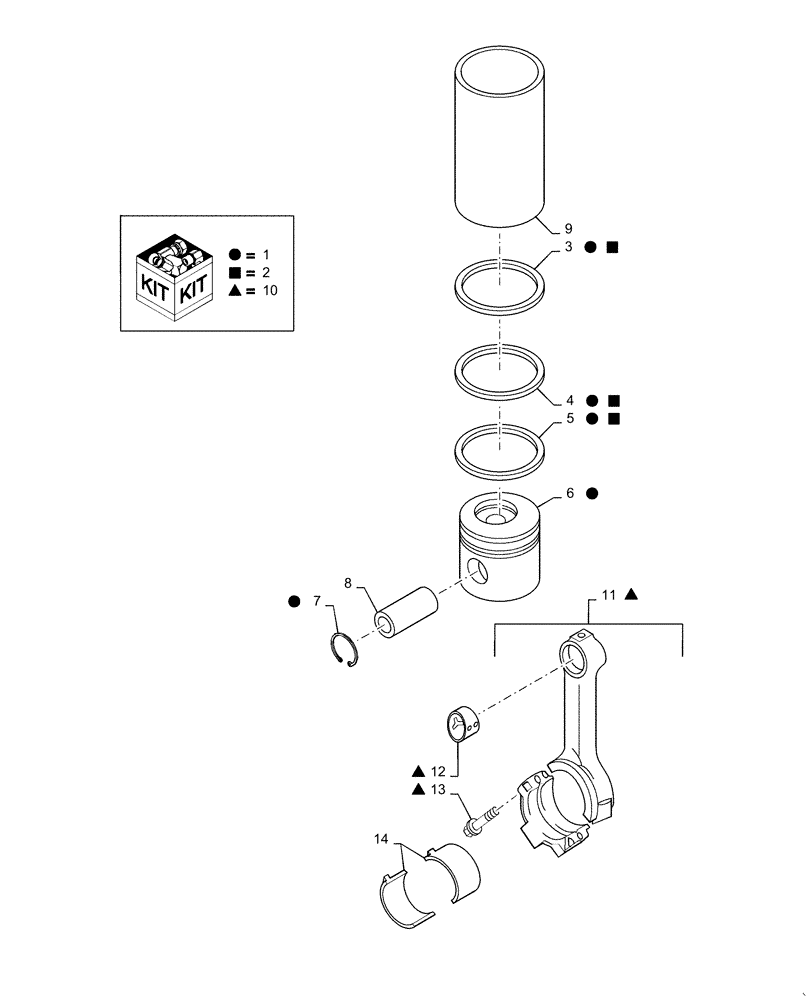

Запчасти Case IH RPZ85 (10.105.AB[02]) - PISTON & CONNECTING ROD (10) - ENGINE

1

A77730

PISTON,104MM PISTON DIAMETER

Kit, Engine, Standard, Incl 2 - 8

4шт.

1

A77638

PISTON

Kit, Engine, .5mm Oversize, Incl 2 - 8

4шт.

1

A77732

PISTON

Kit, Engine, 1mm Oversize, Incl 2 - 8

4шт.

2

A77500

PISTON RING SET

Standard, Incl with 1, Incl 3 - 5

1шт.

2

A77501

PISTON RING SET

.5mm Oversize, Incl with 1, Incl 3 - 5

1шт.

2

A77502

PISTON RING SET

1mm Oversize, Incl with 1, Incl 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Compression Ring, Top, Incl with 2

1шт.

4

NSS

NOT SOLD SEPARAT

Compression Ring, Middle, Incl with 2

1шт.

5

NSS

NOT SOLD SEPARAT

Compression Ring, Bottom, Incl with 2

1шт.

6

NSS

NOT SOLD SEPARAT

Piston, Incl with 1

1шт.

7

J920691

SPECIAL RING

Pin Retainer, Incl with 1

2шт.

8

J934048

PISTON PIN,40mm OD x 75.68mm L

Incl with 1

1шт.

9

J904166AM

LINER

Piston Liner (Used Only in Engine Block Repair) (When Liner is Installed, Use Only A77730 Piston Kit)

1шт.

10

84145405R

REMAN-CONNECTING ROD

Assembly

1шт.

10

84145405C

CORE-ROD CONNECTING

Return Number

1шт.

11

NSS

NOT SOLD SEPARAT

Connecting Rod Assembly, Incl 12 - 13

4шт.

12

NSS

NOT SOLD SEPARAT

Rod to Piston Pin Bushing, Incl with 11

2шт.

13

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

Special, Incl with 11

2шт.

14

A77894

BEARING SET,69mm ID x 73.53mm OD x 31mm W

Connecting Rod, Standard

4шт.

14

A77466

BEARING SET

Connecting Rod, .25mm Undersize

4шт.

14

A77467

BEARING LINER

Connecting Rod, .5mm Undersize

4шт.

14

A77468

BEARING SET

Connecting Rod, .76mm Undersize

4шт.

14

A77469

BEARING SET

Connecting Rod, 1mm Undersize

4шт.
