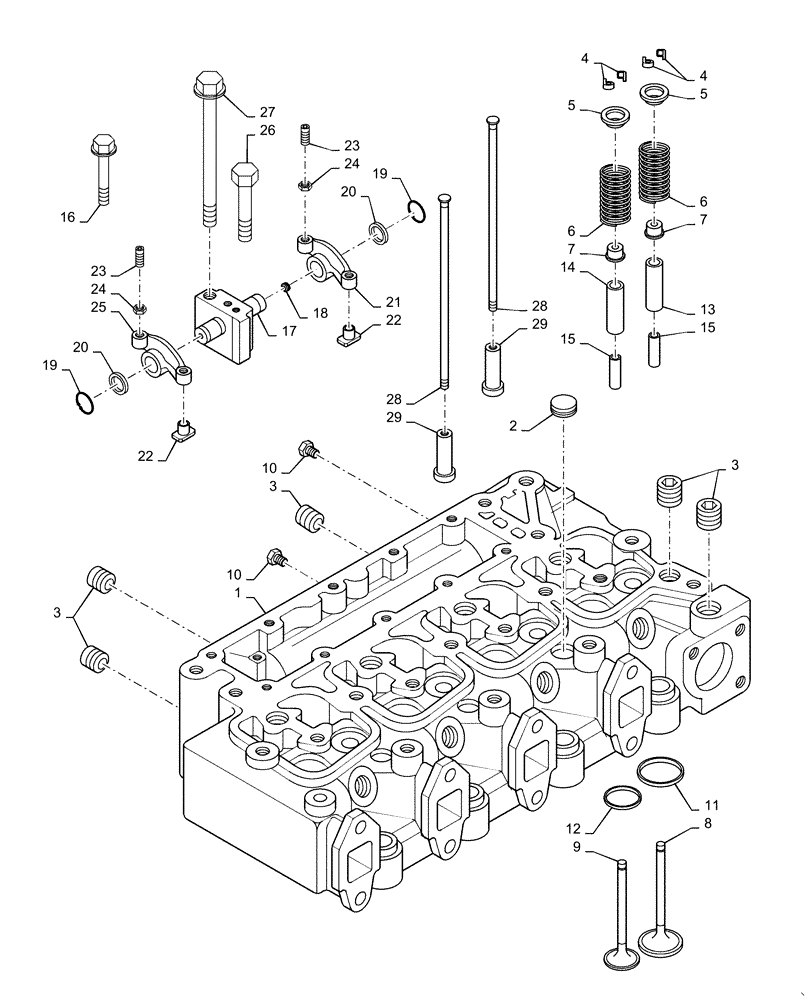

Запчасти Case IH RPZ85 (10.101.AM) - CYLINDER HEAD & RELATED PARTS (10) - ENGINE

1

JR910275

HEAD (CYLINDER)

Remanufactured

1шт.

1

JC910275

CORE-CYLINDER HEAD

Return Number

1шт.

2

84394317

PLUG

Expansion, 21mm OD

3шт.

3

87034671

PLUG,Hex Soc, 1/2"-14

5шт.

4

CASJ900250

RETAINER

Valve

16шт.

5

87433959

RETAINER

Valve Spring

8шт.

6

J926700

VALVE SPRING

Cylinder Head

8шт.

7

J921640

SEAL

Valve

8шт.

8

J920867

VALVE

Intake

4шт.

9

4895188

STD EXHAUST VALVE

Head

4шт.

10

J906619

PLUG,1/8" - 27

Hex Socket Pipe, 1/8" - 27

2шт.

11

J906854

SEAT, VALVE

Intake Insert

4шт.

12

J904105

SEAT, VALVE

Exhaust Insert

4шт.

13

J904408

GUIDE

Intake Valve

4шт.

14

J904409

GUIDE

Exhaust Valve

4шт.

15

J906206

GUIDE

Intake and Exhaust Valve, 11mm OD

8шт.

16

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

Hex Flange, 12M x 1.75mm x 70mm

4шт.

16

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

Hex Flange, 12M x 1.75mm x 120mm

10шт.

17

J922488

SUPPORT

Rocker Arm

4шт.

18

J907555

PLUG

Rocker Arm Shaft

1шт.

19

4895363

SNAP RING

Rocker Arm

8шт.

20

J900245

WASHER

Thrust, Rocker Arm

8шт.

21

J910811

ROCKER

Arm, Intake

4шт.

22

NSS

NOT SOLD SEPARAT

Rocker Arm Insert, Incl in 21, 25

2шт.

23

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

2шт.

24

86509310

NUT,3/8" - 24, Gr 5

Jam

2шт.

25

J910810

ROCKER

Arm, Exhaust

4шт.

26

Z1232960

SCREW

Hex, M8 x 1.25mm x 75mm

4шт.

27

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

Hex Flange, M12 x 1.75mm x 180mm

4шт.

28

J284377

PUSH ROD

Rocker Arm

8шт.

29

J931623

TAPPET

Valve, Push Rod

8шт.
