Запчасти Case IH RPZ85 (10.101.AA[01]) - CYLINDER HEAD GASKET (10) - ENGINE

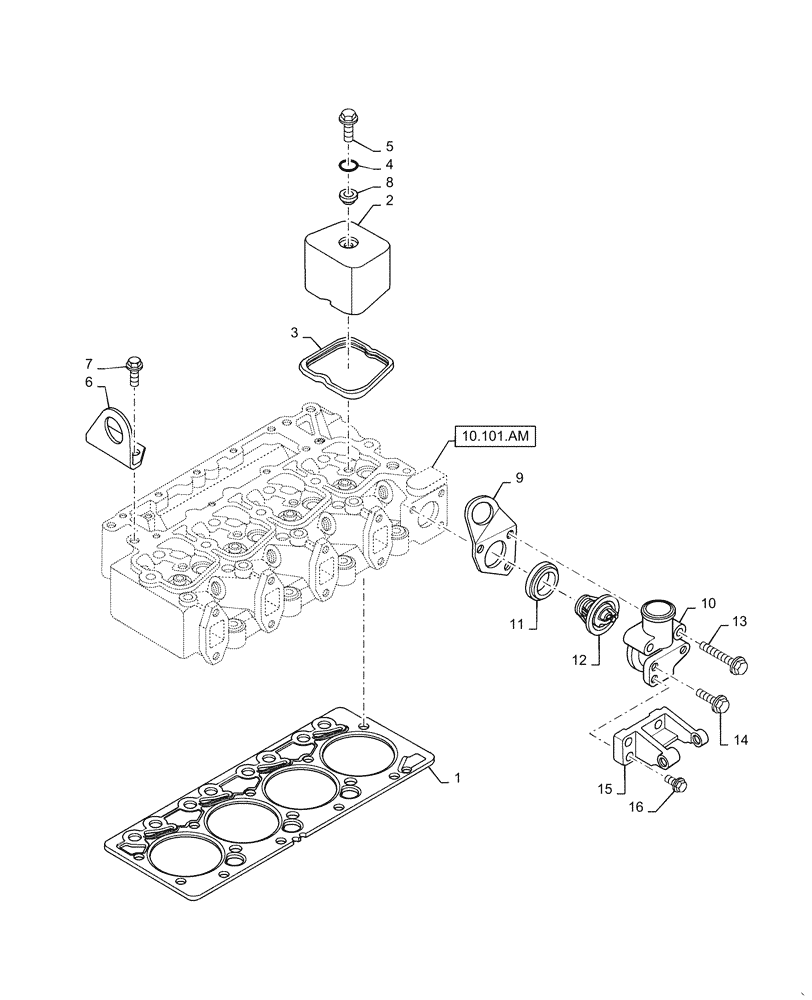

Схема запчастей Case IH RPZ85 - (10.101.AA[01]) - CYLINDER HEAD GASKET (10) - ENGINE
6
9
4
15
16
5
11
3
1
10.101.am
10
13
14
7
12
8
2

Артикул

Название

Примечание

Количество

1

J283333AM

GASKET

Gasket, Cylinder Head, Standard (1 Notch)

1шт.

1

J283336

GASKET

Cylinder Head, 0.23mm Oversized (2 Notches)

1шт.

1

J283338

GASKET

Cylinder Head, 0.51mm Oversized (3 Notches)

1шт.

2

J928404

COVER

Rocker

4шт.

3

2852033

GASKET,7mm Thk

Rocker Cover

4шт.

4

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

Cover Bolt

4шт.

5

J907049

BOLT,Hex

Special, 8mm

4шт.

6

J908118

BRACKET

Rear Lifting

1шт.

7

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

2шт.

8

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

Vibration

4шт.

9

J903757

BRACKET

Front Lifting

1шт.

10

J285102

HOUSING

Thermostat

1шт.

11

2852154

GASKET,50mm ID x 59.25mm OD x 16.23mm Thk

Thermostat Housing

1шт.

12

47616763

THERMOSTAT

Engine Coolant

1шт.

13

86624974

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

2шт.

14

86624966

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

1шт.

15

J287096

SUPPORT

Alternator Mounting

1шт.

16

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

Выбрано товаров: 18
