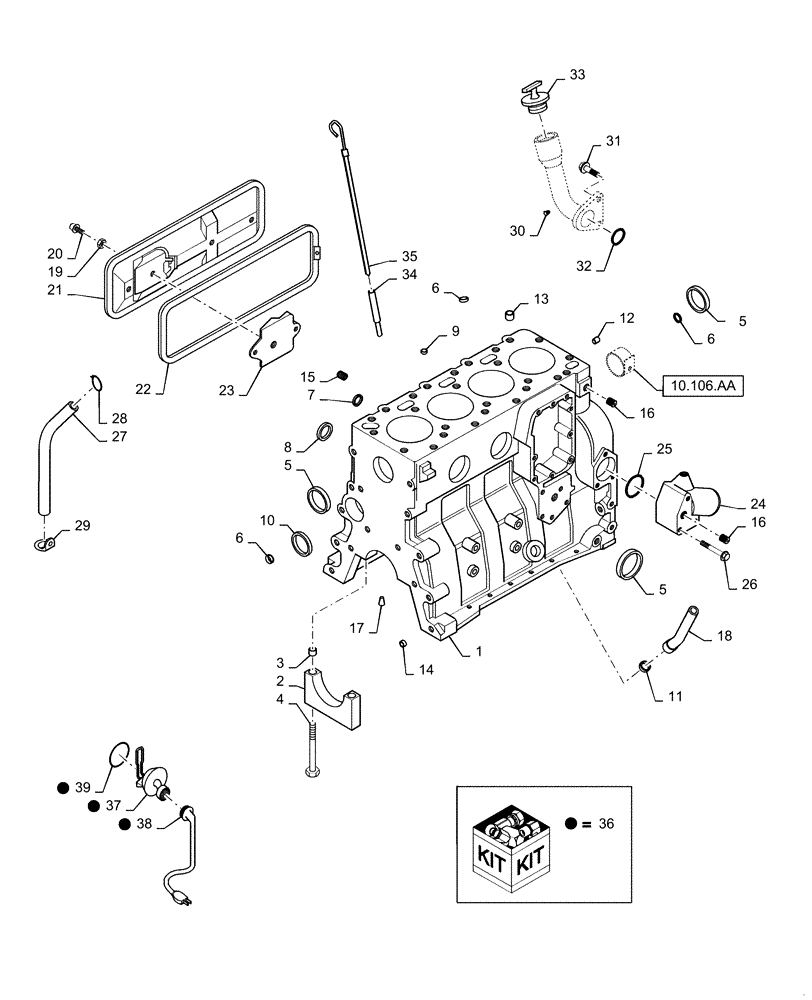

Запчасти Case IH RPZ85 (10.001.AD[02]) - CYLINDER BLOCK & RELATED PARTS (10) - ENGINE

1

1989092C3R

REMAN-BASIC ENGINE

Assembly

1шт.

1

1989092C3C

CORE-BASIC ENGINE

Return Part Number

1шт.

1

JR905378

BLOCK

Short, Remanufactured

1шт.

1

JC905378

CORE-ENGINE

Return Part Number

1шт.

2

87579994

BEARING ASSY

Cap, Main

5шт.

3

J900068

BEARING WASHER

Ring, Dowel, 18mm

10шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

Special, Bearing Cap

10шт.

5

75312133

PLUG

Expansion, 58mm

4шт.

6

J900956

PLUG

Expansion, 18mm

3шт.

7

86625124

PLUG,Cup, 1", Stainless

Expansion

2шт.

8

J900958

PLUG

Expansion, 32mm

2шт.

9

J900955

PLUG

Expansion, 10mm

1шт.

10

41-3038

PLUG,Exp, 2 3/8"

1шт.

11

J920706

PLUG

Expansion, .866mm

1шт.

12

J900257AM

WASHER

Dowel Pin, 16mm

2шт.

13

J902343AM

DOWEL

Dowel Ring, 16mm

2шт.

14

J900068

BEARING WASHER

Ring, Dowel, 18mm

2шт.

15

J906619

PLUG,1/8" - 27

Hex Socket Pipe, 1/8"-27

2шт.

16

87034671

PLUG,Hex Soc, 1/2"-14

3шт.

17

J901020

NOZZLE CAP

Piston Cooling

4шт.

18

J931973

TUBE,0.875" OD

Oil Drain

1шт.

19

J928759

SEALING WASHER

Cover Bolt

4шт.

20

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

21

J936186

COVER

Tappet

1шт.

22

J283767

GASKET,7.4mm Thk

Tappet Cover

1шт.

23

J907586

BAFFLE

Tappet Cover

1шт.

24

J934877

HYD CONNECTOR

Water Inlet

1шт.

25

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-Ring, 50mm

1шт.

26

86624961

BOLT,Hex, M10 x 75mm, Cl 10.9

3шт.

27

J918612

TUBE,360.00 mm

Breather

1шт.

28

J904230

CLAMP,25.4mm

Hose, Spring

1шт.

29

J928989

CLIP

Retaining

1шт.

30

J905440

TUBE

Oil Fill

1шт.

31

86624962

BOLT,Hex, M12 x 25mm, Cl 10.9, Full Thd

2шт.

32

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

Ring, Filler Tube

1шт.

33

47606501

FILLER CAP

Oil Fill Cap

1шт.

34

84260651

TUBE,Dipstick

Oil Dipstick Tube

1шт.

35

J905782

DIPSTICK

Oil Level

1шт.

36

196803A1

KIT

Engine Block Heater, Incl 37 -39

1шт.

37

NSS

NOT SOLD SEPARAT

Engine Heater Element, 12 Volt, Incl with 36

1шт.

38

87105748

ELECTRIC CABLE,120V, 15A

Engine Block Heater, Incl with 36

1шт.

39

J910517

O-RING

Heater Sealing, Incl with 36

1шт.

40

250838A2

HYD CONNECTOR

Not Illustrated

1шт.

41

86625099

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

For 18, Not Illustrated

1шт.

42

86625087

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

For 40, Not Illustrated

1шт.
