(90.110.AH[02]) - CONTROL PANEL AND HARNESS

Запчасти Case IH RPZ65 (90.110.AH[02]) - CONTROL PANEL AND HARNESS (90) - PLATFORM, CAB, BODYWORK AND DECALS

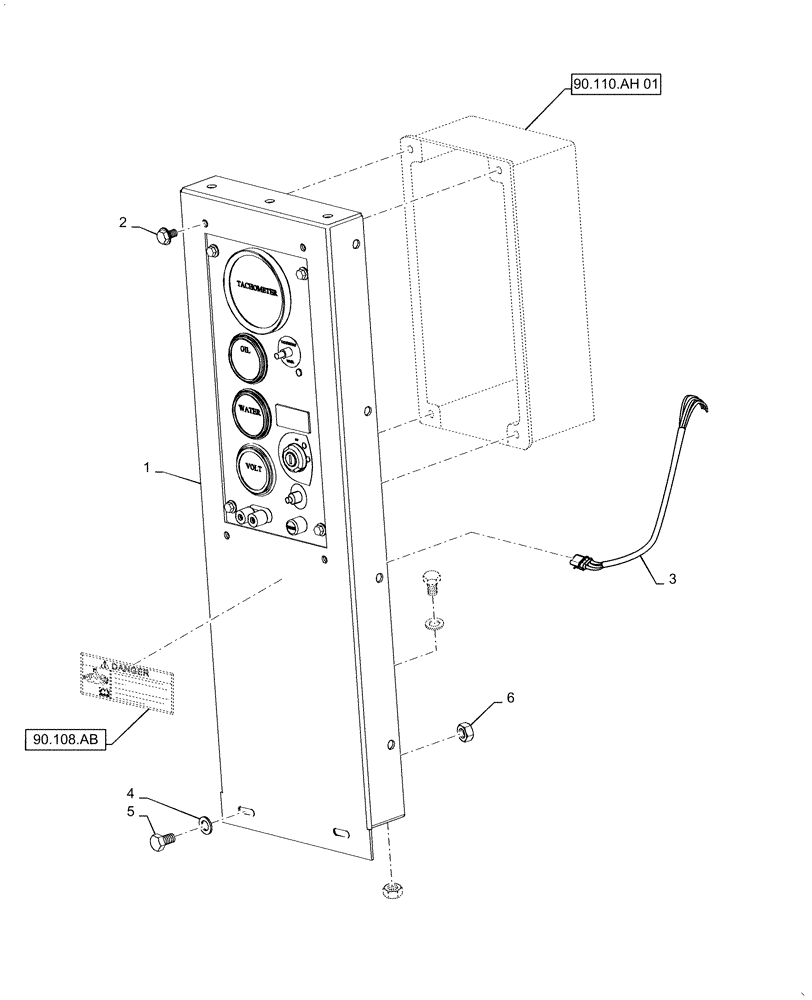

Схема запчастей Case IH RPZ65 - (90.110.AH[02]) - CONTROL PANEL AND HARNESS (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
1
2
3
5
90.110.ah 01
4
90.108.ab
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47612046

SUPPORT

Control Mounting

1шт.

1

47621484

SUPPORT

Control Mounting

1шт.

2

523292

BOLT,1/4" - 20 x 1.03" OAL

4шт.

3

47612032

WIRE HARNESS

Engine

1шт.

4

86624144

WASHER,0.41" ID x 0.75" OD x 0.12" Thk

4шт.

5

9670285

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

4шт.

6

247780

SERRATED NUT,Flg, USR, 3/8"-16

4шт.

7

47673450

ELEC CONNECTOR

Wire Connector, Fuel Solenoid, Not Illustrated

1шт.

Выбрано товаров: 8
