Запчасти Case IH RPZ65 (88.100.55[02]) - LOW OIL SHUTDOWN (88) - ACCESSORIES

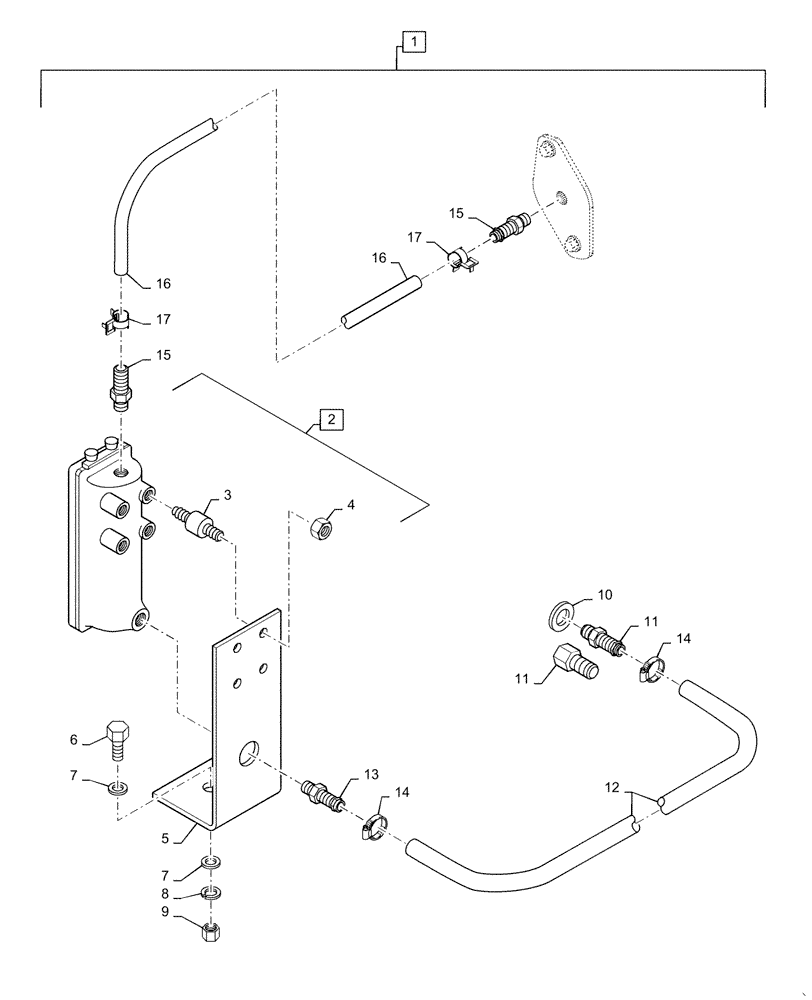

Схема запчастей Case IH RPZ65 - (88.100.55[02]) - LOW OIL SHUTDOWN (88) - ACCESSORIES
14
4
10
8
9
12
2
17
6
17
11
13
14
3
15
11
16
7
7
16
1
15
5

Артикул

Название

Примечание

Количество

1

1347738C1

ATTACHMENT

Kit, Low Oil Shutdown, Incl 2-17

1шт.

2

1347701C1

SWITCH ASSY

Oil Level, High/Low, Incl 3 - 4, Incl with 1

1шт.

3

251203A1

MOUNT

Shock & Hardware, Incl with 1, 2

4шт.

4

86562216

NUT,Keps, w/LW,1/4"-20

Hex, Incl with 1, 2

4шт.

5

1347702C1

BRACKET

Mounting, Switch, Incl with 1

1шт.

6

9670285

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

Incl with 1

1шт.

7

86624144

WASHER,0.41" ID x 0.75" OD x 0.12" Thk

Flat, Incl with 1

2шт.

8

80680

LOCK WASHER,3/8 0.381 CST ZND

Incl with 1

1шт.

9

280136

NUT,3/8"-16, G8

Hex, Incl with 1

1шт.

10

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

Incl with 1

1шт.

11

101906A1

FITTING

M22 - 1.5 Male w/ 5/8" Barb, Incl with 1

1шт.

11

87448295

END FITTING

3/4" - 16 Female w/ 5/8" Barb, Incl with 1

1шт.

12

283983A1

HOSE,45.00"

953 mm (37-1/2) Long, cut from 47579004 Bulk Hose, Oil Gauge Supply, Incl with 1

1шт.

47579004, Hose - Bulk, 16mm (5/8") ID x 15240mm (600") Long

1шт.

13

86010532

FITTING,5/8" Hose X 1/2" NPTF Beaded

Straight, Incl with 1

1шт.

14

87625624

HOSE CLAMP,14.2mm ID - 26.9mm ID, SAE #10

Adj, 9/16" - 1 1/16" Dia, Incl with 1

2шт.

15

87575678

HYD CONNECTOR

Straight, 3/8" Barb End X 1/8" PT, Incl with 1

2шт.

16

249999A1

HOSE

Oil Gauge Vent, 394mm (15 1/2") Long, Cut from 364357C2 Bulk Hose, Incl with 1

1шт.

364357C2, Hose - Bulk, 9.52mm (3/8") ID x 7620mm (300") Long

1шт.

17

1348264C1

HOSE CLAMP

Spring, Incl with 1

2шт.

18

87455568

REPAIR KIT

Glass, Not Shown

1шт.

Выбрано товаров: 21
