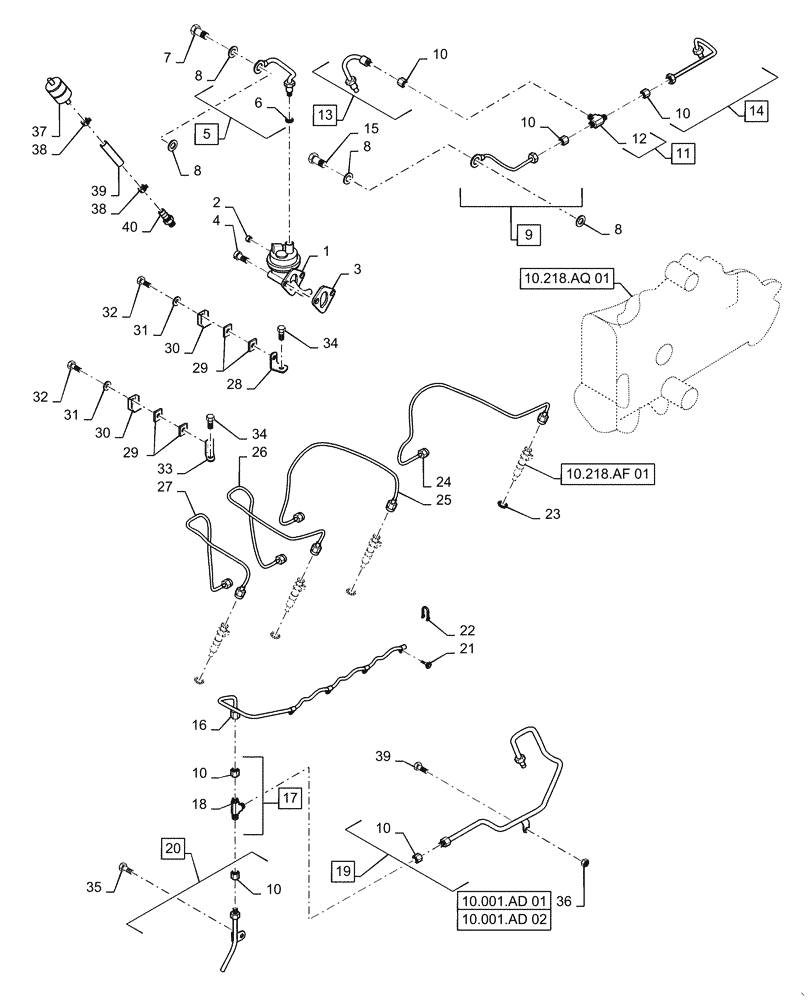

Запчасти Case IH RPZ65 (10.218.AE[01]) - FUEL INJECTOR, LINES (10) - ENGINE

1

84142216

FUEL PUMP

Lift

1шт.

2

9617020

PLUG,1/4" - 18 x 0.48"

1шт.

3

J939258

GASKET,1.21mm Thk

Lift Pump Mounting

1шт.

4

86511479

BOLT,Hex Flg, M8 x 20mm

2шт.

5

J905649

FUEL TUBE,8 mm OD x 233.5 mm L

Lift Pump to Filter, Incl 6

1шт.

6

NSS

NOT SOLD SEPARAT

Tube Seal, Incl with 5

1шт.

7

J903035

BANJO BOLT

M12 x 1.5mm x 24mm

1шт.

8

87415913

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

12mm x 18mm x 1mm

4шт.

9

J905364

FUEL TUBE

Fuel Supply, Filter to Tee, Incl 10

1шт.

10

222-103

SLEEVE,5/16" Tube

Incl with 9, 13 - 14, 19 - 20

5шт.

11

J905353

TEE

Union, Incl 12

1шт.

12

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

Incl with 11

3шт.

13

J905375

FUEL TUBE,8 mm OD x 137.6 mm L

Fuel Supply, Tee to Rear of Injection Pump, Incl 10

1шт.

14

J905363

FUEL TUBE,8 mm OD x 256.8 mm L

Fuel Supply, Tee to Front of Injection Pump, Incl 10

1шт.

15

J911446

BANJO BOLT,M12 x 1.5 x 24mm

1шт.

16

J909695

FUEL TUBE

Fuel Return Manifold

1шт.

17

222-121

TEE,3/16", Flex Tubing

Incl 18

1шт.

18

114612A1

TUBE NUT

3/8"-24, Incl with 17

3шт.

19

J925882

FUEL TUBE,4.76 mm OD x 662.1 mm L

Fuel Return, Tee to Pump, Incl 10

1шт.

20

J905692

FUEL TUBE

Fuel Return, Tee to Fuel Tank, Incl 10

1шт.

21

J905307

BANJO BOLT,M6 x 1 x 14.30mm

Special

4шт.

22

J903380

SEAL

Connector

4шт.

23

J900808

SEAL

Injector

4шт.

24

J903522

FUEL TUBE,2 mm ID x 6.4 mm OD x 643.1 mm L

Injector, Number 1 Cylinder

1шт.

25

J903523

FUEL TUBE,2 mm ID x 6.4 mm OD x 645.3 mm L

Injector, Number 2 Cylinder

1шт.

26

J903524

FUEL TUBE

Injector, Number 3 Cylinder

1шт.

27

J903525

FUEL TUBE

Injector, Number 4 Cylinder

1шт.

28

J930689

SUPPORT

Fuel Tube Bracket, Number 1 and 2 Cylinders

1шт.

29

J917746

CLAMP

Fuel Tube Isolator

4шт.

30

CASJ904711

SUPPORT

Fuel Tube Clamp

2шт.

31

86625261

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

32

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

2шт.

33

J930688

SUPPORT

Fuel Tube Bracket, Number 3 and 4 Cylinders

1шт.

34

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

Special

2шт.

35

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

36

J928759

SEALING WASHER

Cover Bolt

2шт.

37

D139225

FILTER, FUEL

In-Line

1шт.

38

1348264C1

HOSE CLAMP

3/8"

2шт.

39

1348239C1

FUEL HOSE,9.52 mm ID x 78.00 mm, SAE 30R7

1шт.

Cut From Bulk Hose 364357C2, 7620mm (300") Long

1шт.

40

86509027

FITTING,3/8" Hose x 1/4" NPTF, Barbed

1шт.
