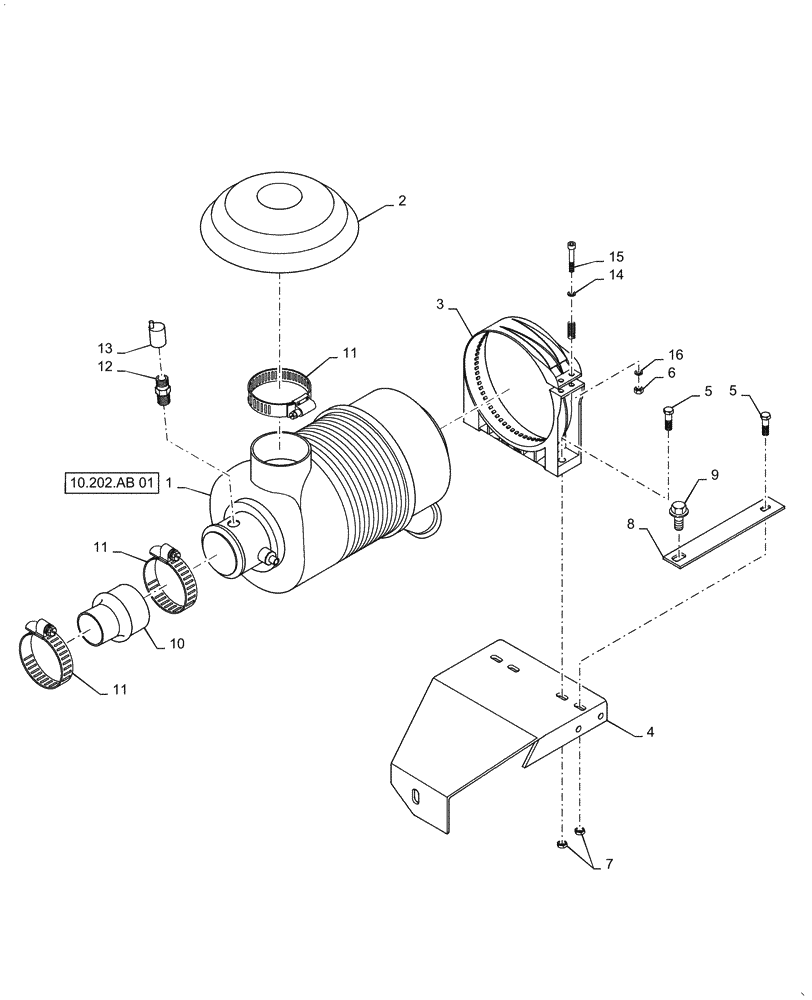

Запчасти Case IH RPZ65 (10.202.BD[01]) - AIR INDUCTION SYSTEM (10) - ENGINE

1

47610227

AIR CLEANER

Assembly

1шт.

2

70698760

COVER

Air Cleaner

1шт.

3

84057675

CLAMP BRACKET

Air Cleaner

1шт.

4

322634A1

BRACKET

Air Cleaner Mounting

1шт.

5

86512170

BOLT,Hex Flg, 5/16" - 18 x 1 1/2"

3шт.

6

353308

NUT,M6 x 1.0, Cl 8

2шт.

7

145458

SERRATED NUT,5/16"-18 GR 5 ZND

3шт.

8

322635A1

BRACE

Air Cleaner Mounting

1шт.

9

9804266

BOLT,Hex, M12 x 25mm, Cl 8.8, Full Thd

1шт.

10

47689137

ADAPTER

Adapter, Rubber, Air Cleaner to Intake Elbow

1шт.

11

86625034

HOSE CLAMP,90.4mm - 114.3mm, Worm Gear

3шт.

12

D36264

FITTING

Indicator, 1/8" NPT x 1/8" NPT

1шт.

13

A59569

INDICATOR

Air Restriction

1шт.

14

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

15

356464

HEX SOC SCREW,M6 x 50mm, Cl 8.8

M6 x 1mm x 50mm

2шт.

16

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

2шт.
