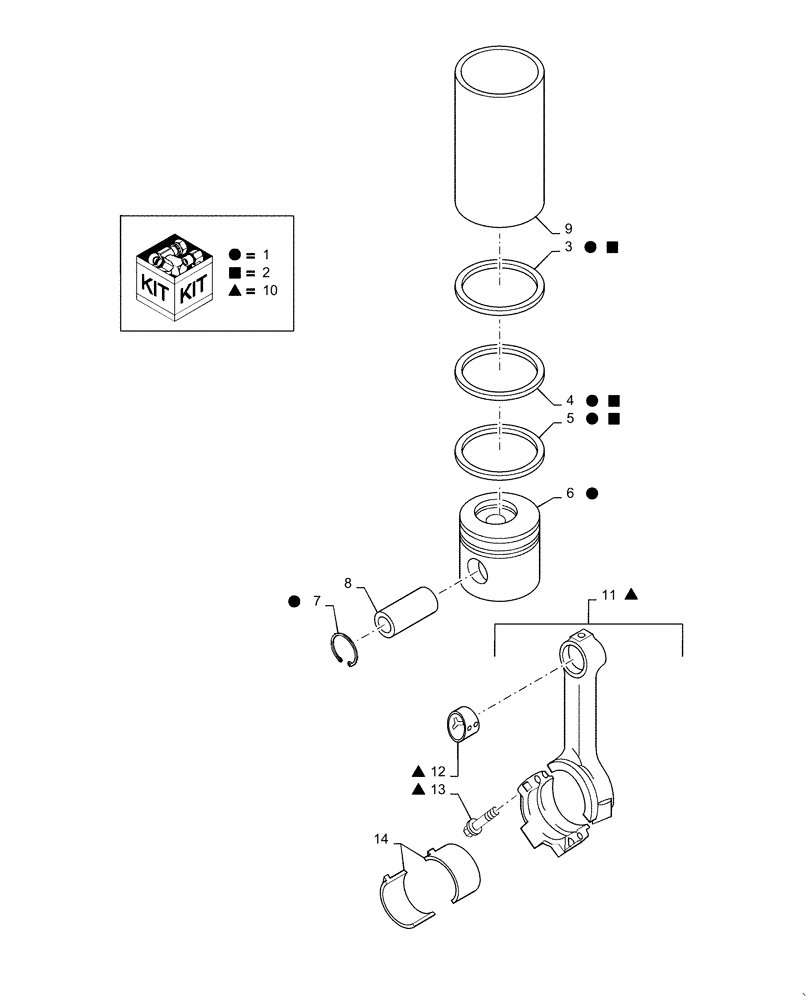

Запчасти Case IH RPZ65 (10.105.AB[01]) - PISTON & CONNECTING ROD (10) - ENGINE

1

A77410

PISTON

Kit, Engine, Standard, Incl 2 - 8

4шт.

1

A77411

PISTON

Kit, Engine, .5mm Oversize, Incl 2 - 8

4шт.

1

A77412

PISTON

Kit, Engine, 1mm Oversize, Incl 2 - 8

4шт.

2

A77401

PISTON RING SET

Standard, Incl with 1, Incl 3 - 5

1шт.

2

A77463

PISTON RING SET

.5mm Oversize, Incl with 1, Incl 3 - 5

1шт.

2

A77464

PISTON RING SET

1mm Oversize, Incl with 1, Incl 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Compression Ring, Top, Incl with 2

1шт.

4

NSS

NOT SOLD SEPARAT

Compression Ring, Middle, Incl with 2

1шт.

5

NSS

NOT SOLD SEPARAT

Compression Ring, Bottom, Incl with 2

1шт.

6

NSS

NOT SOLD SEPARAT

Piston, Incl with 1

1шт.

7

J920691

SPECIAL RING

Pin Retainer, Incl with 1

2шт.

8

J934048

PISTON PIN,40mm OD x 75.68mm L

Incl with 1

1шт.

9

J904166AM

LINER

Piston Liner, (Used Only in Engine Block Repair) (When Liner is Installed, Use only A77410 Piston Kit)

1шт.

10

84145405R

REMAN-CONNECTING ROD

Incl 12 - 13

1шт.

10

84145405C

CORE-ROD CONNECTING

Return Number

1шт.

11

NSS

NOT SOLD SEPARAT

Connecting Rod Assembly

4шт.

12

NSS

NOT SOLD SEPARAT

Rod to Piston Bushing, Incl with 10

1шт.

13

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

Special, Incl with 10

2шт.

14

A77894

BEARING SET,69mm ID x 73.53mm OD x 31mm W

Connecting Rod, Standard

4шт.

14

A77466

BEARING SET

Connecting Rod, .25mm Undersize

4шт.

14

A77467

BEARING LINER

Connecting Rod, .50mm Undersize

4шт.

14

A77468

BEARING SET

Connecting Rod, .76mm Undersize

4шт.

14

A77469

BEARING SET

Connecting Rod, 1mm Undersize

4шт.
