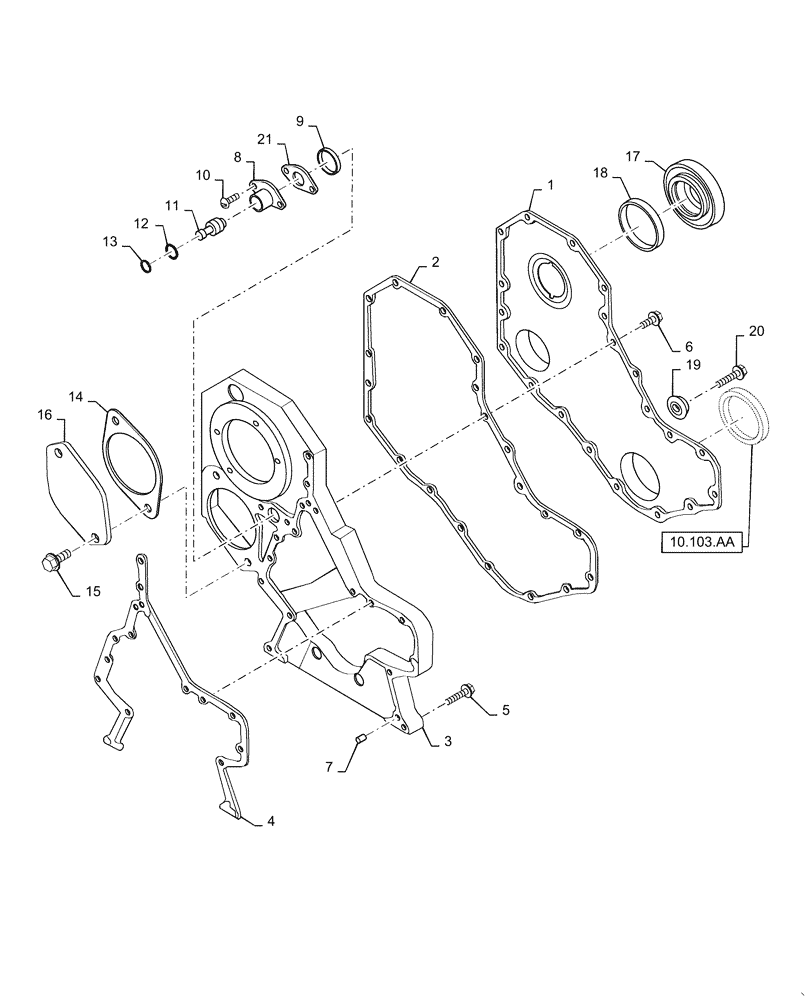

Запчасти Case IH RPZ65 (10.102.BB) - FRONT ENGINE COVER (10) - ENGINE

1

J287075

COVER ASSY

Front Gear

1шт.

2

J914385AM

GASKET

Front Cover Gasket

1шт.

3

J920758

HOUSING

Timing Gear

1шт.

4

J938156

GASKET,0.79mm Thk

Gear Housing

1шт.

5

87015867

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

10шт.

6

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

16шт.

7

J900257

PIN,10.01mm OD x 16mm L

Locating Dowel

2шт.

8

J919683

HOUSING

Timing Pin

1шт.

9

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

Rectangular Ring

1шт.

10

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

11

J903924AM

PIN

Timing Pin

1шт.

12

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

13

100-2587

SNAP RING,0.875", Int, #87

Timing Pin

1шт.

14

144169C2

GASKET,0.79mm Thk

Cover Plate

1шт.

15

86624962

BOLT,Hex, M12 x 25mm, Cl 10.9, Full Thd

2шт.

16

J914868

COVER

Plate, Access

1шт.

17

J903463

PLUG,M63 x 5

Tachometer Drive Hole

1шт.

18

J903475AM

SEAL

Sealing Ring, Cover

1шт.

19

J912772

RETAINER

Bolt

1шт.

20

845-8060

BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

1шт.

21

J905595

GASKET

Timing Pin

1шт.
