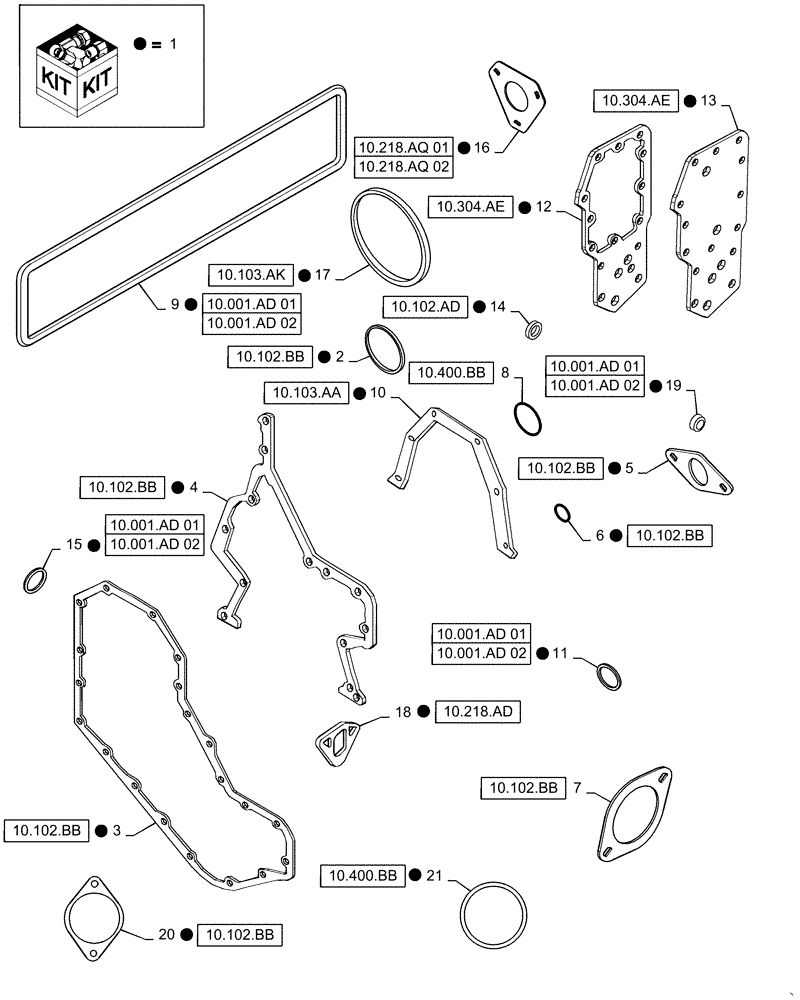

Запчасти Case IH RPZ65 (10.101.AA[03]) - GASKET KIT, CYLINDER BLOCK (10) - ENGINE

1

87447514

GASKET KIT

Engine Block, Incl 2 - 19

1шт.

2

J903475AM

SEAL

Cover Seal, Incl with 1

1шт.

3

J914385AM

GASKET

Cover to Housing Gasket, Incl with 1

1шт.

4

J938156

GASKET,0.79mm Thk

Gear Housing, Incl with 1

1шт.

5

J905595

GASKET

Timing Pin Housing, Incl with 1

1шт.

6

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

Sealing, Incl with 1

1шт.

7

144169C2

GASKET,0.79mm Thk

Cover Plate

1шт.

8

86625101

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

Sealing

1шт.

9

J283767

GASKET,7.4mm Thk

Tappet Cover, Incl with 1

1шт.

10

J938159

GASKET

Seal Retainer, Incl with 1

1шт.

11

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-Ring, 50mm, Incl with 1

1шт.

12

87549580

GASKET,1.02mm Thk

Cooler Core, Incl with 1

1шт.

13

J929792

GASKET,1.2mm Thk

Filter Head, Incl with 1

1шт.

14

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

Plug, Incl with 1

1шт.

15

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-Ring, Incl with 1

1шт.

16

87413428

GASKET,1.2mm Thk

Fuel Pump, Incl with 1

1шт.

17

J912473AM

SEAL

Housing to Block O-Ring, Incl with 1

1шт.

18

J939258

GASKET,1.21mm Thk

Fuel Lift Pump, Incl with 1

1шт.

19

J928759

SEALING WASHER

Cover Bolt, Incl with 1

4шт.

20

J938655AM

GASKET

Gasket, Hydraulic Pump, Incl with 1

1шт.

21

2852047

SEALING RING,Square, 5.16mm Thk x 88.27mm ID

Incl with 1

1шт.
