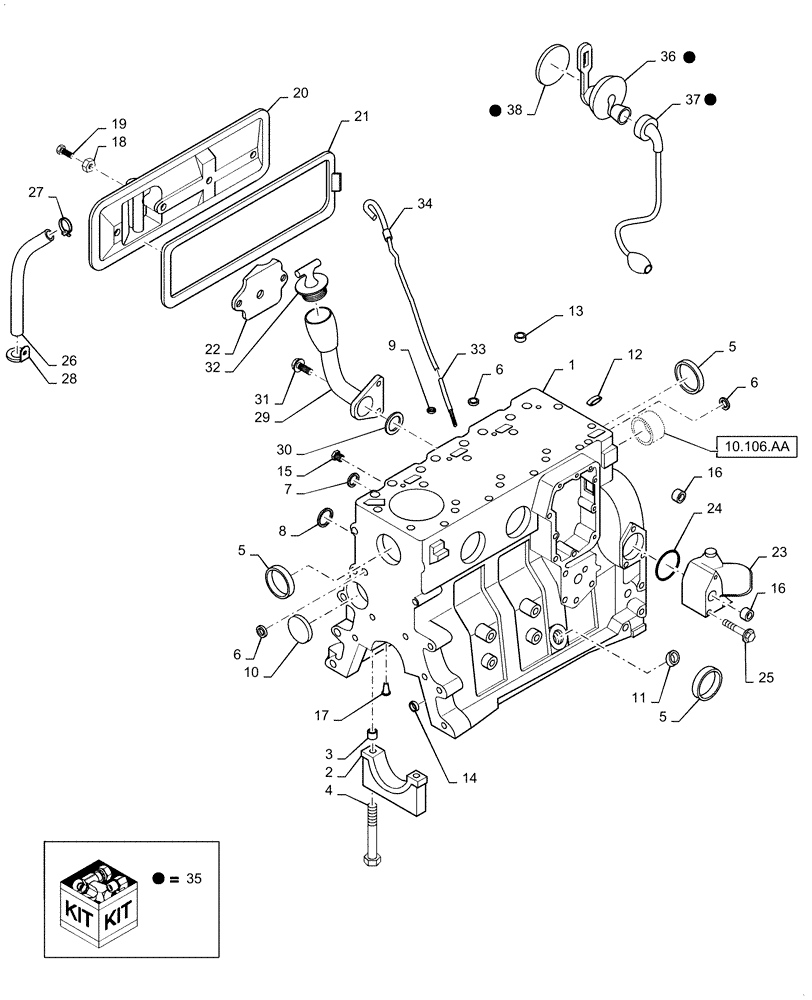

Запчасти Case IH RPZ65 (10.001.AD[01]) - CYLINDER BLOCK & RELATED PARTS (10) - ENGINE

1

1989091C3R

REMAN-BASIC ENGINE

Assembly

1шт.

1

1989091C3C

CORE-BASIC ENGINE

Return Part Number

1шт.

1

JR905377

ENGINE, EXCHANGE

Short Block

1шт.

1

JC905377

CORE

Return Part Number

1шт.

2

87579994

BEARING ASSY

Cap, Main

5шт.

3

J900068

BEARING WASHER

Ring, Dowel

10шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

Bearing Cap

10шт.

5

75312133

PLUG

Expansion, 58mm

4шт.

6

J900956

PLUG

Expansion, 18mm

3шт.

7

86625124

PLUG,Cup, 1", Stainless

Expansion

2шт.

8

J900958

PLUG

Expansion, 32mm

2шт.

9

J900955

PLUG

Expansion, 10mm

1шт.

10

41-3038

PLUG,Exp, 2 3/8"

1шт.

11

J920706

PLUG

Expansion, .886mm

1шт.

12

J900257AM

WASHER

Pin, Dowel, 16mm

2шт.

13

J902343AM

DOWEL

Ring, Dowel, 16mm

2шт.

14

J900068

BEARING WASHER

Dowel Ring, 18mm

2шт.

15

J906619

PLUG,1/8" - 27

Hex Socket Pipe, 1/8"-27

2шт.

16

87034671

PLUG,Hex Soc, 1/2"-14

3шт.

17

J901020

NOZZLE CAP

Piston Cooling

4шт.

18

J928759

SEALING WASHER

Cover Bolt

2шт.

19

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

20

J936186

COVER

Tappet

1шт.

21

J283767

GASKET,7.4mm Thk

Tappet Cover

1шт.

22

J907586

BAFFLE

Tappet Cover

1шт.

23

J934877

HYD CONNECTOR

Water Inlet

1шт.

24

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-Ring, 50mm

1шт.

25

86624961

BOLT,Hex, M10 x 75mm, Cl 10.9

3шт.

26

J918612

TUBE,360.00 mm

Breather

1шт.

27

J904230

CLAMP,25.4mm

Spring, Hose

1шт.

28

J928989

CLIP

P Style, Retaining

1шт.

29

J905440

TUBE

Oil Fill

1шт.

30

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

Fill Tube

1шт.

31

86624962

BOLT,Hex, M12 x 25mm, Cl 10.9, Full Thd

2шт.

32

47606501

FILLER CAP

Oil Fill Cap

1шт.

33

84260651

TUBE,Dipstick

Oil Dipstick Tube

1шт.

34

J905782

DIPSTICK

Oil Level

1шт.

35

196803A1

KIT

Engine Block Heater, Incl 36 - 38

1шт.

36

NSS

NOT SOLD SEPARAT

Engine Heater Element, 12 Volt, Incl with 35

1шт.

37

87105748

ELECTRIC CABLE,120V, 15A

Engine Block Heater, Incl with 35

1шт.

38

J910517

O-RING

Heater Sealing, Incl with 35

1шт.

39

250838A2

HYD CONNECTOR

Fitting, Not Illustrated

1шт.

40

86625087

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

For 39

1шт.
