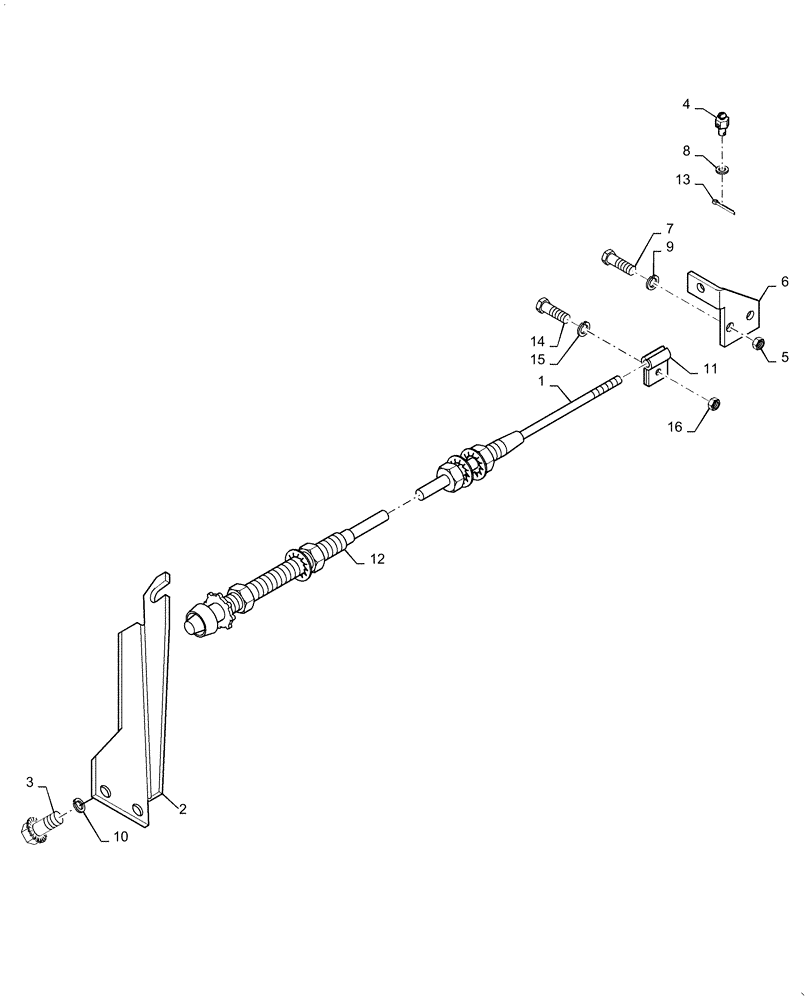

Запчасти Case IH RPZ145 (10.220.AA) - THROTTLE CONTROL (10) - ENGINE

1

47751168

CABLE

Control, Throttle

1шт.

2

47689141

BRACKET

Mounting, Throttle Cable

1шт.

3

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

2шт.

4

309762A1

PIVOT

Injection Pump End of Cable

1шт.

5

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.

6

87441695

BRACKET

Throttle Cable to Injection Pump

1шт.

7

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

2шт.

8

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

9

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

2шт.

10

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

2шт.

11

87441698

CLAMP

Throttle Cable

1шт.

12

84421272

THROTTLE CONTROL

Cable Head

1шт.

13

280250

COTTER PIN,3/32" OD x 3/4" L

1шт.

14

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

15

80682

LOCK WASHER,1/4"

1шт.

16

87317425

JAM NUT

1шт.
