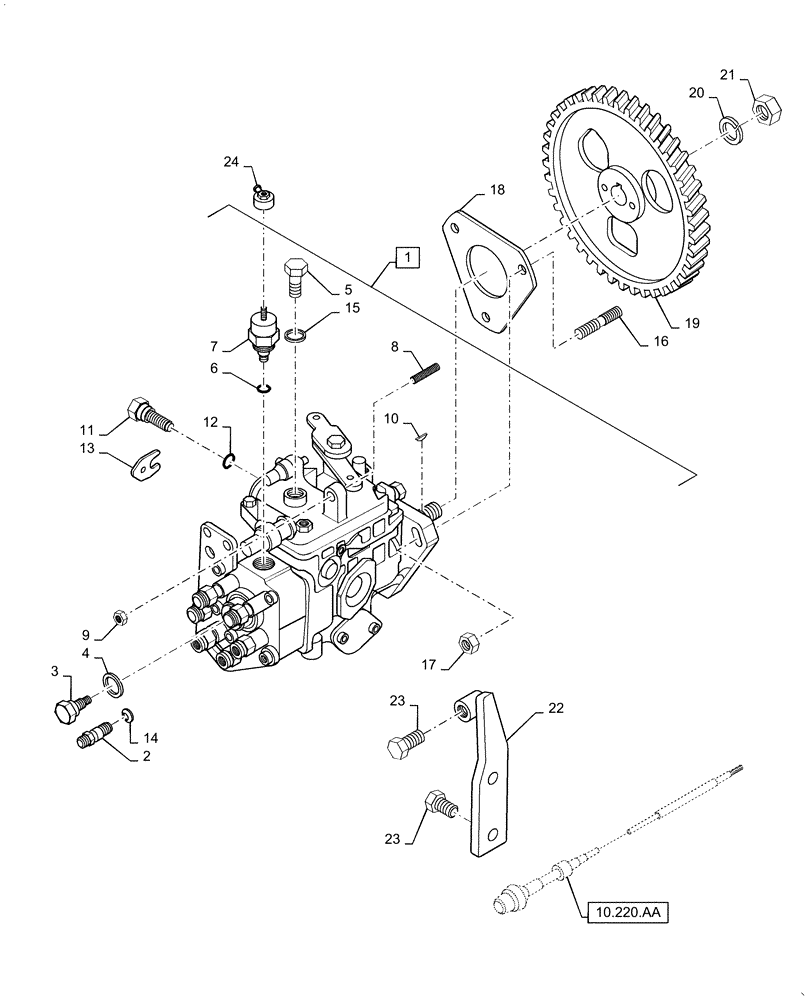

Запчасти Case IH RPZ145 (10.218.AQ) - FUEL INJECTION PUMP & DRIVE (10) - ENGINE

1

JR916939

REMAN-INJECTION PUMP

Fuel, Incl 2 - 15

1шт.

1

JC916939

CORE-INJECTION PUMP

Return Number

1шт.

2

J903571

ADAPTER

Delivery Valve, Incl with 1

6шт.

3

79071308

SCREW

Vent, Incl with 1

1шт.

4

190003098008

GASKET

Vent Screw, Incl with 1

1шт.

5

J905465

BANJO BOLT

Overflow, Incl with 1

1шт.

6

9008558

RUBBER RING

Solenoid Seal, Incl with 1

1шт.

7

A77753

SOLENOID

Incl with 1

1шт.

8

J904782

SET SCREW,Sl, M6 x 40mm, Half Dog Pt

Low Idle Stop, Incl with 1

1шт.

9

J904783

NUT

Idle Screw, Incl with 1

1шт.

10

10205820

WOODRUFF KEY,4mm x 6.50mm x 15.72mm

Pump Gear Retainer, Incl with 1

1шт.

11

J904784

SCREW,Hex Skt, M10 x 1 x 35mm

Timing Lock, Incl with 1

1шт.

12

J904785

O-RING,8 mm ID x 2.5 mm

Timing Lock Screw, Incl with 1

1шт.

13

J904786

PLATE

Timing Lock, Incl with 1

1шт.

14

J903570

GASKET,5.4mm ID x 12mm OD x 1mm Thk

Delivery Valve, Incl with 1

6шт.

15

NSS

NOT SOLD SEPARAT

Overflow Screw Washer, Incl with 1

1шт.

16

J902501

STUD

Pump Mounting

3шт.

17

86507066

FLANGE NUT,M8 x 1.25, Cl 10

3шт.

18

87413428

GASKET,1.2mm Thk

Pump Mounting

1шт.

19

87590645

GEAR

Pump Drive

1шт.

20

80280248

LOCK WASHER

9/16"

1шт.

21

12164021

NUT,Thick Hex, M14, 1.50mm Pitch, 11.00mm High, Cl 10, ZND

1шт.

22

J905313

LEVER

Fuel Pump Brace

1шт.

23

86511479

BOLT,Hex Flg, M8 x 20mm

3шт.

24

A187990

TERMINAL CONNECTOR,Tin, 0.254 - 1.520mm

For Ref 7

1шт.
