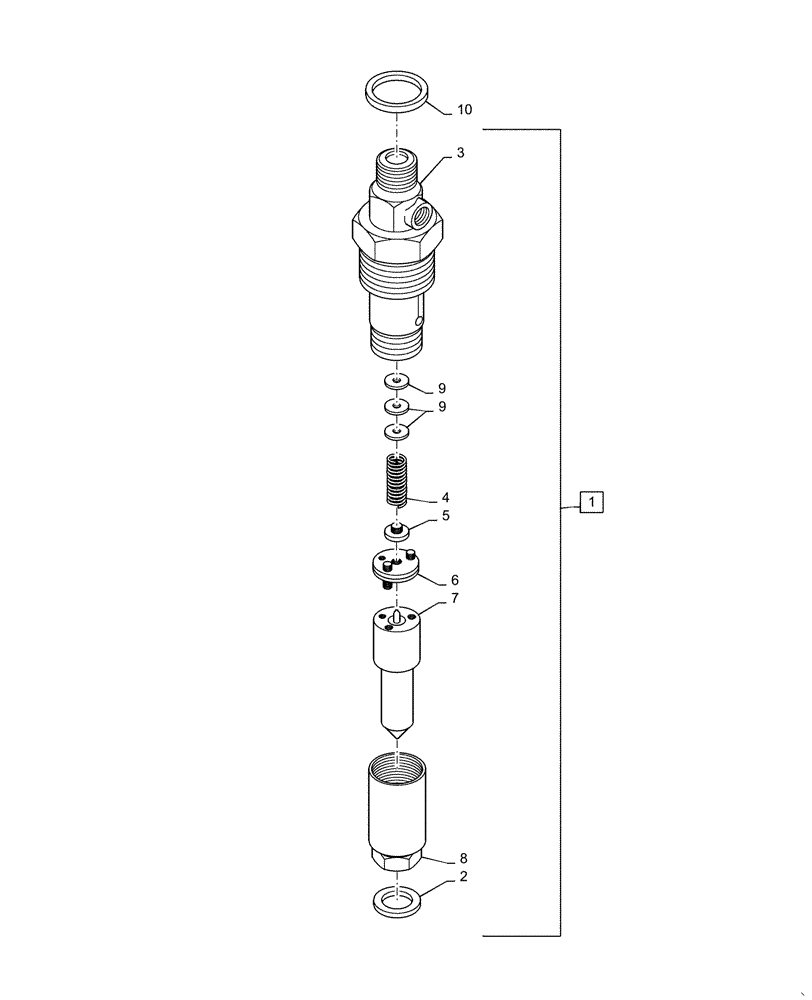

Запчасти Case IH RPZ145 (10.218.AF) - FUEL INJECTOR (10) - ENGINE

1

JR919339

REMAN-FUEL INJECTOR

Nozzle, Incl 2 - 10

6шт.

1

JC919339

CORE-FUEL INJECTOR

Return Number

6шт.

2

J900808

SEAL

Bottom, Injector, Incl with 1

1шт.

Whenever a Nozzle is Removed From the Cylinder Head, Bottom Gasket Must Be Replaced Before Nozzle is Installed in Cylinder Head

1шт.

3

NSS

NOT SOLD SEPARAT

Injector Body, Incl with 1

1шт.

4

NSS

NOT SOLD SEPARAT

Nozzle Pressure Spring, Incl with 1

1шт.

5

NSS

NOT SOLD SEPARAT

Nozzle Pressure Spring Seat, Incl with 1

1шт.

6

NSS

NOT SOLD SEPARAT

Nozzle Valve Stop, Incl with 1

1шт.

7

NSS

NOT SOLD SEPARAT

Nozzle Injector Tip, Incl with 1

1шт.

8

NSS

NOT SOLD SEPARAT

Nozzle Tip Cap Nut, Incl with 1

1шт.

9

1806233C1

SHIM,1.00mm Thk

Nozzle, Incl with 1

1шт.

9

1806234C1

SHIM,1.04mm Thk

Nozzle, Incl with 1

1шт.

9

1806235C1

SHIM,1.08mm Thk

Nozzle, Incl with 1

1шт.

9

1806236C1

SHIM,1.10mm Thk

Nozzle, Incl with 1

1шт.

9

1806237C1

SHIM,1.14mm Thk

Nozzle, Incl with 1

1шт.

9

1806238C1

SHIM,1.18mm Thk

Nozzle, Incl with 1

1шт.

9

1806239C1

SHIM,1.20mm Thk

Nozzle, Incl with 1

1шт.

9

1806240C1

SHIM,1.24mm Thk

Nozzle, Incl with 1

1шт.

9

1806241C1

SHIM,1.28mm Thk

Nozzle, Incl with 1

1шт.

9

1806242C1

SHIM,1.30mm Thk

Nozzle, Incl with 1

1шт.

9

1806243C1

SHIM,1.34mm Thk

Nozzle, Incl with 1

1шт.

9

1806244C1

SHIM,1.38mm Thk

Nozzle, Incl with 1

1шт.

9

1806245C1

SHIM,1.40mm Thk

Nozzle, Incl with 1

1шт.

9

1806246C1

SHIM,1.44mm Thk

Nozzle, Incl with 1

1шт.

9

1806247C1

SHIM,1.48mm Thk

Nozzle, Incl with 1

1шт.

9

1806248C1

SHIM,1.50mm Thk

Nozzle, Incl with 1

1шт.

9

1806249C1

SHIM,1.54mm Thk

Nozzle, Incl with 1

1шт.

9

1806250C1

SHIM,1.58mm Thk

Nozzle, Incl with 1

1шт.

9

1806251C1

SHIM,1.60mm Thk

Nozzle, Incl with 1

1шт.

9

1806252C1

SHIM,1.64mm Thk

Nozzle, Incl with 1

1шт.

9

1806253C1

SHIM,1.68mm Thk

Nozzle, Incl with 1

1шт.

9

1806254C1

SHIM,1.70mm Thk

Nozzle, Incl with 1

1шт.

9

1806255C1

SHIM,1.74mm Thk

Nozzle, Incl with 1

1шт.

9

1806256C1

SHIM,1.78mm Thk

Nozzle, Incl with 1

1шт.

9

1806257C1

SHIM,1.80mm Thk

Nozzle, Incl with 1

1шт.

9

1806258C1

SHIM,1.84mm Thk

Nozzle, Incl with 1

1шт.

9

1806259C1

SHIM,1.88mm Thk

Nozzle, Incl with 1

1шт.

9

1806260C1

SHIM,1.90mm Thk

Nozzle, Incl with 1

1шт.

9

1806261C1

SHIM,1.94mm Thk

Nozzle, Incl with 1

1шт.

9

1806262C1

SHIM,1.98mm Thk

Nozzle, Incl with 1

1шт.

10

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

Injector

6шт.
