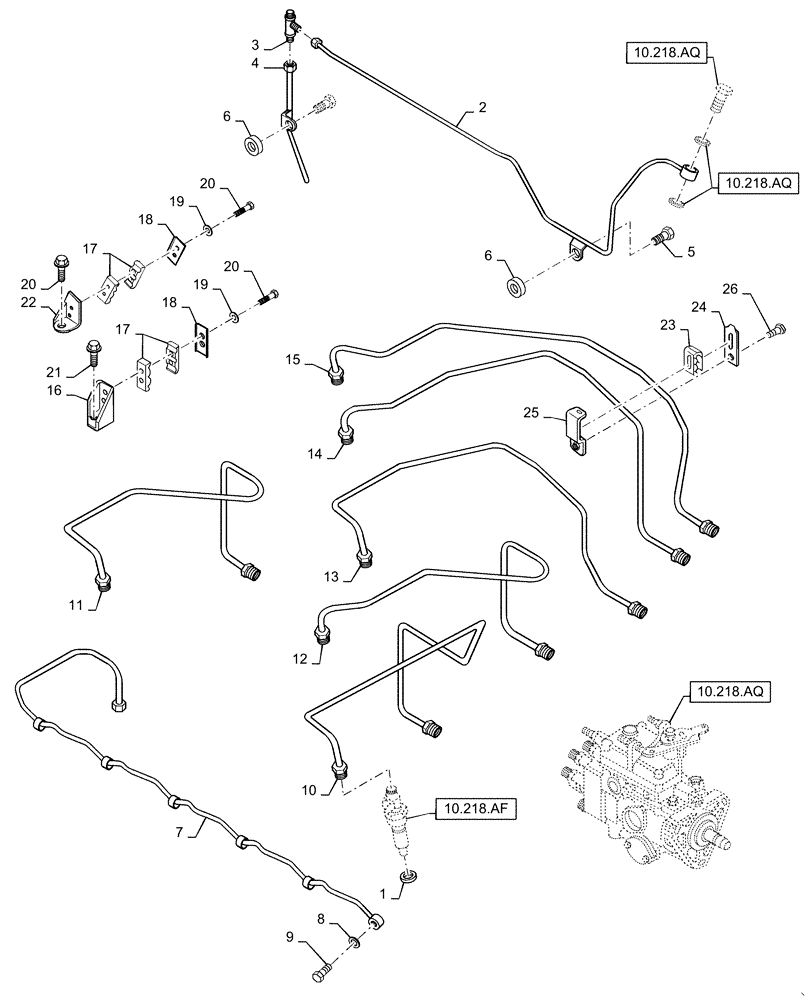

Запчасти Case IH RPZ145 (10.218.AE) - FUEL INJECTOR, LINES (10) - ENGINE

1

J900808

SEAL

Injector Gasket

6шт.

2

J905707

FUEL TUBE,4.76 mm OD

Drain

1шт.

3

222-121

TEE,3/16", Flex Tubing

1шт.

4

J905692

FUEL TUBE

Return

1шт.

5

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

6

J928759

SEALING WASHER

Tube Mounting Cushion

2шт.

7

J909696

TUBE

Fuel Drain Manifold

1шт.

8

J903380

SEAL

Connector

6шт.

9

J905307

BANJO BOLT,M6 x 1 x 14.30mm

Special, Drain

6шт.

10

J915419

FUEL TUBE,2 mm ID x 6.4 mm OD x 872.5 mm L

Injector, Number 1 Cylinder

1шт.

11

J915420

FUEL TUBE,2 mm ID x 6.4 mm OD x 872.5 mm L

Injector, Number 2 Cylinder

1шт.

12

J915421

FUEL TUBE,2 mm ID x 6.4 mm OD x 872.5 mm L

Injector, Number 3 Cylinder

1шт.

13

J907814

FUEL TUBE,2 mm ID x 6.4 mm OD x 872.5 mm L

Injector, Number 4 Cylinder

1шт.

14

J907815

FUEL TUBE,2 mm ID x 6.4 mm OD x 872 mm L

Injector, Number 5 Cylinder

1шт.

15

J907816

FUEL TUBE,2 mm ID x 6.4 mm OD x 872 mm L

Injector, Number 6 Cylinder

1шт.

16

J282942

BRACKET

Fuel Tube

2шт.

17

J917747

CLAMP

Tube Isolator

4шт.

18

J904519

SUPPORT

Plate Clamp

2шт.

19

86625261

WASHER,5.5mm ID x 10mm OD x 1mm Thk

4шт.

20

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

4шт.

21

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

3шт.

22

J917778

BRACE

Fuel Tube

1шт.

23

J916417

CLAMP

Fuel Supply Tube Insulator

1шт.

24

J916418

SUPPORT

Fuel Tube Brace

1шт.

25

J916420

SUPPORT

Fuel Tube Brace

1шт.

26

87016470

HEX SOC SCREW,M6 x 1 x 10mm, Cl 8.8

1шт.
