Запчасти Case IH RPZ145 (10.105.AB) - PISTON & CONNECTING ROD (10) - ENGINE

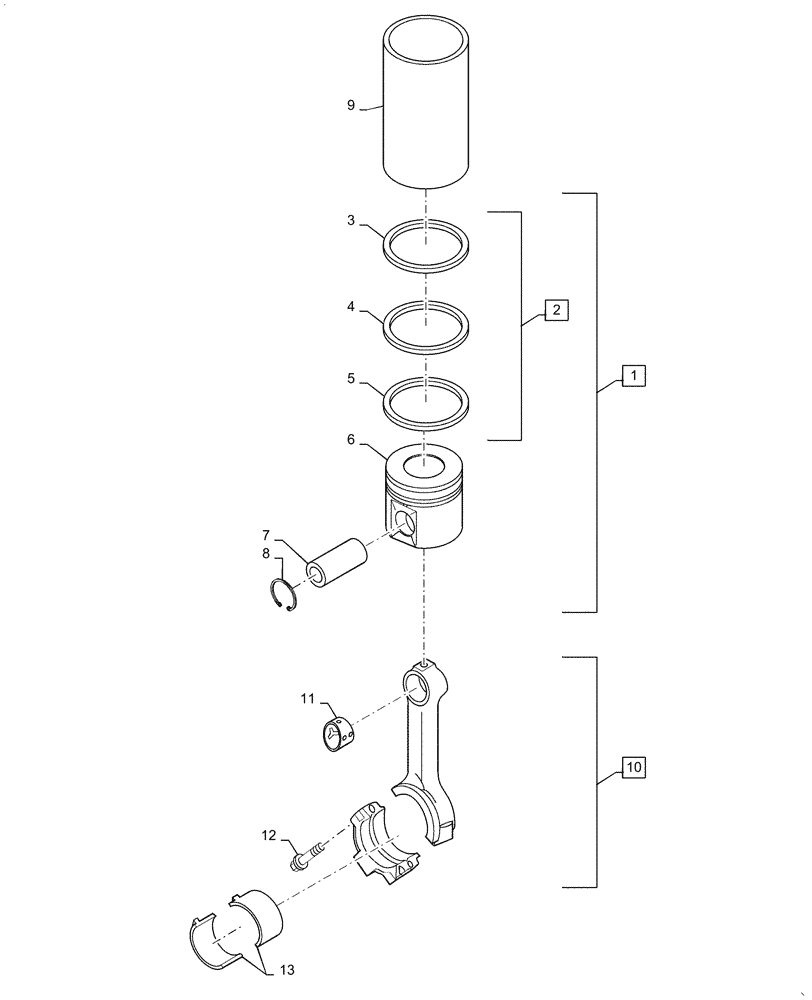

Схема запчастей Case IH RPZ145 - (10.105.AB) - PISTON & CONNECTING ROD (10) - ENGINE
12
13
7
2
4
3
8
11
9
10
6
1
5

Артикул

Название

Примечание

Количество

1

A77733

PISTON

Engine, Standard, Incl 2 - 8

6шт.

1

A77734

PISTON

Engine, 0.5mm Oversize, Incl 2 - 8

6шт.

1

A77735

PISTON

Engine, 1mm Oversize, Incl 2 - 8

6шт.

2

A77500

PISTON RING SET

Standard, Incl with 1, Incl 3 - 5

1шт.

2

A77501

PISTON RING SET

0.5mm Oversize, Incl with 1, Incl 3 - 5

1шт.

2

A77502

PISTON RING SET

1mm Oversize, Incl with 1, Incl 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Compression Ring, Top Incl with 1, 2

1шт.

4

NSS

NOT SOLD SEPARAT

Compression Ring, Middle, Incl with 1, 2

1шт.

5

NSS

NOT SOLD SEPARAT

Oil Ring, Botton, Incl with 1, 2

1шт.

6

NSS

NOT SOLD SEPARAT

Piston, Standard, Stamped 7156, Incl with 1

1шт.

6

NSS

NOT SOLD SEPARAT

Piston, 0.5mm Oversize, Stamped 7157, Incl with 1

1шт.

6

NSS

NOT SOLD SEPARAT

Piston, 1mm Oversize, Stamped 7158, Incl with 1

1шт.

7

J934048

PISTON PIN,40mm OD x 75.68mm L

Incl with 1

1шт.

8

J920691

SPECIAL RING

Pin Retainer, Incl with 1

2шт.

9

J904166AM

LINER

Piston Liner, Used Only in Engine Block Repair, When Liner is Installed, Use Only A77733 Piston Kit

1шт.

10

JR942581

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

6шт.

10

JC942581

CORE-ROD CONNECTING

Return Number

6шт.

10

84145405R

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

6шт.

10

84145405C

CORE-ROD CONNECTING

Return Number

6шт.

11

NSS

NOT SOLD SEPARAT

Piston Pin Rod Bushing, Incl with 10

1шт.

12

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

Incl with 10

2шт.

13

A77894

BEARING SET,69mm ID x 73.53mm OD x 31mm W

Rod, Upper and Lower, Standard

6шт.

13

A77466

BEARING SET

Rod, Upper and Lower, 0.25mm Oversize

6шт.

13

A77467

BEARING LINER

Rod, Upper and Lower, 0.50mm Oversize

6шт.

13

A77468

BEARING SET

Rod, Upper and Lower, 0.76mm Oversize

6шт.

13

A77469

BEARING SET

Rod, Upper and Lower, 1mm Oversize

6шт.

Выбрано товаров: 26
