(10.101.AA[02]) - VALVE GRIND GASKET KIT

Запчасти Case IH RPZ145 (10.101.AA[02]) - VALVE GRIND GASKET KIT (10) - ENGINE

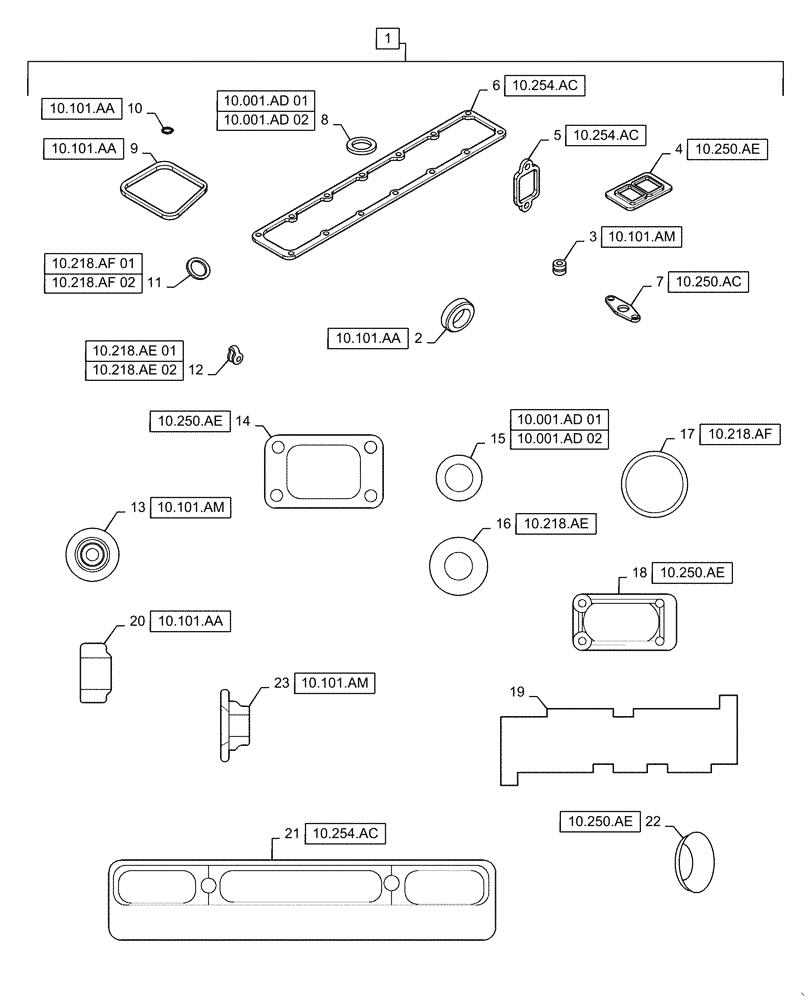

Схема запчастей Case IH RPZ145 - (10.101.AA[02]) - VALVE GRIND GASKET KIT (10) - ENGINE
10.218.af 02
10.001.ad 01
9
10.250.ae
15
13
10.218.ae 01
10.218.ae 02
10.250.ae
10.250.ae
6
2
18
23
10.254.ac
10.250.ae
20
19
4
10.001.ad 01
10.001.ad 02
10.254.ac
10.101.aa
3
1
10.101.aa
21
10.101.aa
11
10.218.af 01
12
5
10.218.ae
8
22
16
10.218.af
10.250.ac
10.001.ad 02
10.101.am
10.250.ae
10
10.101.am
7
14
10.254.ac
10.101.am
17
10.101.aa
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87434407

GASKET

Valve Grind Gasket Kit, Incl 2 - 23

1шт.

2

2852154

GASKET,50mm ID x 59.25mm OD x 16.23mm Thk

Thermostat Housing, Incl with 1

1шт.

3

J921640

SEAL

Valve, Incl with 1

12шт.

4

J901356

GASKET,0.5mm Thk

Turbocharger to Manifold, Incl with 1

1шт.

5

J927154

GASKET,0.38mm Thk

Exhaust Manifold, Incl with 1

6шт.

6

J938152

MANIFOLD GASKET

Intake, Incl with 1

1шт.

7

J937706AM

GASKET

Drain Tube, Incl with 1

1шт.

8

J902363AM

SEALING RING

Oil Fill Cap Seal, Incl with 1

6шт.

9

2852033

GASKET,7mm Thk

Rocker Cover Seal, Incl with 1

6шт.

10

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

Cover Bolt, Incl with 1

6шт.

11

J900808

SEAL

Injector, Incl with 1

6шт.

12

J903380

SEAL

Connector, Incl with 1

6шт.

13

87433962

SEAL

Valve Stem, Incl with 1

12шт.

14

J919369

GASKET,0.5mm Thk

Turbocharger, Incl with 1

1шт.

15

J936876

SEALING RING,30mm ID x 48mm OD x 2.8mm Thk

Incl with 1

1шт.

16

J937142

SEAL,7mm ID x 15mm OD x 1.5mm Thk

Injector Tip, Incl with 1

6шт.

17

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

Ring, Incl with 1

6шт.

18

J914856

GASKET,1.02mm Thk

Air Crossover Connection, Incl with 1

1шт.

19

87404692

GAUGE

Cylinder Head Bolt Length, Incl with 1

1шт.

20

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

Noise, Incl with 1

6шт.

21

J930426

GASKET

Air Crossover, Incl with 1

1шт.

22

86627735

SEAL KIT

3/8" Copper Flare, Incl with 1

2шт.

23

87433959

RETAINER

Valve Spring, Incl with 1

12шт.

Выбрано товаров: 23
