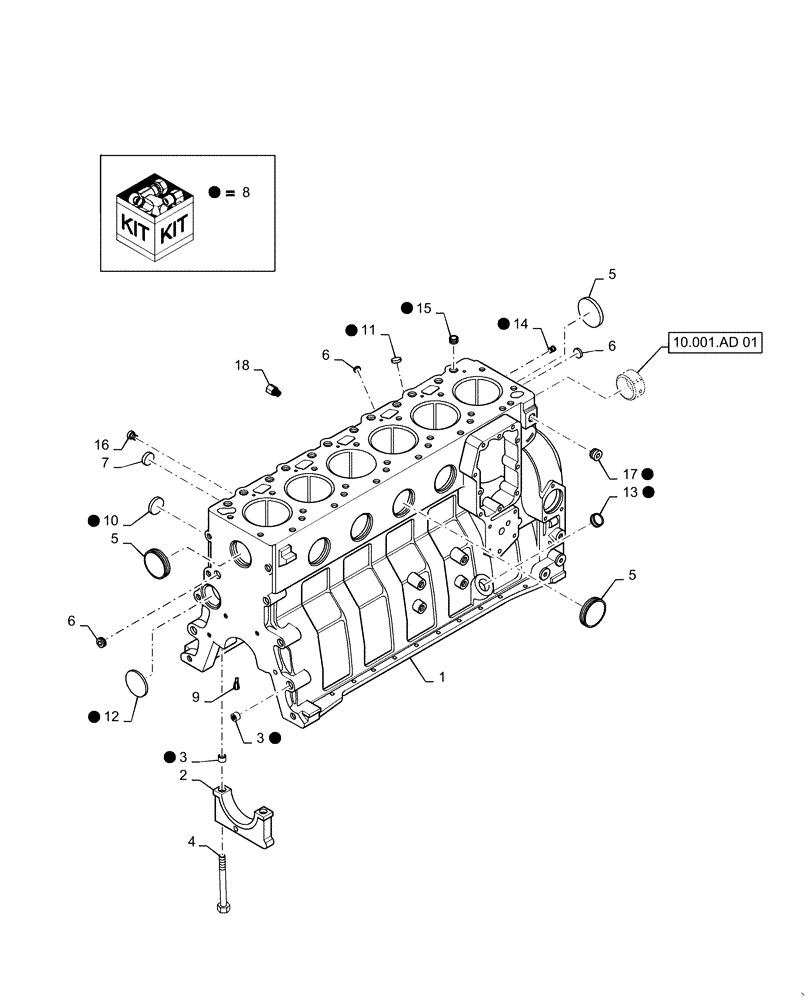

Запчасти Case IH RPZ145 (10.001.AD[02]) - CYLINDER BLOCK (10) - ENGINE

1

1989097C4R

REMAN-BASIC ENGINE

Block

1шт.

1

1989097C4C

CORE-BASIC ENGINE

Return Part Number

1шт.

1

JR933184

REMAN-SHORT ENGINE

Block Assy

1шт.

1

JC933184

CORE-SHORT ENGINE

Return Part Number

1шт.

2

87579994

BEARING ASSY

Cap, Main

7шт.

3

J900068

BEARING WASHER

Dowel Ring, 18mm OD, Incl with 8

14шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

Special, Bearing Cap

14шт.

5

75312133

PLUG

Expansion, 58mm OD

6шт.

6

J900956

PLUG

Expansion, 18mm OD

3шт.

7

86625124

PLUG,Cup, 1", Stainless

Expansion

4шт.

8

84301646

ENGINE OVERHAUL KIT

Cylinder Block Hardware, Incl 3, 10 - 15, 17

1шт.

9

J901020

NOZZLE CAP

Piston Cooling

6шт.

10

J900958

PLUG

Expansion, 32mm OD, Incl with 8

1шт.

11

J900955

PLUG

Expansion, 10mm OD, Incl with 8

2шт.

12

41-3038

PLUG,Exp, 2 3/8"

Welch, Incl with 8

1шт.

13

J920706

PLUG

Expansion, .886mm OD, Incl with 8

1шт.

14

J900257AM

WASHER

Dowel, Locating Pin, Incl with 8

2шт.

15

J902343AM

DOWEL

Ring, Dowel, 16mm OD, Incl with 8

2шт.

16

J906619

PLUG,1/8" - 27

Hex Socket Pipe, 1/8" - 27

2шт.

17

87034671

PLUG,Hex Soc, 1/2"-14

Incl with 8

1шт.

18

250838A2

HYD CONNECTOR

Water

1шт.
