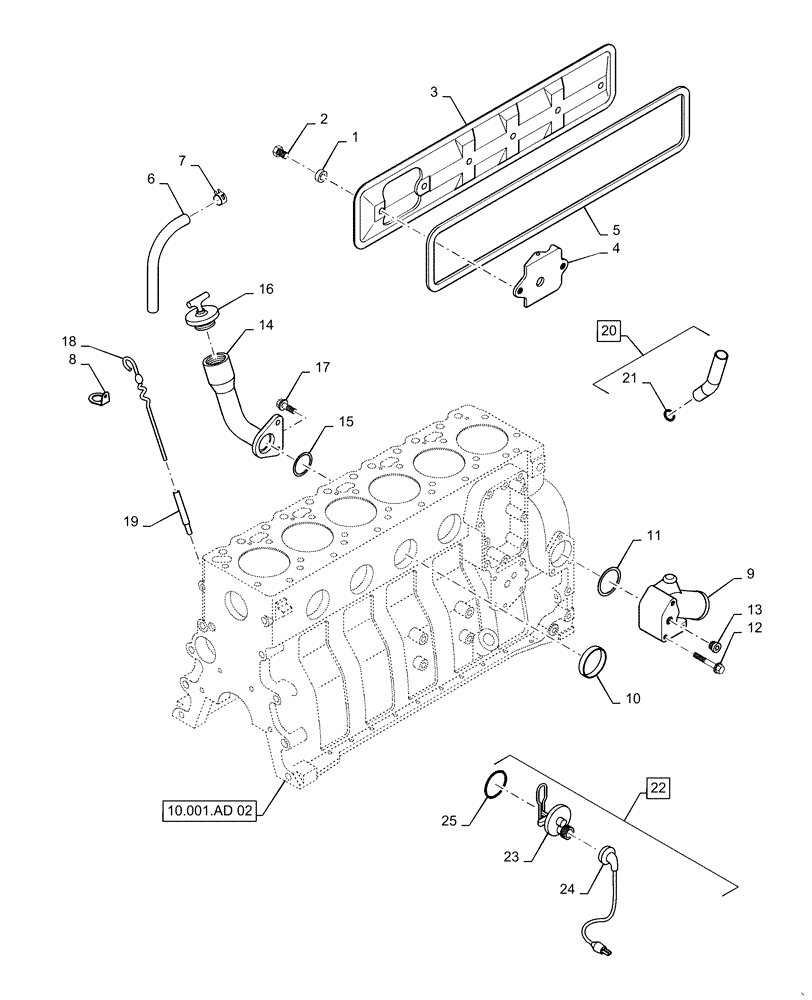

Запчасти Case IH RPZ145 (10.001.AD[01]) - CYLINDER BLOCK & RELATED PARTS (10) - ENGINE

1

J928759

SEALING WASHER

Cover Bolt

4шт.

2

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

4шт.

3

J990730

COVER

Tappet

1шт.

4

J907586

BAFFLE

Tappet Cover

1шт.

5

J284623

GASKET

Tappet Cover

1шт.

6

J918612

TUBE,360.00 mm

Breather

1шт.

7

J904230

CLAMP,25.4mm

Spring, Hose

1шт.

8

J928989AM

CLIP

Clip, P-Style Retaining

1шт.

9

J934879

INLET MANIFOLD

Water

1шт.

10

75312133

PLUG

Expansion, 58mm OD

6шт.

11

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

Water Inlet O-Ring

1шт.

12

86624961

BOLT,Hex, M10 x 75mm, Cl 10.9

3шт.

13

217-1031

REDUCER,3/4" - 14 NPT x 1/2" - 14 NPT

1шт.

14

J905440

TUBE

Oil Fill

1шт.

15

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

Ring

1шт.

16

47606501

FILLER CAP

Oil Fill

1шт.

17

86637640

BOLT,Hex, M12 x 55mm, Cl 10.9

2шт.

18

J905786

DIPSTICK

Engine Oil

1шт.

19

84260651

TUBE,Dipstick

Oil Dipstick

1шт.

20

J931973

TUBE,0.875" OD

Turbocharger Drain, Incl 21

1шт.

21

86625099

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

Incl with 20

1шт.

22

196803A1

KIT

Engine Block Heater, Incl 23 - 25

1шт.

23

NSS

NOT SOLD SEPARAT

Heater Element, Incl with 22

1шт.

24

87105748

ELECTRIC CABLE,120V, 15A

Engine Heater, Incl with 22

1шт.

25

J910517

O-RING

Heater Sealing, Incl with 22

1шт.
