Запчасти Case IH RPZ125 (90.100.AB) - GRILLE, HOOD AND PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

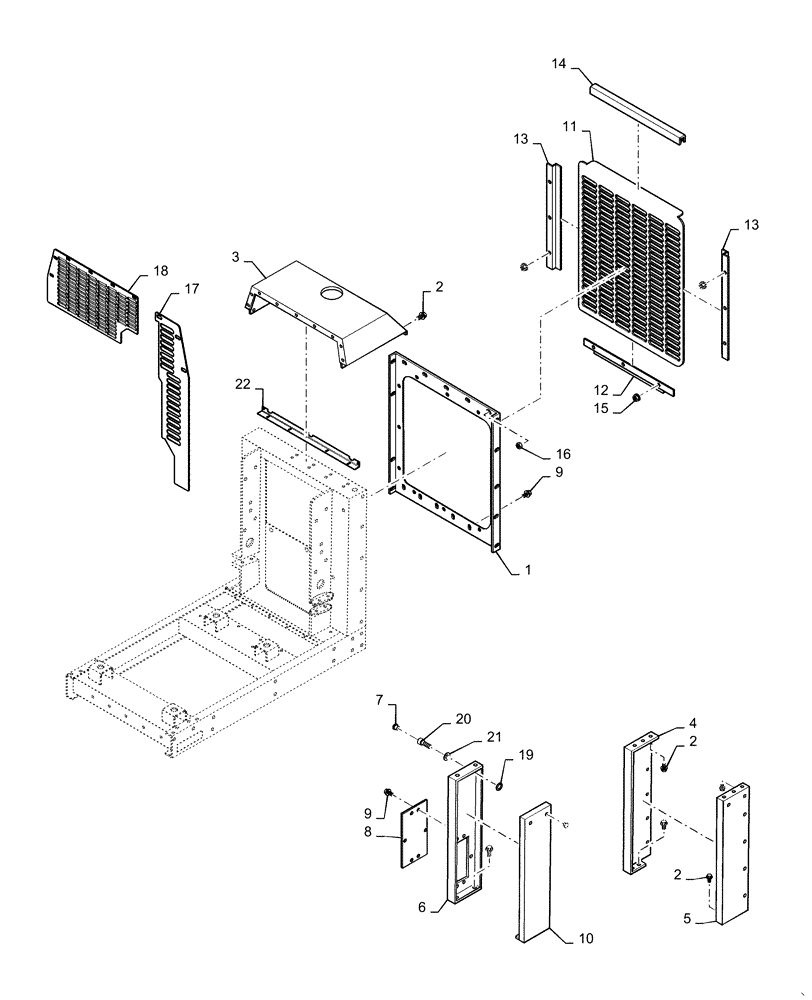

Схема запчастей Case IH RPZ125 - (90.100.AB) - GRILLE, HOOD AND PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS
18
6
22
7
11
4
12
8
19
20
21
9
10
14
13
13
3
2
16
1
2
17
2
15
9
5

Артикул

Название

Примечание

Количество

1

47613268

PANEL

Front

1шт.

1

47621489

PANEL

Front

1шт.

2

523292

BOLT,1/4" - 20 x 1.03" OAL

48шт.

3

277877A1

COVER

Front, Upper

1шт.

3

47621492

HOOD

Front, Upper

1шт.

4

281480A1

COVER

Side, Front, LH

1шт.

4

47621497

PANEL

Side, Front, LH

1шт.

5

281481A1

COVER

Side, Front, RH

1шт.

5

47621520

PANEL

Side, Front, RH

1шт.

6

240698A1

PANEL

Side, LH, Removable

1шт.

6

47621526

PANEL

Side, LH, Removable

1шт.

7

47613349

KNOB

Plastic Panel

4шт.

8

102321A1

PANEL

Access

1шт.

9

121-143

FLANGE BOLT,Hex Serr, #10" - 32 x 1/2"

15шт.

10

1347658C1

PANEL

Side, RH, Removable

1шт.

10

47621530

PANEL

Side, RH, Removable

1шт.

11

47613282

GRILLE

Screen

1шт.

12

47613300

BRACKET

Grille Lower

1шт.

13

47613333

BRACKET

Grille Side

2шт.

14

F42827

TRIM,2946.4mm L

Cut to Length, 116 IN

1шт.

15

20332

LOCK NUT,#10-32, GB

9шт.

16

87441708

NUT

1/4 - 20 - 165 Nutsert

21шт.

17

47673452

GUARD

Fan, RH

1шт.

18

47613348

GUARD

Fan, LH

1шт.

19

86625060

PUSH-ON NUT,Self, Threading, 1/4"

4шт.

20

86555967

HEX SOC SCREW,1/4" - 20 x 1 5/8"

4шт.

21

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

6шт.

22

47710541

BRACKET

Support

1шт.

Выбрано товаров: 28
