Запчасти Case IH RPZ125 (31.225.AA) - PTO CLUTCH (31) - IMPLEMENT POWER TAKE OFF

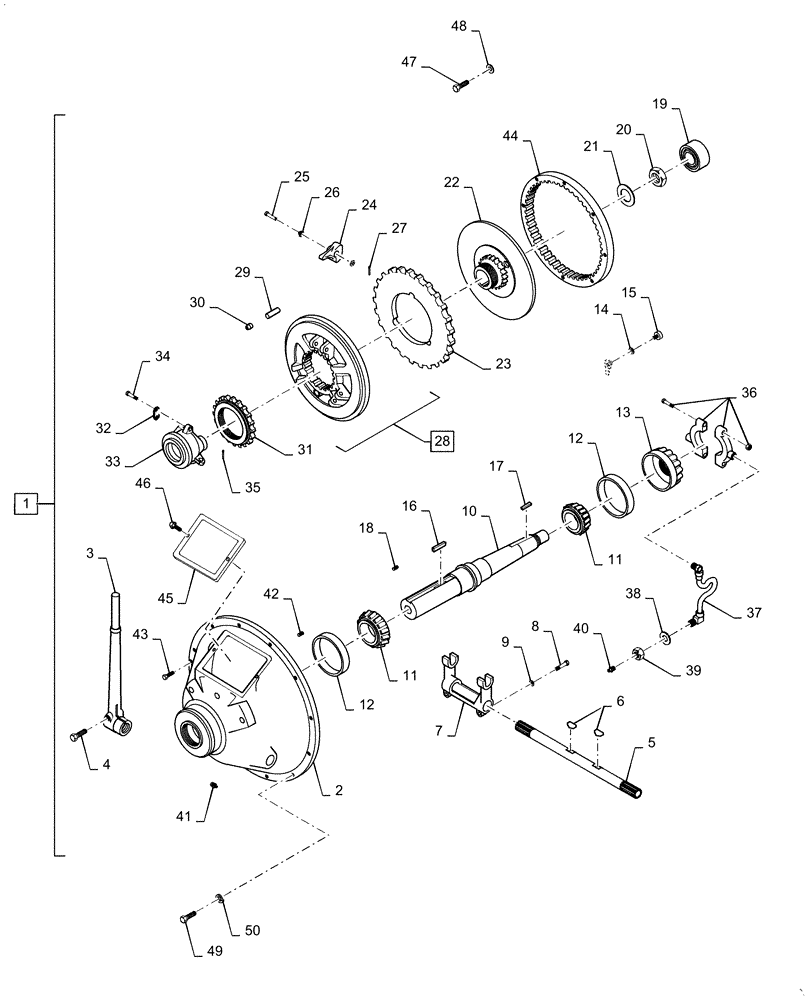

Схема запчастей Case IH RPZ125 - (31.225.AA) - PTO CLUTCH (31) - IMPLEMENT POWER TAKE OFF
23
11
47
27
4
41
36
31
42
48
12
30
13
32
3
16
15
21
34
20
45
39
14
35
12
10
29
37
46
28
11
38
33
17
26
49
24
25
6
22
43
9
18
44
8
7
2
40
5
50
1
19

Артикул

Название

Примечание

Количество

1

1347633C1R

REMAN-CLUTCH ASSY

PTO, Incl 2 - 46

1шт.

1

1347633C1C

CORE-CLUTCH ASSEMBLY

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Housing, Clutch, Incl in 1

1шт.

3

1347799C1

LEVER

Hand

1шт.

4

326-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

1шт.

5

A44136

SHAFT

Operating Lever

1шт.

6

126-113

WOODRUFF KEY,#61, 3/16" x 5/8", HT

2шт.

7

A10246

YOKE

Throwout

1шт.

8

326-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

2шт.

9

193-78

LOCK WASHER,3/8"

2шт.

10

A43199

SHAFT

Clutch

1шт.

11

86577033

ROLLER BEARING,63.5mm ID x 138.25mm OD x 36.54mm W

2шт.

12

163044

BEARING CUP,110.03mm OD x 18.82mm W

2шт.

13

A43327

RETAINER

1шт.

14

1347816C1

BEARING LOCK NUT

Retainer

1шт.

15

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

1шт.

16

A40256

KEY

Square

1шт.

17

A40305

KEY

Square

1шт.

18

9617020

PLUG,1/4" - 18 x 0.48"

1шт.

19

1347800C1

BEARING, BALL,30mm ID x 72mm OD x 30.16mm W

1шт.

20

A58595

NUT

1шт.

21

51200854

LOCK WASHER

Tab, Hub Nut

1шт.

22

A10453

PLATE

Hub

1шт.

23

9820504

CLUTCH, PRESSURE PLA

Driving, Organic

1шт.

24

138609

LEVER

Floating Plate

3шт.

25

138610

CLEVIS PIN,9.5mm OD x 60.2mm L

Pivot, Lever

3шт.

26

138611

SPRING WASHER

Spring, Pivot Pin

6шт.

27

A43383

SPLIT PIN

Cotter, Special

3шт.

28

A44723

PLATE

Floating, Incl 29 - 30

1шт.

29

258874

SPRING

Adj Lock Pin

1шт.

30

1347803C1

PIN

Adj Lock Ring

1шт.

31

138963

RING

PTO

1шт.

32

A10446

LINK

6шт.

33

V48459

SLEEVE

1шт.

34

A40192

AXLE PIN,8mm OD x 26.16mm L

6шт.

35

80756

COTTER PIN,1/8" x 3/4"

1шт.

36

A40245

COLLAR

Assy, Sleeve

1шт.

37

1347801C1

HOSE

Flexible

1шт.

38

193-84

LOCK WASHER,5/8"

1шт.

39

408

NUT,5/8" - 18, Gr 5

1шт.

40

87414

LUBE NIPPLE,1/4" - 28

Grease, Straight

2шт.

41

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

Grease, Straight

2шт.

42

178-639

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

1шт.

43

413-88

BOLT,Hex, 1/2" - 13 x 1/2", Gr 5

2шт.

44

51200863

RING

Drive

1шт.

45

NSS

NOT SOLD SEPARAT

Plate, Name and Inspection, Incl with 1

1шт.

46

193-515

SCREW,SEMS, But Hd, 1/4"-20 x 1/2"

Tooth Lock, External

2шт.

47

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

8шт.

48

80680

LOCK WASHER,3/8 0.381 CST ZND

8шт.

49

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

12шт.

50

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

Lock

12шт.

51

47704965

HANDLE

Rubber, Not Illustrated

1шт.

Выбрано товаров: 52
