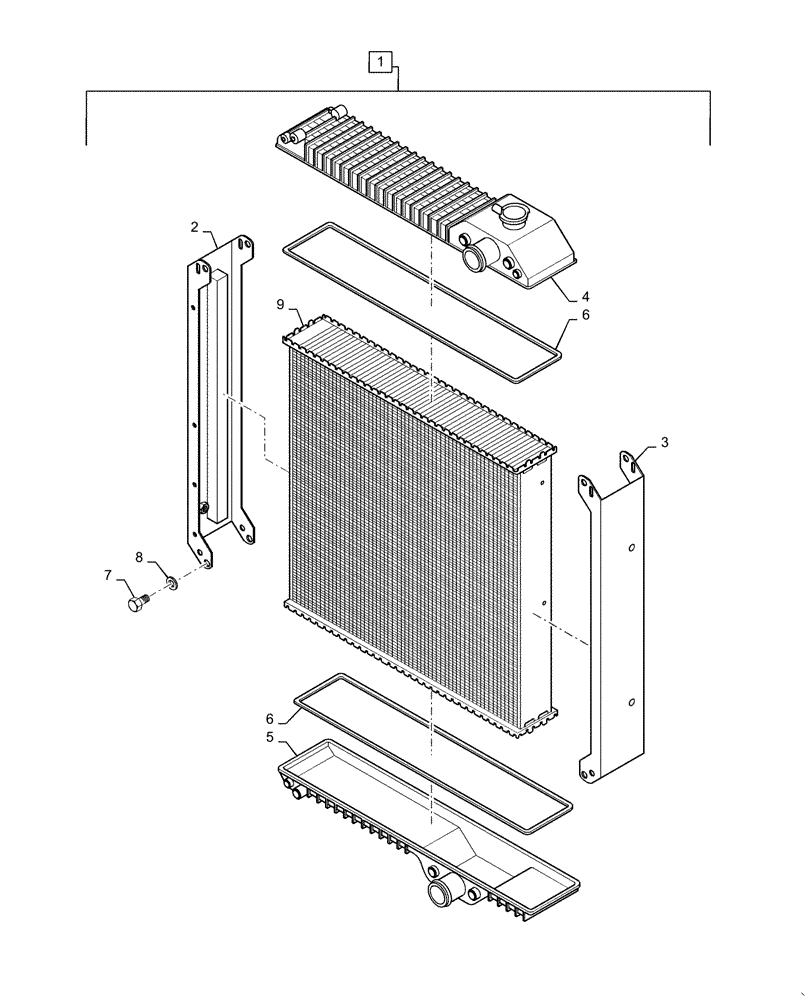

Запчасти Case IH RPZ125 (10.400.BE) - RADIATOR, ASSY (10) - ENGINE

1

244295A1

RADIATOR

Assy, Incl 2 - 7

1шт.

2

177155A2

CHANNEL

LH, Side Member, Incl with 1

1шт.

3

177130A2

CHANNEL

RH, Side Member, Incl with 1

1шт.

4

177127A1

TANK

Radiator Top, Incl with 1

1шт.

5

177129A1

TANK

Radiator Bottom, Incl with 1

1шт.

6

254409A1

GASKET,3.15mm Thk

Tank, Incl with 1

2шт.

7

336199

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

8шт.

8

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

9

NSS

NOT SOLD SEPARAT

Radiator Core, Incl with 1

1шт.
