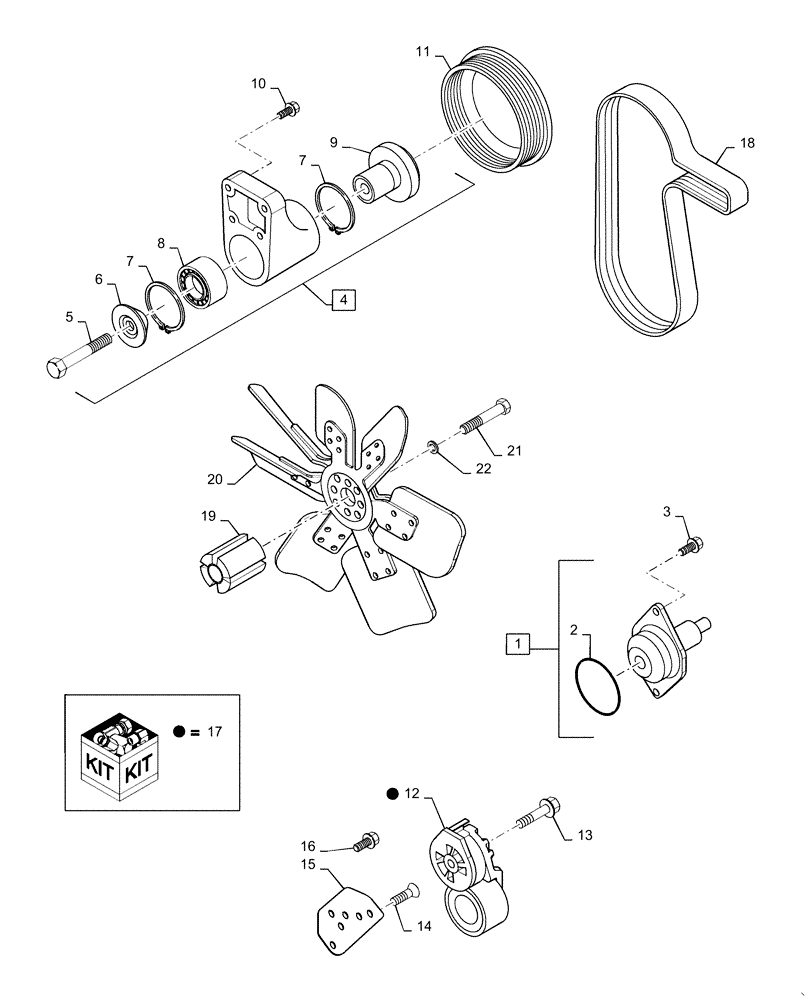

Запчасти Case IH RPZ125 (10.400.BB) - WATER PUMP SYSTEM (10) - ENGINE

1

J286278R

REMAN-WATER PUMP

Incl 2

1шт.

1

J286278C

CORE-WATER PUMP

Return Number

1шт.

2

86625101

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

Incl with 1

1шт.

3

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

4

J913433

BRACKET

Fan Pulley, Incl 5 - 10

1шт.

5

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

1шт.

6

J923044

RETAINER

Fan Hub

1шт.

7

34039

SNAP RING,2.50", Int, #250

Internal Retaining

2шт.

8

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

1шт.

9

J911924

HUB

Fan

1шт.

10

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

Fan Bracket to Cylinder Block

4шт.

11

J914462

PULLEY,163mm OD

Fan

1шт.

12

87326910

BELT TENSIONER

1шт.

13

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

Belt Tensioner Mounting

1шт.

14

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

1шт.

15

J925207

SUPPORT

Belt Tensioner

1шт.

16

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

1шт.

17

A77817

KIT

Belt Tensioner Pulley

1шт.

18

J911557

V-BELT,27.92mm W x 1422.4mm L, 8 Ribs

Fan

1шт.

19

A189318

SPACER

Fan Mounting

1шт.

20

437611A1

FAN

Engine

1шт.

21

86508574

BOLT,Hex, M10 x 120mm, Cl 8.8

4шт.

22

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.
