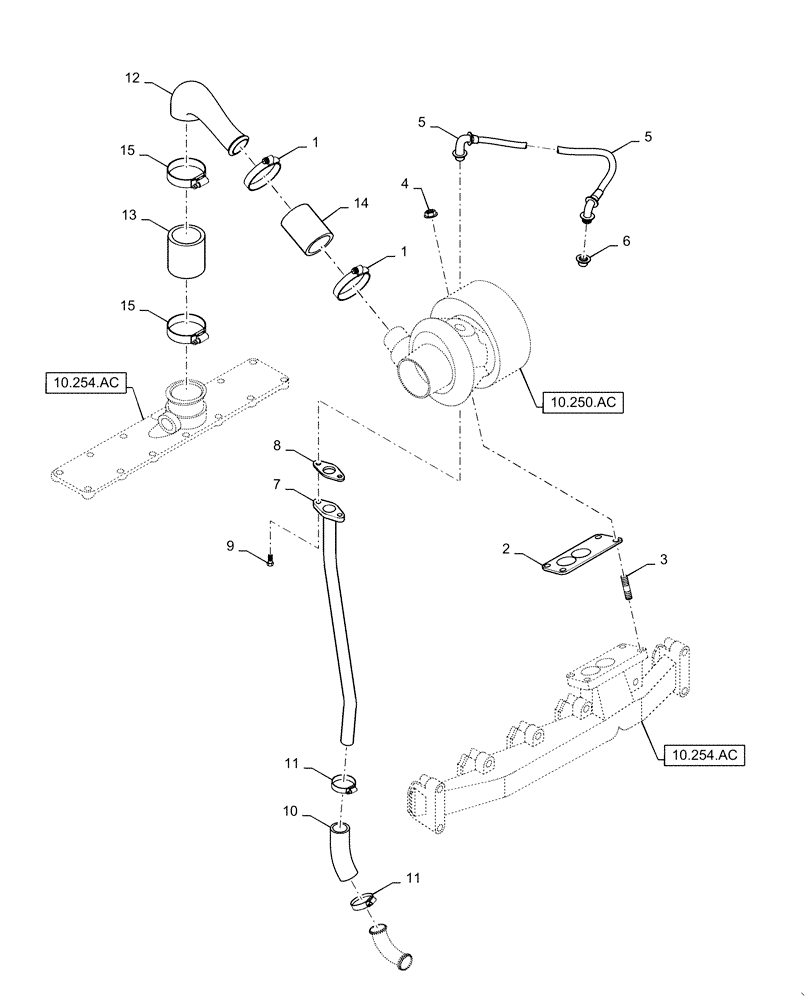

Запчасти Case IH RPZ125 (10.250.AE) - TURBOCHARGER & RELATED PARTS (10) - ENGINE

1

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

2шт.

2

J901356

GASKET,0.5mm Thk

Turbocharger to Manifold

1шт.

3

J818823

STUD

Tubocharger Mounting

4шт.

4

4899086

FLANGE NUT,Hex, M10 x 1.5

Turbocharger Mounting

4шт.

5

J909548

HOSE

Turbocharger Oil Supply

1шт.

6

A77457

FITTING

Supply Hose

1шт.

7

J934093

TUBE

Oil Drain

1шт.

8

J937706AM

GASKET

Drain Tube

1шт.

9

86511479

BOLT,Hex Flg, M8 x 20mm

2шт.

10

J286499

HOSE

Turbocharger Oil Drain

1шт.

11

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

2шт.

12

J906973

AIR INTAKE TUBE,42 - 54.7 mm ID x 50.8 - 63.5 mm OD

Manifold

1шт.

13

87439339

HOSE,62.50 mm ID x 90.00 mm

1шт.

14

87439340

HOSE,50.00 mm ID x 80.00 mm

1шт.

15

86625031

CLAMP,52.32mm ID

2шт.
