Запчасти Case IH RPZ125 (10.250.AC) - TURBOCHARGER (10) - ENGINE

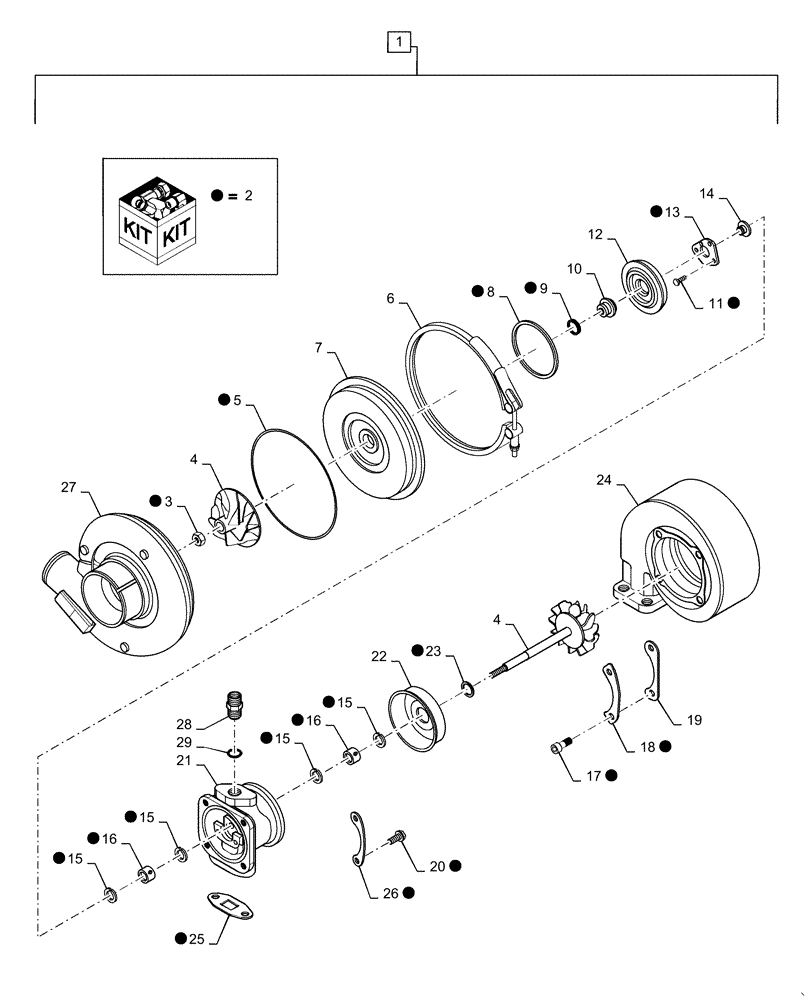

Схема запчастей Case IH RPZ125 - (10.250.AC) - TURBOCHARGER (10) - ENGINE
20
2
16
29
2
16
22
15
2
3
23
2
7
5
2
10
25
2
2
2
27
15
2
17
2
1
21
8
26
2
4
24
2
2
2
13
2
2
2
6
15
18
15
2
19
14
4
9
11
12
2
28
2

Артикул

Название

Примечание

Количество

1

JR802289

REMAN-TURBOCHARGER

Engine, Incl 3 - 29

1шт.

1

JC528741

CORE-TURBOCHARGER

Return Part Number

1шт.

2

J4027309

PACKAGE, REPAIR

Turbocharger Overhaul Kit, Incl 3, 5, 8 - 9, 11, 13, 15 - 18, 20, 23, 25 - 26

1шт.

3

NSS

NOT SOLD SEPARAT

Hex Lock Nut, Incl with 1, 2

1шт.

4

NSS

NOT SOLD SEPARAT

Rotor Assy, Incl with 1

1шт.

5

NSS

NOT SOLD SEPARAT

Compressor Housing Seal, Incl with 1, 2

1шт.

6

NSS

NOT SOLD SEPARAT

Compressor Clamp, Incl with 1

1шт.

7

NSS

NOT SOLD SEPARAT

Compressor Diffuser, Incl with 1

1шт.

8

NSS

NOT SOLD SEPARAT

Diffuser Seal, Incl with 1, 2

1шт.

9

NSS

NOT SOLD SEPARAT

Compressor Slit Ring Seal, Incl with 1, 2

1шт.

10

NSS

NOT SOLD SEPARAT

Oil Slinger, Incl with 1

1шт.

11

NSS

NOT SOLD SEPARAT

Flat Head Torx Screw, Incl with 1, 2

3шт.

12

NSS

NOT SOLD SEPARAT

Oil Baffle, Incl with 1

1шт.

13

NSS

NOT SOLD SEPARAT

Thrust Bearing, Incl with 1, 2

1шт.

14

NSS

NOT SOLD SEPARAT

Thrust Collar, Incl with 1

1шт.

15

NSS

NOT SOLD SEPARAT

Snap Ring, Incl with 1, 2

4шт.

16

NSS

NOT SOLD SEPARAT

Impeller Shaft Bearing, Incl with 1, 2

2шт.

17

NSS

NOT SOLD SEPARAT

Cap Bolt, Incl with 1, 2

4шт.

18

NSS

NOT SOLD SEPARAT

Turbine Housing Lock Plate, Incl with 1, 2

2шт.

19

NSS

NOT SOLD SEPARAT

Turbine Housing Clamping Plate, Incl with 1

2шт.

20

NSS

NOT SOLD SEPARAT

Hex Lock Bolt and Washer Assy, Incl with 1, 2

4шт.

21

NSS

NOT SOLD SEPARAT

Turbine Bearing Housing, Incl with 1

1шт.

22

NSS

NOT SOLD SEPARAT

Turbine Heat Shield, Incl with 1

1шт.

23

NSS

NOT SOLD SEPARAT

Turbine Piston Ring Seal, Incl with 1, 2

1шт.

24

NSS

NOT SOLD SEPARAT

Turbine Housing, Incl with 1

1шт.

25

NSS

NOT SOLD SEPARAT

Oil Drain Gasket, Incl with 1, 2

1шт.

26

NSS

NOT SOLD SEPARAT

Turbine Lock Plate, Incl with 1, 2

2шт.

27

NSS

NOT SOLD SEPARAT

Compressor Housing, Incl with 1

1шт.

28

J919687

HYD CONNECTOR

Incl with 1

1шт.

29

129270

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

Incl with 1

1шт.

Выбрано товаров: 30
