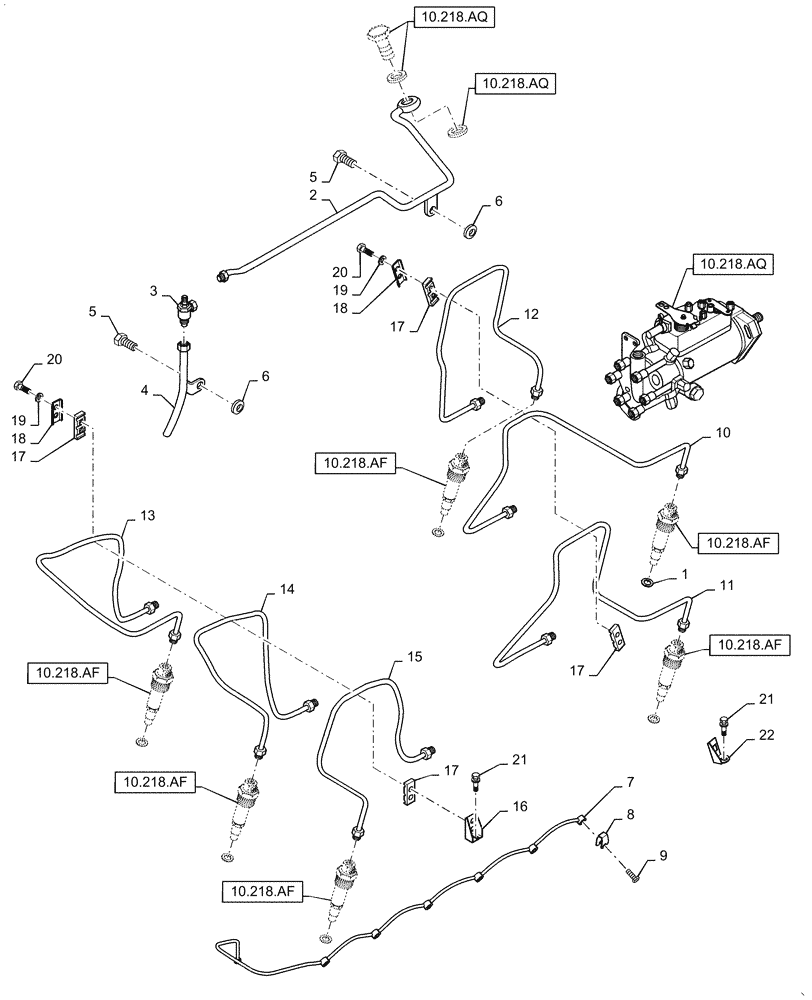

Запчасти Case IH RPZ125 (10.218.AE) - FUEL INJECTOR, LINES (10) - ENGINE

1

J900808

SEAL

Injector

6шт.

2

J920889

FUEL TUBE

Drain

1шт.

3

222-121

TEE,3/16", Flex Tubing

1шт.

4

J905692

FUEL TUBE

Return Tee to Fuel Tank

1шт.

5

86511479

BOLT,Hex Flg, M8 x 20mm

2шт.

6

J928759

SEALING WASHER

Cover Bolt

2шт.

7

J909696

TUBE

Fuel Drain, Manifold

1шт.

8

J903380

SEAL

Connector

6шт.

9

J905307

BANJO BOLT,M6 x 1 x 14.30mm

Special

6шт.

10

J909438

FUEL TUBE,2 mm ID x 6.4 mm OD x 746 mm L

Injector, Number 1 Cylinder

1шт.

11

J903486

FUEL TUBE,2 mm ID x 6.4 mm OD x 747.5 mm L

Injector, Number 2 Cylinder

1шт.

12

J903487

FUEL TUBE,2 mm ID x 6.4 mm OD x 741.8 mm L

Injector, Number 3 Cylinder

1шт.

13

J903488

FUEL TUBE,2 mm ID x 6.4 mm OD x 747.3 mm L

Injector, Number 4 Cylinder

1шт.

14

J903489

FUEL TUBE,2 mm ID x 6.4 mm OD x 748.1 mm L

Injector, Number 5 Cylinder

1шт.

15

J903490

FUEL TUBE,2 mm ID x 6.4 mm OD x 745.3 mm L

Injector, Number 6 Cylinder

1шт.

16

J282942

BRACKET

Fuel Tube

2шт.

17

J917747

CLAMP

Tube Isolator

4шт.

18

J904519

SUPPORT

Clamp Plate

2шт.

19

86625261

WASHER,5.5mm ID x 10mm OD x 1mm Thk

4шт.

20

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

4шт.

21

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

3шт.

22

J917778

BRACE

Fuel Tube

1шт.
