Запчасти Case IH RPZ125 (10.106.AA) - CAMSHAFT (10) - ENGINE

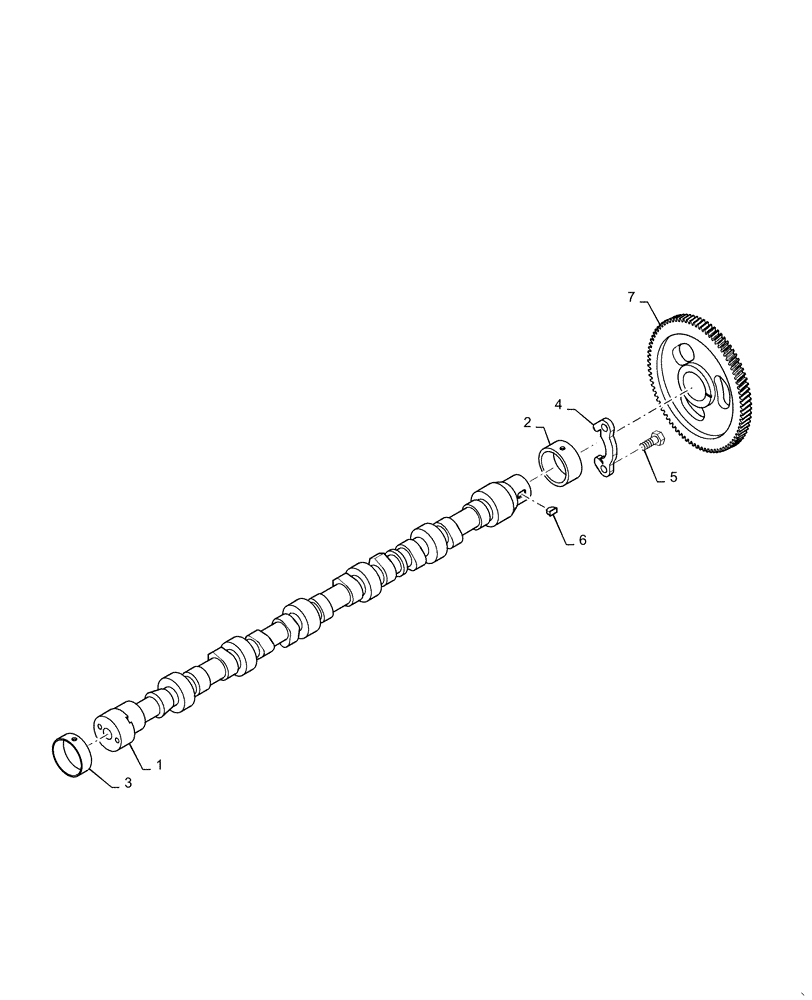

Схема запчастей Case IH RPZ125 - (10.106.AA) - CAMSHAFT (10) - ENGINE
5
1
6
7
3
2
4

Артикул

Название

Примечание

Количество

1

J929042R

REMAN-CAMSHAFT

Engine

1шт.

1

J929042C

CORE-CAMSHAFT

Return Number

1шт.

2

J901306

BUSHING

Camshaft, Front, Standard

1шт.

2

J904369

BUSHING

Camshaft, Front Oversize (58mm OD)

1шт.

3

J903242AM

BUSHING

Camshaft Bushing, Intermediate and Rear

6шт.

When the Intermediate and Rear Cylinder Block Camshaft Bores Are Reamed in Engine Repair, Use J903242AM Bushings

1шт.

4

J927155

SUPPORT

Thrust, Camshaft

1шт.

5

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

6

10205820

WOODRUFF KEY,4mm x 6.50mm x 15.72mm

Camshaft Gear

1шт.

7

J929028AM

GEAR

Camshaft Gear

1шт.
