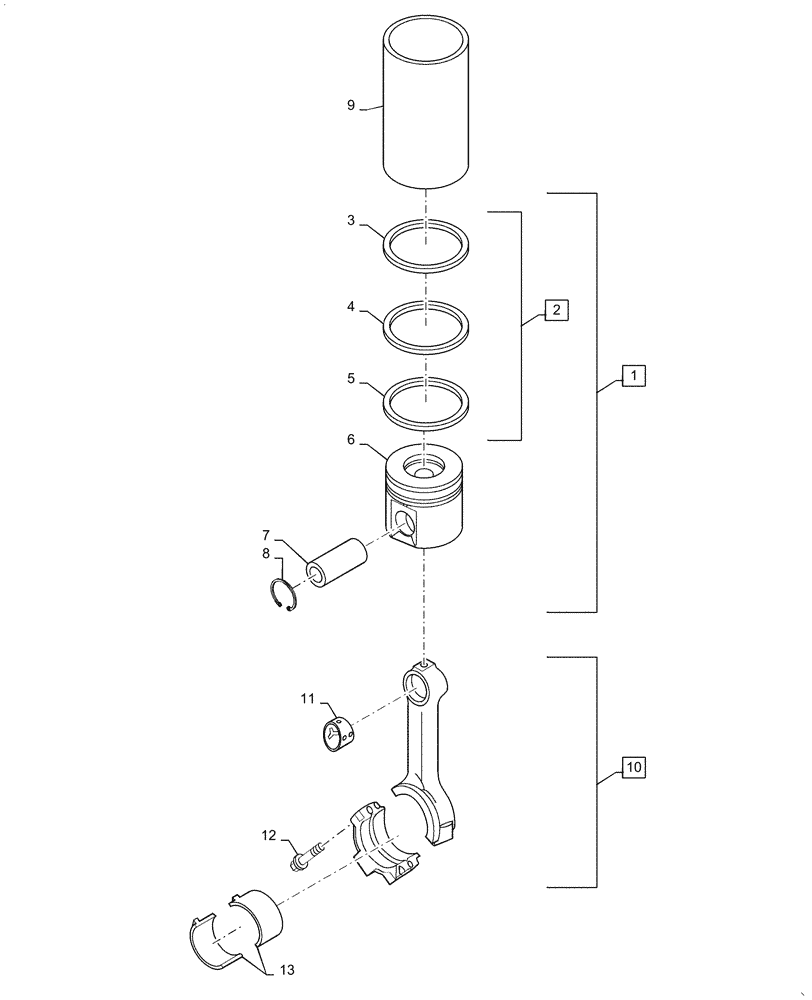

Запчасти Case IH RPZ125 (10.105.AB) - PISTON & CONNECTING ROD (10) - ENGINE

1

A77730

PISTON,104MM PISTON DIAMETER

Engine, Standard, Incl 2 - 8

6шт.

1

A77638

PISTON

Engine, 0.5mm Oversize, Incl 2 -8

6шт.

1

A77732

PISTON

Engine, 1mm Oversize, Incl 2 - 8

6шт.

2

A77500

PISTON RING SET

Standard, Incl with 1, Incl 3 - 5

1шт.

2

A77501

PISTON RING SET

0.5mm Oversize, Incl with 1, Incl 3 - 5

1шт.

2

A77502

PISTON RING SET

1mm Oversize, Incl with 1, Incl 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Compression Ring, Top, Incl with 1, 2

1шт.

4

NSS

NOT SOLD SEPARAT

Compression Ring, Middle, Incl with 1, 2

1шт.

5

NSS

NOT SOLD SEPARAT

Oil Ring, Bottom, Incl with 1, 2

1шт.

6

NSS

NOT SOLD SEPARAT

Piston, Standard, Stamped 7163, Incl with 1

1шт.

6

NSS

NOT SOLD SEPARAT

Piston, 0.5mm Oversize, Stamped 8815, Incl with 1

1шт.

6

NSS

NOT SOLD SEPARAT

Piston, 1mm Oversize, Stamped 8816, Incl with 1

1шт.

7

J934048

PISTON PIN,40mm OD x 75.68mm L

Incl with 1

1шт.

8

J920691

SPECIAL RING

Retainer Pin, Incl with 1

2шт.

9

J904166AM

LINER

Piston Liner, Used Only in Engine Block Repair, When Liner is Installed, Use Only A77730 Piston Kit

1шт.

10

JR942581

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

6шт.

10

JC942581

CORE-ROD CONNECTING

Return Number

6шт.

10

84145405R

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

6шт.

10

84145405C

CORE-ROD CONNECTING

Return Number

6шт.

11

NSS

NOT SOLD SEPARAT

Rod to Piston Pin Bushing, Incl with 10

1шт.

12

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

Special, Incl with 10

2шт.

13

A77894

BEARING SET,69mm ID x 73.53mm OD x 31mm W

Connecting Rod, Upper and Lower, Standard

6шт.

13

A77466

BEARING SET

Connecting Rod, Upper and Lower, 0.25mm Undersize

6шт.

13

A77467

BEARING LINER

Connecting Rod, Upper and Lower, 0.5mm Undersize

6шт.

13

A77468

BEARING SET

Connecting Rod, Upper and Lower, 0.76mm Undersize

6шт.

13

A77469

BEARING SET

Connecting Rod, Upper and Lower, 1mm Undersize

6шт.
