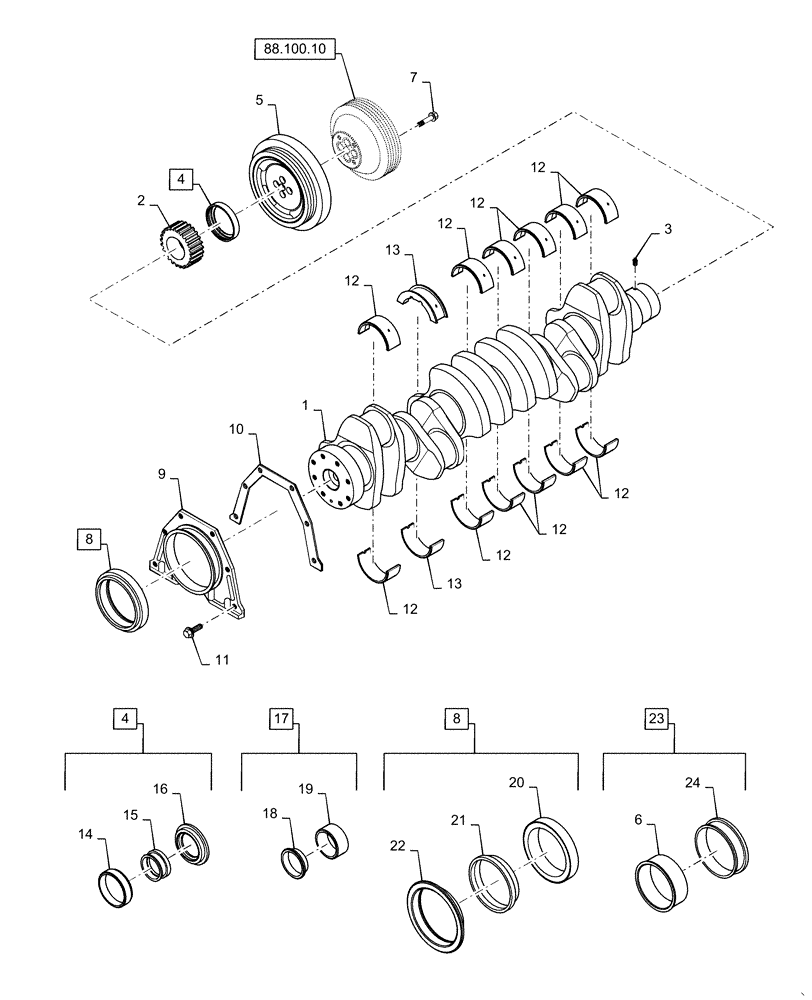

Запчасти Case IH RPZ125 (10.103.AA) - CRANKSHAFT & PULLEY (10) - ENGINE

1

J929037

CRANKSHAFT

Engine

1шт.

2

J929027

PINION

Crankshaft Gear

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

Dowel

1шт.

4

J904353AM

GASKET KIT

Front Crankshaft Oil Seal, Incl 14 - 16

1шт.

5

J958258

DAMPER

Crankshaft Dampener Pulley

1шт.

6

NSS

NOT SOLD SEPARAT

Installation Tool, Incl with 23

1шт.

7

J903857

BOLT,Hex, M12 x 1.25 x 36mm

4шт.

8

J934486

SERVICE KIT

Rear Crankshaft Oil Seal, Incl 20 - 22

1шт.

9

J936904

REAR COVER

Seal Retainer

1шт.

10

J938159

GASKET

Seal Retainer

1шт.

11

87015915

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8, Full Thd

6шт.

12

84282771

BEARING LINER,Main, Incl Upper and Lower, STD

Main, Upper and Lower, Standard

1шт.

12

84282772

BEARING SET,Main, Incl Upper and Lower, 0.25mm

Main, Upper and Lower, 0.25mm Undersize

1шт.

12

84282773

BEARING,84.11mm ID x 89.54mm OD x 28.9mm W

Main, Upper and Lower, 0.5mm Undersize

1шт.

12

84282774

BEARING

Main, Upper and Lower, 0.75mm Undersize

1шт.

12

84282775

BEARING,83.66mm ID x 89.54mm OD x 28.9mm W

Main, Upper and Lower, 1mm Undersize

1шт.

13

84282776

BEARING SET

Thrust Bearing, Main, Upper and Lower, Standard

1шт.

13

84282777

BEARING

Thrust, Main, Upper and Lower, 0.25mm Undersize

1шт.

13

84282778

BEARING,88.01mm ID x 114.15mm OD x 37.33mm W

Thrust, Main, Upper and Lower, 0.5mm Undersize

1шт.

13

84282779

BEARING

Thrust, Main, Upper and Lower, 0.75mm Undersize

1шт.

13

84282780

BEARING

Thrust, Main, Upper and Lower, 1mm Undersize

1шт.

14

NSS

NOT SOLD SEPARAT

Front Oil Seal, Incl with 4

1шт.

15

NSS

NOT SOLD SEPARAT

Installation Tool, Incl with 4

1шт.

16

NSS

NOT SOLD SEPARAT

Installation Tool, Incl with 4

1шт.

17

A77890

SEAL PACKAGE

Front Crankshaft Wear Sleeve, Incl 18 - 19

1шт.

18

NSS

NOT SOLD SEPARAT

Wear Sleeve, Incl with 17

1шт.

19

NSS

NOT SOLD SEPARAT

Installation Tool, Incl with 17

1шт.

20

NSS

NOT SOLD SEPARAT

Rear Oil Seal, Incl with 8

1шт.

21

NSS

NOT SOLD SEPARAT

Installation Tool, Incl with 8

1шт.

22

NSS

NOT SOLD SEPARAT

Installation Tool, Incl with 8

1шт.

23

A77810AM

SERVICE KIT

Rear Crankshaft Wear Sleeve, Incl 24 - 25

1шт.

24

NSS

NOT SOLD SEPARAT

Wear Sleeve, Incl with 23

1шт.
