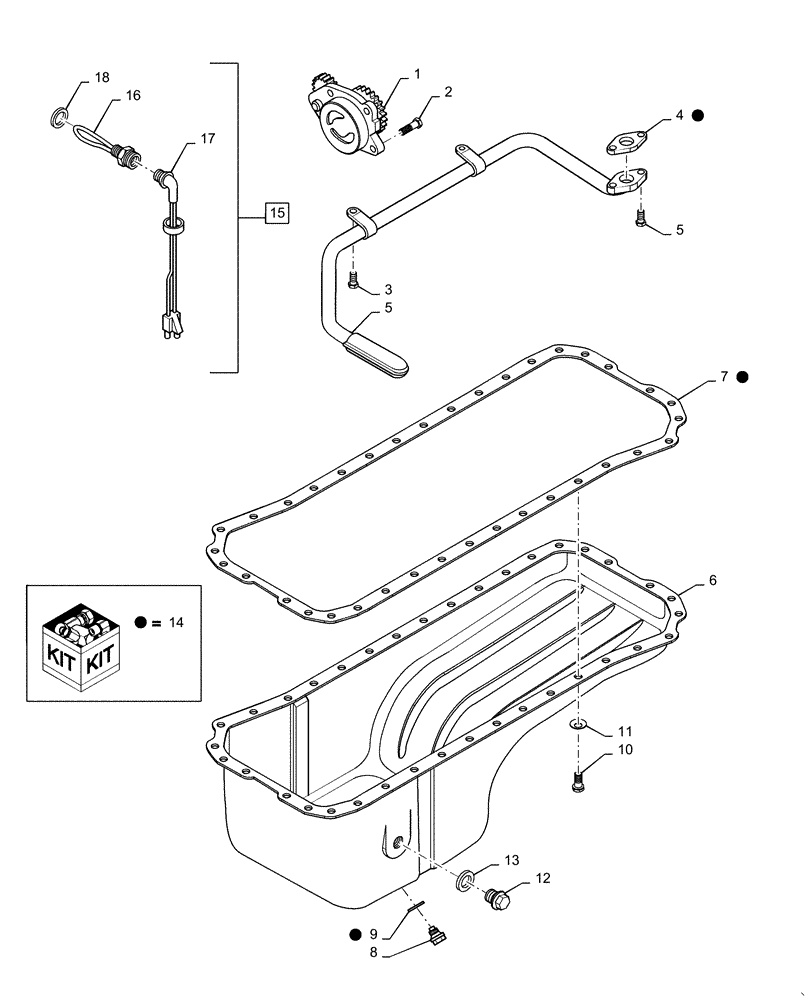

Запчасти Case IH RPZ125 (10.102.AD) - OIL PUMP & PAN (10) - ENGINE

1

JR930337

REMAN-ENG OIL PUMP

Assy

1шт.

1

JC930337

PUMP

Return Number

1шт.

2

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

4шт.

3

J921992

TUBE,25.4 mm OD x 359, 234 mm L

Oil, Tube and Screen

1шт.

4

J938157

GASKET,1.2mm Thk

Tube Mounting, Incl with 14

1шт.

5

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

3шт.

6

J915703

PAN, ENGINE OIL

Sump

1шт.

7

NSS

NOT SOLD SEPARAT

Oil Pan Gasket, Incl with 14

1шт.

8

J924147

PLUG,M18 x 1.5

Oil Drain, Magnetic

1шт.

9

10259960

SEAL,Rectangular, 18.30mm ID x 24.00mm OD x 1.50mm, Copper

Drain Plug Washer, Incl with 14

1шт.

10

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

36шт.

11

11197879

BELLEVILLE WASHER,8.4mm ID x 16mm OD x 2.2mm Thk

36шт.

12

J924148

PLUG,M22 x 1.5

Pipe

1шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

Plug

1шт.

14

A77979

GASKET KIT

Oil Pan, Incl 4, 7, 9

1шт.

15

A77490

KIT

Engine Oil Heater, Incl 16 - 18

1шт.

16

NSS

NOT SOLD SEPARAT

Heater Element, Incl with 15

1шт.

17

87105748

ELECTRIC CABLE,120V, 15A

Block Heater

1шт.

18

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

Plug

1шт.
