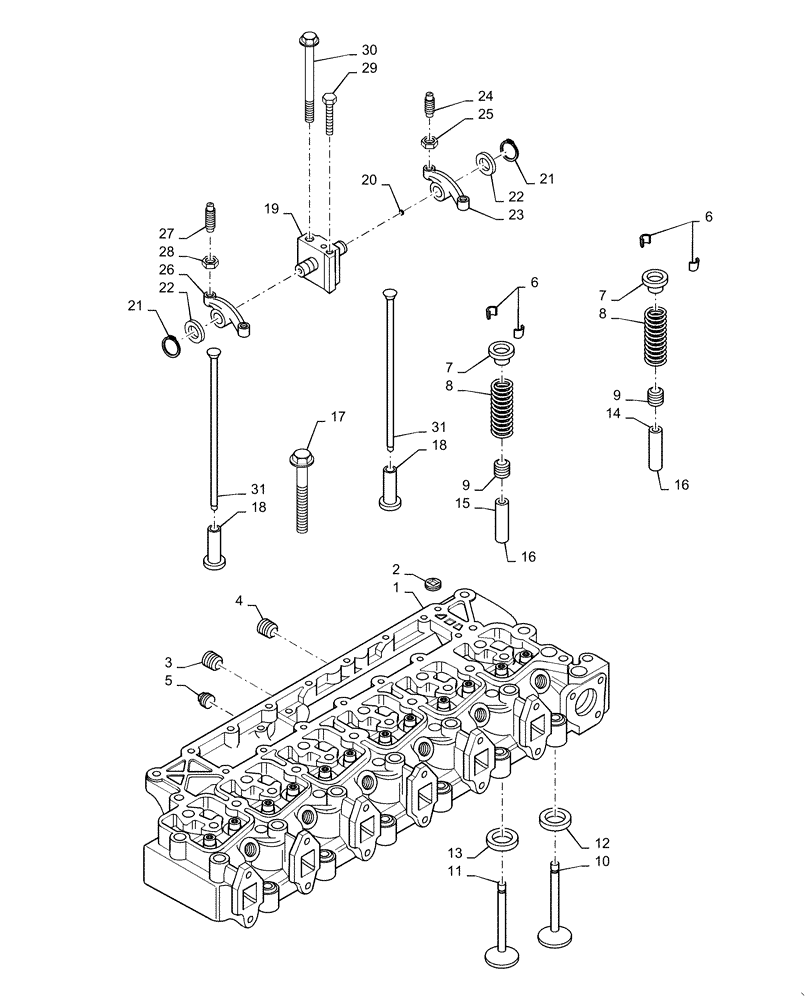

Запчасти Case IH RPZ125 (10.101.AM) - CYLINDER HEAD & RELATED PARTS (10) - ENGINE

1

J913391

HEAD (CYLINDER)

Assembly

1шт.

1

87430149

REMAN-CYLINDER HEAD

Assembly

1шт.

1

87430150

CORE-CYLINDER HEAD

Return Part Number

1шт.

2

84394317

PLUG

Expansion, 21mm OD

5шт.

3

87034671

PLUG,Hex Soc, 1/2"-14

5шт.

4

J906619

PLUG,1/8" - 27

Hex Socket, 1/8" - 27

2шт.

5

A77505

PLUG

Hex Socket 1/2" - 18

2шт.

6

CASJ900250

RETAINER

Valve Keeper

24шт.

7

J900299

RETAINER

Valve Spring

12шт.

8

J900276

VALVE SPRING

Main

12шт.

9

J901097

SEAL

Valve Seal

12шт.

10

J901117

VALVE

Intake

6шт.

11

J901607

VALVE

Exhaust

6шт.

12

J906854

SEAT, VALVE

Intake

6шт.

13

J904105

SEAT, VALVE

Exhaust

6шт.

14

J904408

GUIDE

Intake Valve

6шт.

15

J904409

GUIDE

Exhaust Valve

6шт.

16

J906206

GUIDE

Intake And Exhaust Valve

12шт.

17

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

Hex Flange, M12 x 1.75 x 70mm

6шт.

17

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

Hex Flange, M12 x 1.75 x 120mm

14шт.

18

J931623

TAPPET

Valve Push Rod

12шт.

19

J922488

SUPPORT

Rocker Arm

6шт.

20

J907555

PLUG

Rocker Arm Shaft

1шт.

21

4895363

SNAP RING

Retaining, Rocker Arm

12шт.

22

J900245

WASHER

Thrust, Rocker Arm

12шт.

23

J910811

ROCKER

Intake

6шт.

24

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

1шт.

25

86509310

NUT,3/8" - 24, Gr 5

1шт.

26

J910810

ROCKER

Exhaust

6шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

1шт.

28

86509310

NUT,3/8" - 24, Gr 5

1шт.

29

Z1232960

SCREW

Hex M8 x 1.25 x 75mm

6шт.

30

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

Hex Flange M12 x 1.75 x 180mm

6шт.

31

J284377

PUSH ROD

Rocker Arm

12шт.
