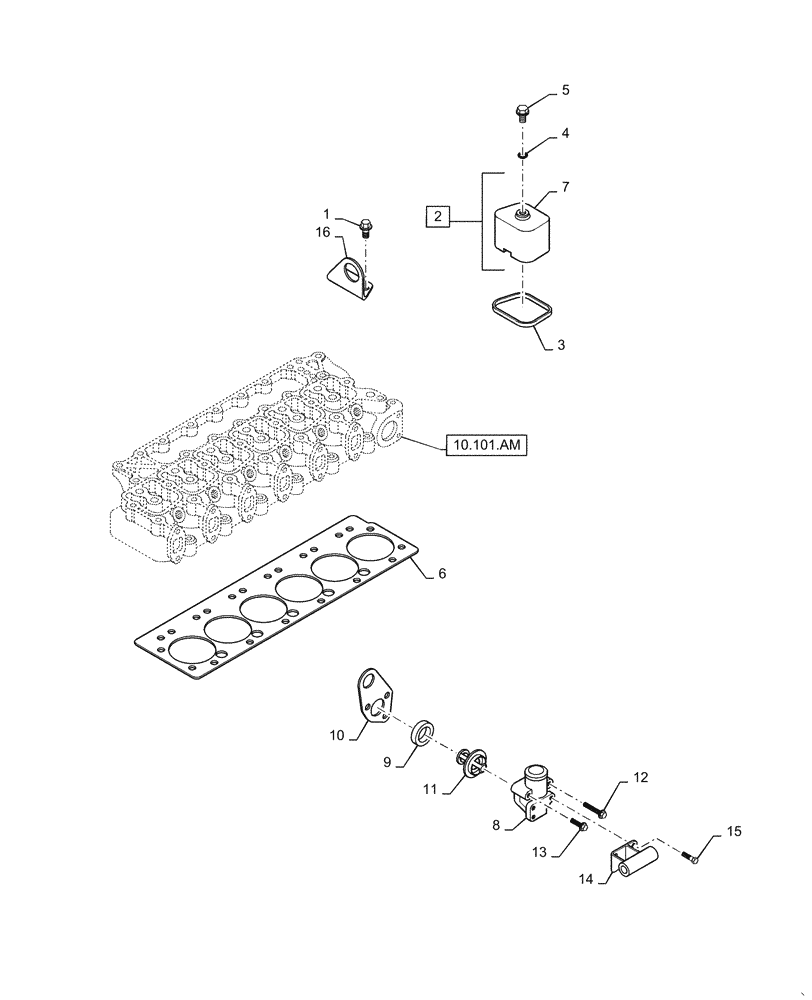

Запчасти Case IH RPZ125 (10.101.AA[01]) - CYLINDER HEAD GASKET (10) - ENGINE

1

87015752

BOLT,Hex, M12 x 25mm, Cl 8.8, Full Thd

2шт.

2

J928404

COVER

Rocker, Incl 7

6шт.

3

2852033

GASKET,7mm Thk

Rocker Cover

6шт.

4

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

Cover Bolt

6шт.

5

J907049

BOLT,Hex

Special, M8 x 1.25 x 25mm

6шт.

6

J283335

GASKET,2.32mm Thk

Head, Standard (1 Notch)

1шт.

6

J283337

GASKET,2.24mm Thk

Head, Oversize (.23mm Thicker - 2 Notches)

1шт.

6

J283339

GASKET

Head, Oversize (.51mm Thicker - 3 Notches)

1шт.

7

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

Incl with 2

6шт.

8

J285102

HOUSING

Thermostat

1шт.

9

2852154

GASKET,50mm ID x 59.25mm OD x 16.23mm Thk

Housing

1шт.

10

J903757

BRACKET

Front Lifting

1шт.

11

47616763

THERMOSTAT

Coolant

1шт.

12

86624974

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

2шт.

13

86624966

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

1шт.

14

J287096

SUPPORT

Alternator Mounting

1шт.

15

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

16

J908118

BRACKET

Rear Lifting

1шт.
