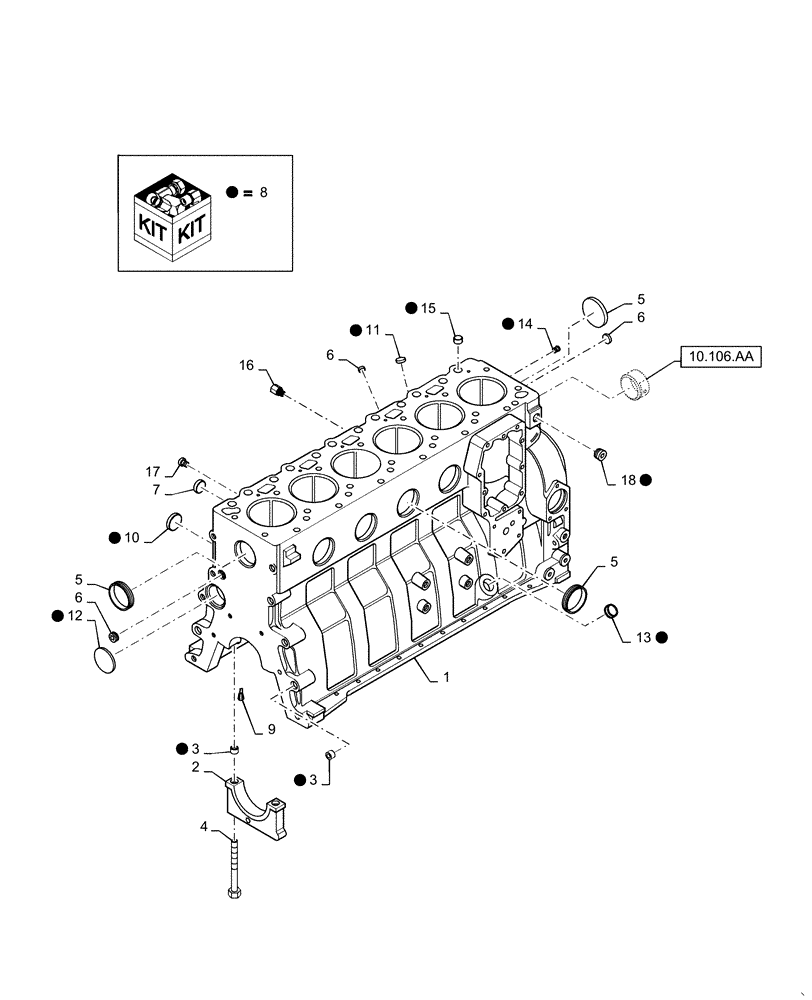

Запчасти Case IH RPZ125 (10.001.AD[02]) - CYLINDER BLOCK (10) - ENGINE

1

1989096C3R

REMAN-BASIC ENGINE

Block

1шт.

1

1989096C3C

CORE-BASIC ENGINE

Return Part Number

1шт.

1

JR933183

REMAN-SHORT ENGINE

Block Assy

1шт.

1

JC933183

CORE-SHORT ENGINE

Return Part Number

1шт.

2

J900967

BEARING CAP

Main

7шт.

3

J900068

BEARING WASHER

Dowel Ring, 18mm OD, Incl with 8

14шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

Bearing Cap, Special

14шт.

5

J900965

PLUG

Expansion, 58mm OD

6шт.

6

J900956

PLUG

Expansion, 18mm OD

3шт.

7

A77539

PLUG

Expansion, 26mm OD

4шт.

8

84301646

ENGINE OVERHAUL KIT

Cylinder Block Hardware, Incl 3, 10 - 15, 18

1шт.

9

J901020

NOZZLE CAP

Piston Cooling

6шт.

10

J900958

PLUG

Expansion, 32mm OD, Incl with 8

1шт.

11

J900955

PLUG

Expansion, 10mm OD, Incl with 8

2шт.

12

J900687

PLUG

Expansion (Welch), 60mm OD, Incl with 8

1шт.

13

A77439

PLUG

Expansion, .886mm OD, Incl with 8

1шт.

14

J900257

PIN,10.01mm OD x 16mm L

Locating Dowel, Incl with 8

2шт.

15

J902343

DOWEL

Ring, 16mm OD, Incl with 8

2шт.

16

250838A2

HYD CONNECTOR

Hydraulic Connector

1шт.

17

J906619

PLUG,1/8" - 27

Hex Socket Pipe, 1/8" - 27

2шт.

18

A77429

PLUG

Hex Socket Pipe, 1/2" - 14

1шт.
