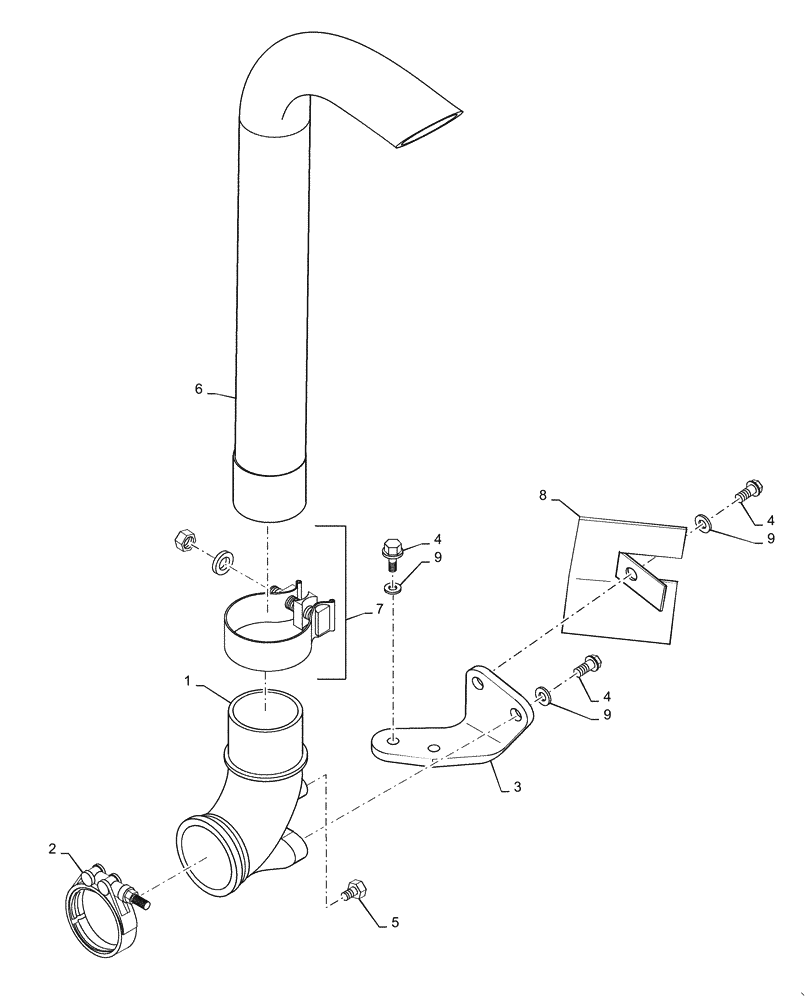

Запчасти Case IH RP85 (10.254.AD[01]) - EXHAUST SYSTEM - RP85 AND RP110 UNITS (10) - ENGINE

1

87416402

ELBOW

Turbocharger Exhaust

1шт.

2

A170467

CLAMP,72mm ID

Incl Hardware

1шт.

3

J931020

BRACE

Support

1шт.

4

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

5

9576801

PLUG,1/4" - 18 NPT

1шт.

6

87444549

EXHAUST SYSTEM PIPE

Exhaust, Curved, 3 in ID

1шт.

7

190981A1

CLAMP,76.2mm ID

Band, Incl Hardware

1шт.

8

J934100

SHIELD

Heat

1шт.

9

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.
