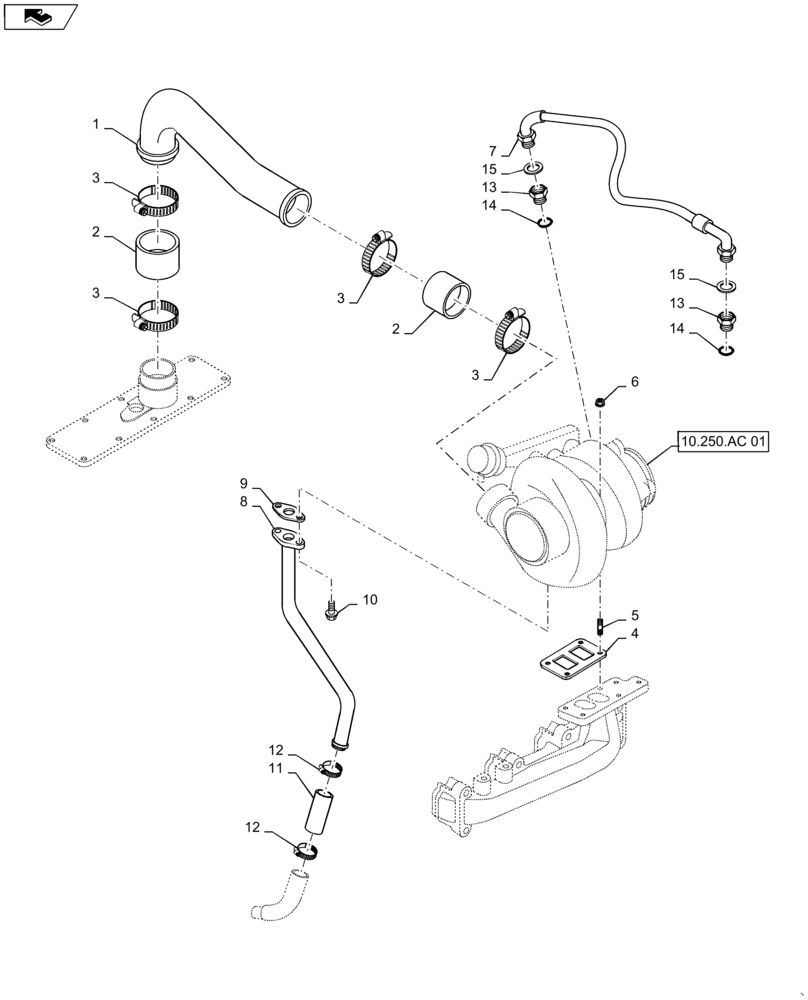

Запчасти Case IH RP85 (10.250.AE[01]) - TURBOCHARGER & RELATED PARTS (10) - ENGINE

1

J931811

TUBE,50.8 mm OD x 291.87 mm L

Crossover

1шт.

2

87439340

HOSE,50.00 mm ID x 80.00 mm

Air Intake

2шт.

3

86625019

HOSE CLAMP,44mm - 67mm

4шт.

4

J919369

GASKET,0.5mm Thk

Turbocharger to Manifold

1шт.

5

J818823

STUD

Turbocharger Mounting

1шт.

6

4899086

FLANGE NUT,Hex, M10 x 1.5

10mm x 1.5

4шт.

7

J913759

HOSE

Turbocharger Oil Supply

1шт.

8

J934064

TUBE,22.22 mm OD x 393, 131 mm L

Turbocharger Drain

1шт.

9

J937706

GASKET,0.79mm Thk

Turbo Oil Drain Tube

1шт.

10

86511479

BOLT,Hex Flg, M8 x 20mm

2шт.

11

J286499

HOSE

76 mm Turbocharger Oil Drain

1шт.

12

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

2шт.

13

J919687

HYD CONNECTOR

Connect Oil Supply to Turbo

2шт.

14

14453080

O-RING,0.426" ID x 0.07"

1шт.

15

86637735

SEAL,9.53mm ID x 13.97mm OD

Flare, Copper, 3/8 Inch OD

2шт.
