(10.101.AA[02]) - GASKET KIT

Запчасти Case IH RP85 (10.101.AA[02]) - GASKET KIT (10) - ENGINE

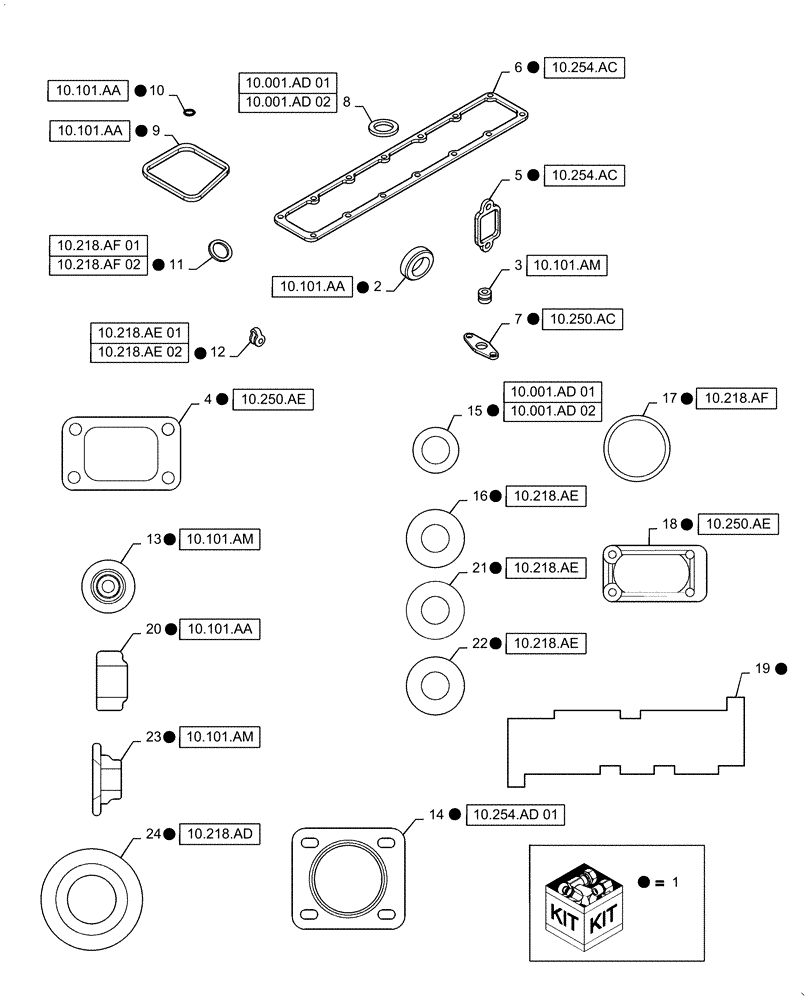

Схема запчастей Case IH RP85 - (10.101.AA[02]) - GASKET KIT (10) - ENGINE
4
1
8
10.101.aa
10.218.af 02
1
1
1
10.254.ac
10.101.am
6
19
10.250.ae
10.001.ad 02
1
21
10.218.ae 02
10.101.am
10.001.ad 02
10.101.am
1
1
17
10.218.ae
16
10.101.aa
23
1
10.218.ae
1
1
10.218.ad
13
12
2
10.254.ad 01
10.218.ae 01
1
1
1
3
1
10.218.ae
11
24
18
10.001.ad 01
14
22
15
10.001.ad 01
1
1
1
1
10.218.af
1
10.250.ae
20
9
10
10.250.ac
10.254.ac
5
10.101.aa
1
1
7
10.101.aa
1
1
10.218.af 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87434406

GASKET

Kit, Valve Grind, Incl 2, 4 - 7, 9 - 24, Must Order Cylinder Head Gasket Separately

1шт.

2

2852154

GASKET,50mm ID x 59.25mm OD x 16.23mm Thk

Thermostat, Incl with 1

1шт.

3

J921640

SEAL

Valve

8шт.

4

J919369

GASKET,0.5mm Thk

Turbocharger to Manifold, Incl with 1

1шт.

5

J927154

GASKET,0.38mm Thk

Exhaust Manifold, Incl with 1

4шт.

6

J938153

MANIFOLD GASKET,0.8mm Thk

Intake, Incl with 1

1шт.

7

J937706AM

GASKET

Oil Drain Tube, Incl with 1

1шт.

8

J902363AM

SEALING RING

Oil Filler Cap

1шт.

9

2852033

GASKET,7mm Thk

Rocker Cover, Incl with 1

4шт.

10

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

Seal, Incl with 1

4шт.

11

J900808

SEAL

Injector, Incl with 1

4шт.

12

J903380

SEAL

Connector, Incl with 1

4шт.

13

87433962

SEAL

Valve Stem, Incl with 1

8шт.

14

J912220

GASKET,0.4mm Thk

Exhaust Pipe, Incl with 1

1шт.

15

J936876

SEALING RING,30mm ID x 48mm OD x 2.8mm Thk

Incl with 1

1шт.

16

J937142

SEAL,7mm ID x 15mm OD x 1.5mm Thk

Injector Tip, 1.5mm, Incl with 1

4шт.

17

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

Ring, Incl with 1

4шт.

18

J914856

GASKET,1.02mm Thk

Air Crossover Connection, Incl with 1

1шт.

19

87404692

GAUGE

Cylinder Head Bolt Length, Incl with 1

1шт.

20

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

Isolator, Incl with 1

4шт.

21

J923261

WASHER,7.2mm ID x 15mm OD x 2.5mm Thk

Seal, Injector Tip, 2.5mm, Incl with 1

4шт.

22

J930324

SEAL

Injector Tip, 0.5mm, Incl with 1

4шт.

23

87433959

RETAINER

Valve Spring, Incl with 1

8шт.

24

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

Sealing, Incl with 1

2шт.
