Запчасти Case IH RP85 (10.001.AK) - FRAME, RADIATOR SUPPORT AND ENGINE MOUNTS (10) - ENGINE

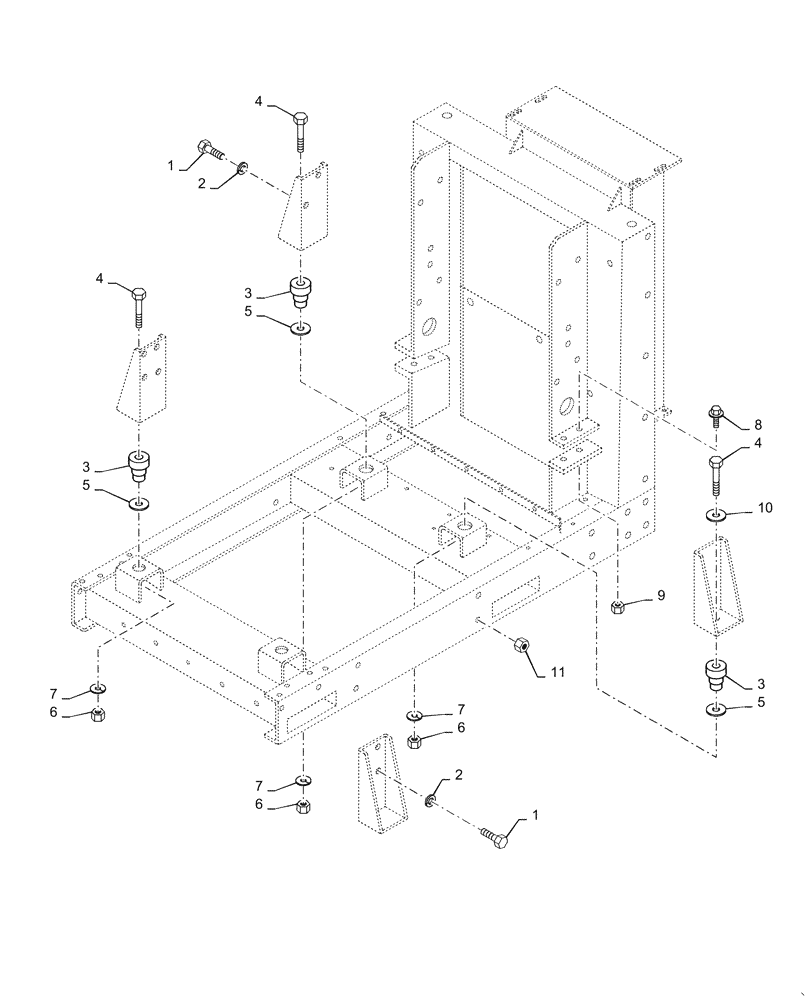

Схема запчастей Case IH RP85 - (10.001.AK) - FRAME, RADIATOR SUPPORT AND ENGINE MOUNTS (10) - ENGINE
4
5
10
1
6
6
11
4
4
7
1
2
3
9
3
7
6
3
5
7
2
8
5

Артикул

Название

Примечание

Количество

1

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

12шт.

2

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

12шт.

3

A141452

SHOCK ABSORBER

Rubber Isolator, Engine

4шт.

4

86977740

BOLT,Hex, 5/8" - 11 x 4", Gr 5

4шт.

5

CASD35009

WASHER,16.67mm ID x 63.5mm OD

Flat, Special

4шт.

6

86625068

NUT,5/8"-11, G8

4шт.

7

86729275

LOCK WASHER,5/8 0.634 CST ZND

4шт.

8

9706726

BOLT,Hex Flg, 3/8" - 16 x 1"

4шт.

9

247780

SERRATED NUT,Flg, USR, 3/8"-16

4шт.

10

86632590

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

4шт.

11

87441708

NUT

Nutsert

35шт.

Выбрано товаров: 11
