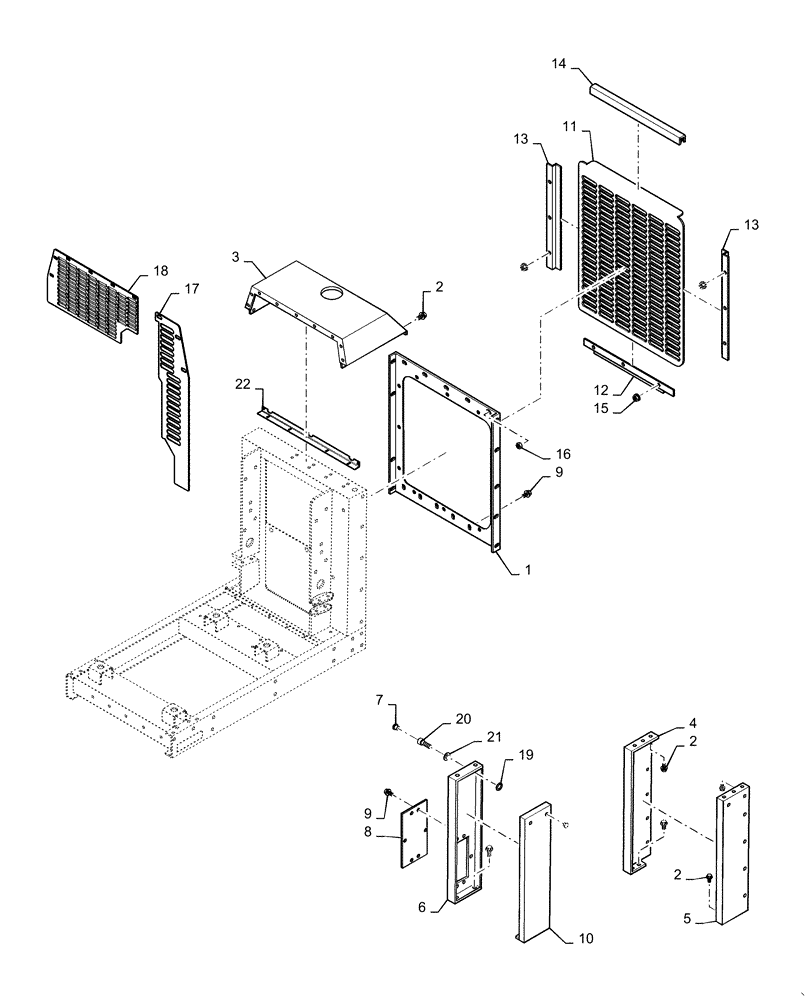

Запчасти Case IH RP65 (90.100.AB) - GRILLE, HOOD & PANELS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47613268

PANEL

1шт.

2

523292

BOLT,1/4" - 20 x 1.03" OAL

48шт.

3

277877A1

COVER

Front, Upper

1шт.

4

281480A1

COVER

Side, Front, LH

1шт.

5

281481A1

COVER

Side, Front, RH

1шт.

6

240698A1

PANEL

Side, LH, Removable

1шт.

7

47613349

KNOB

Plastic Panel

4шт.

8

102321A1

PANEL

Access

1шт.

9

121-143

FLANGE BOLT,Hex Serr, #10" - 32 x 1/2"

15шт.

10

1347658C1

PANEL

Side, RH, Removable

1шт.

11

47613282

GRILLE

Screen

1шт.

12

47613300

BRACKET

Grille Lower

1шт.

13

47613333

BRACKET

Grille Side

2шт.

14

F42827

TRIM,2946.4mm L

Cut to Length, 116 IN

1шт.

15

20332

LOCK NUT,#10-32, GB

9шт.

16

87441708

NUT

1/4 - 20 - 165 Nutsert

21шт.

17

47673452

GUARD

Fan, RH

1шт.

17

47613347

GUARD

Fan, RH

1шт.

18

47613348

GUARD

Fan, LH

1шт.

19

86625060

PUSH-ON NUT,Self, Threading, 1/4"

4шт.

20

86555967

HEX SOC SCREW,1/4" - 20 x 1 5/8"

4шт.

21

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

6шт.

22

47710541

BRACKET

Lower Radiator Support

1шт.
