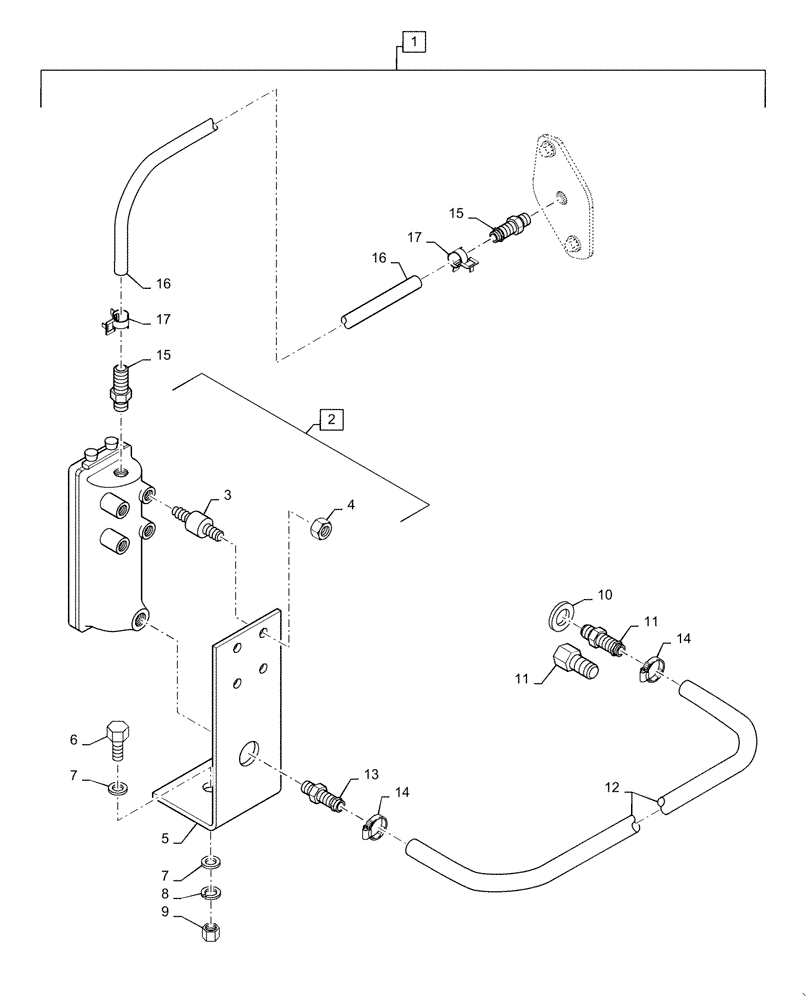

Запчасти Case IH RP65 (55.201.AI) - LOW OIL SHUTDOWN (55) - ELECTRICAL SYSTEMS

1

1347738C1

ATTACHMENT

Kit, Low Oil Shutdown, Incl 2-17

1шт.

2

1347701C1

SWITCH ASSY

Oil Level, High/Low, Incl 3 - 4

1шт.

3

251203A1

MOUNT

Shock, Incl Hardware

4шт.

4

86562216

NUT,Keps, w/LW,1/4"-20

Hex, NC

4шт.

5

1347702C1

BRACKET

Mounting, Switch

1шт.

6

9670285

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

1шт.

7

86624144

WASHER,0.41" ID x 0.75" OD x 0.12" Thk

Flat

2шт.

8

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

9

280136

NUT,3/8"-16, G8

Hex

1шт.

10

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

11

101906A1

FITTING

M22 - 1.5 Male w/ 5/8 IN Barb

1шт.

11

87448295

END FITTING

3/4 - 16 Female w/ 5/8 IN Barb

1шт.

12

283983A1

HOSE,45.00"

953 mm (37-1/2) Long, cut from 47579004 Bulk Hose, Oil Gauge Supply

1шт.

47579004, Hose - Bulk, 16 (5/8) ID x 15240 mm (600 IN) Long

1шт.

13

86010532

FITTING,5/8" Hose X 1/2" NPTF Beaded

Straight

1шт.

14

87625624

HOSE CLAMP,14.2mm ID - 26.9mm ID, SAE #10

Adj, 9/16 - 1-1/16 IN Dia

2шт.

15

87575678

HYD CONNECTOR

Straight, 3/8 Barb End X 1/8 IN PT

2шт.

16

249999A1

HOSE

Hose - 394 mm (15-1/2 IN) Long, cut from 364357C2 Bulk Hose, Oil Gauge Vent

1шт.

364357C2, Hose - 9.52 mm (3/8) ID x 7620 mm (300") Long

1шт.

17

1348264C1

HOSE CLAMP

Spring

2шт.

18

87455568

REPAIR KIT

Glass, Not Shown

1шт.
